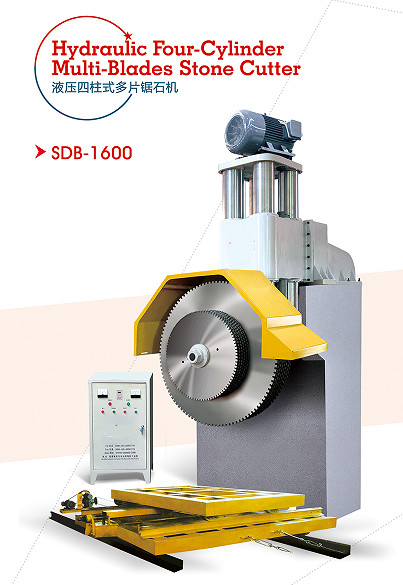

1600 Marble Stone Tile Sawing Machine

Organization Profile

Xiamen Sino Universal Machinery & Tools Co., Ltd ia a high-tech enterprise which is specialized in producing various types of stone digesting mechanical equipment. The particular main tools are double-blade stone cutter machine, single-blade stone cutter machine, hydraulic single-arm rock cutter, full-automatic constant grinding mill, multi-blade bridge-typed cutter, infrared edge trimmer, and so forth Sino Universal Stone Equipment Co., Ltd has thermostatic and filtered accurate spindle digesting and assmbling facilities and all key spare parts of products are brought in.

The products in our company have successsively passed the confirmation of national quality and environment management systems and rock machinery industry standard,

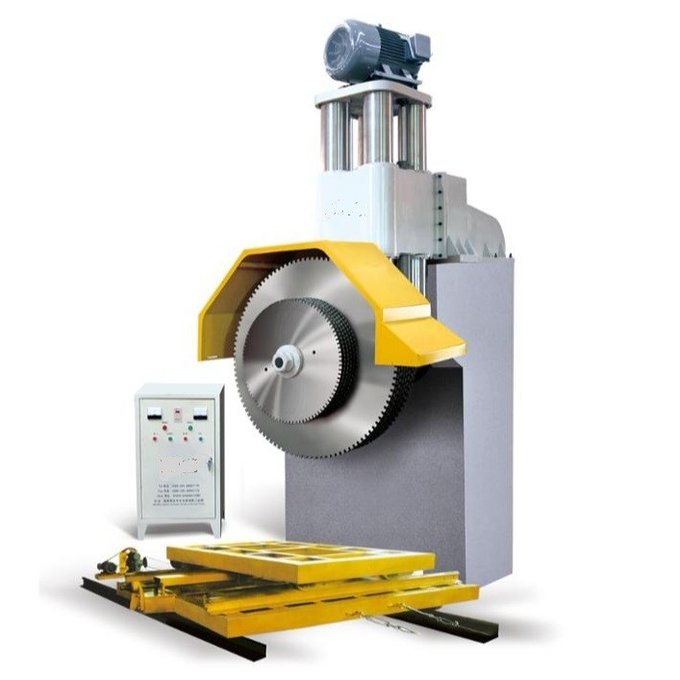

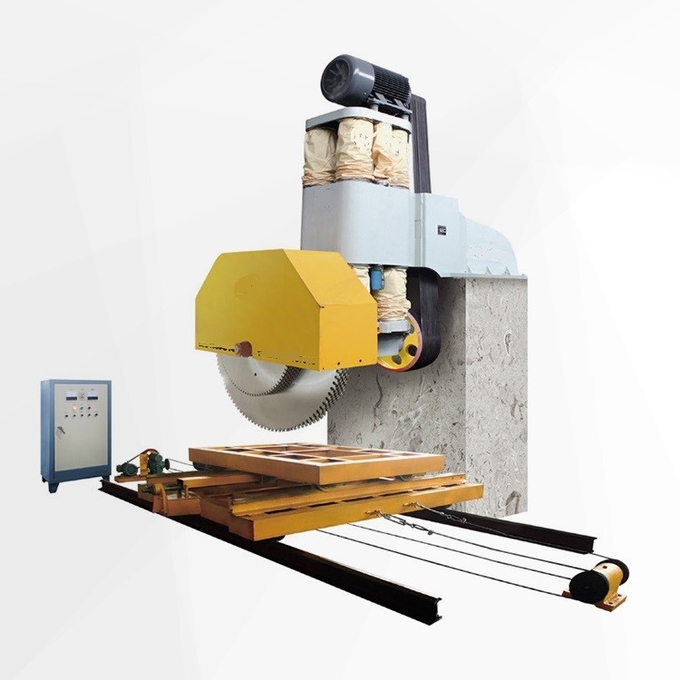

Hydraulic Stone Cutter–multi-blade stone cutting machine

DESCRIPTION

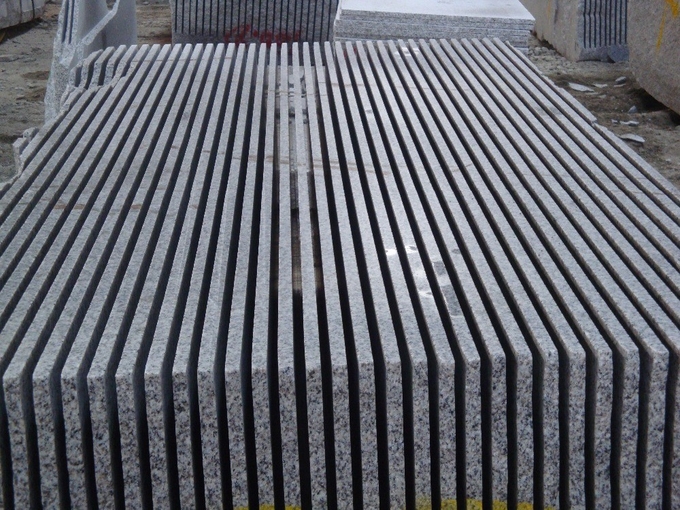

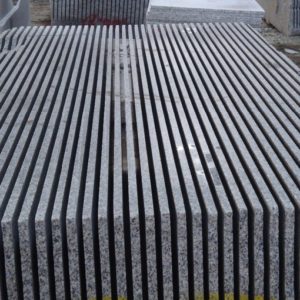

1. This particular multi-blade cutting machine cuts the prevents into slabs achieve to 20 PERSONAL COMPUTERS simultaneously

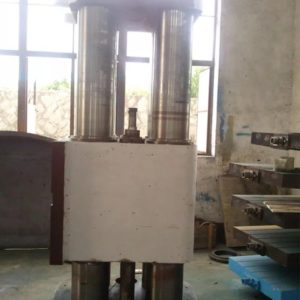

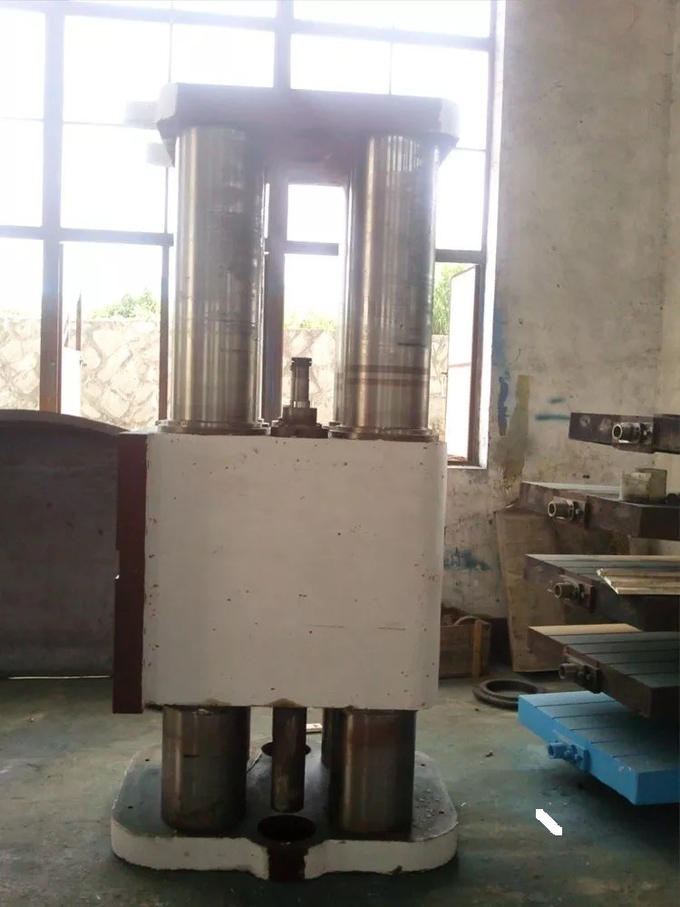

2. The particular machine adopts hydraulic system and suspension-typed structure.

3. Evaluating to the other multi-blade cutting machine without hydraulic system, They have many advantages: higher degree accuracy for cutting, higher speed of trimming, more difficult regret of inside framework, more steady and compact.

TECHNICAL DATA

Name	Unit	YDB1600D-12	YDB1600D-14	YDB1600D-16	SDB1600D-22
Diameter of blade	mm	940-1600/2200	940-1600/2200	940-1600/2200	940-2200
Quantity of blade	pc	12	14	16	22
Route of blade lift	mm	930	930	930	990
Cutting dimension	mm	3500×1300×950	3500×1400×950	3500×1500×950	3500*1600*950
Power of main-drive	kw	55	65	75	110
Total power	kw	59.4	69.4	79.4	114.4
Water consumption	m3/h	20	24	27	33
Overall dimension	mm	8600×5000×6000	8600×5000×6000	8600×5400×6000	8600*5400*6000
Approximate weigh	kg	≈7800	≈8200	≈8600	9000
