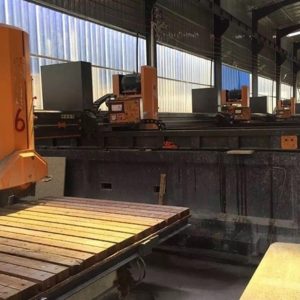

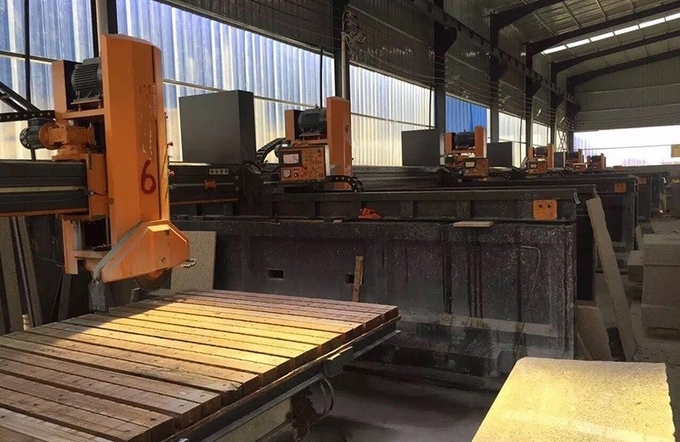

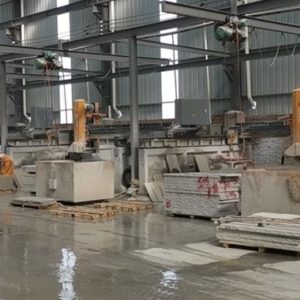

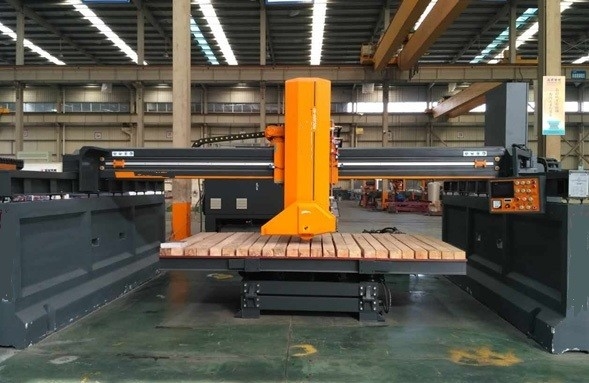

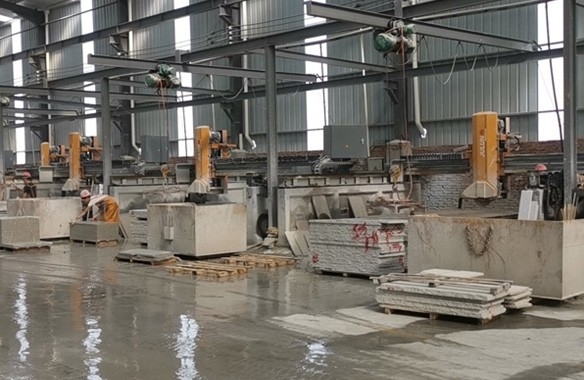

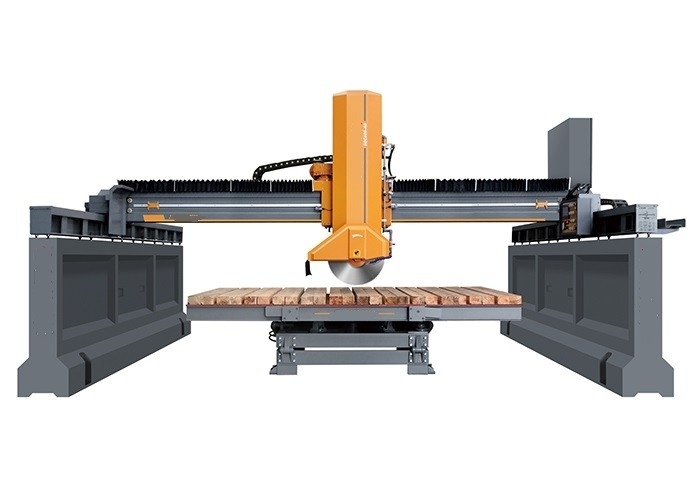

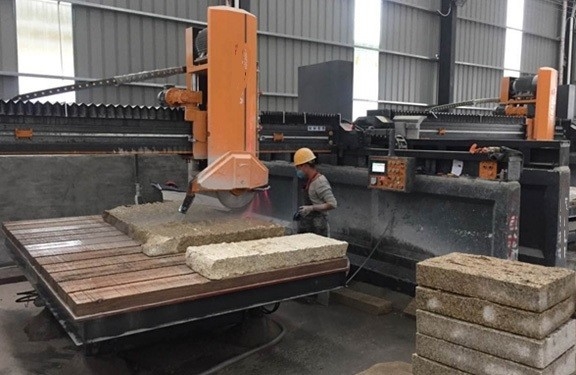

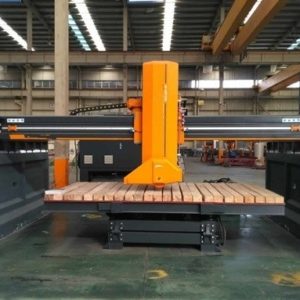

Stone Bridge Cutting Machine

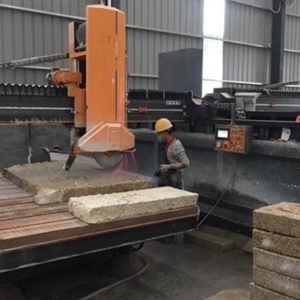

This machine is applicable for the cutting of granite and marble slabs, cement products, asbestos products, etc. It features a high processing precision in proper operating conditions. This machine is characterized by high precision, high performance and is particular applicable for the cutting of high-value and heavy-gauge slabs.

Features:

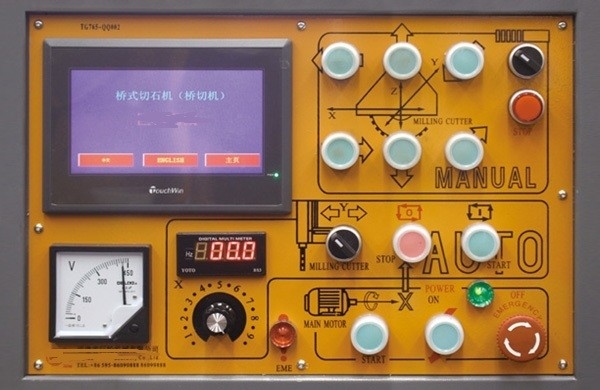

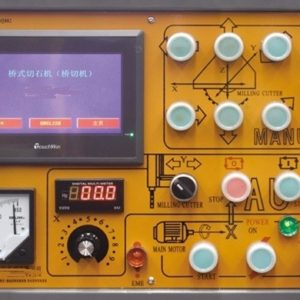

1.Controlled by PLC, operated expediently,accurately and stably
2.The support guide way adopts the imported linear guide way to make sure high precision and long life.

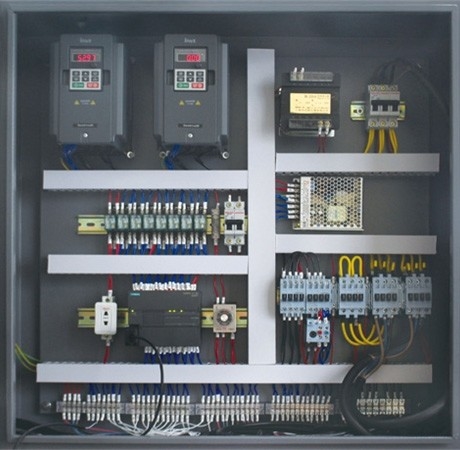

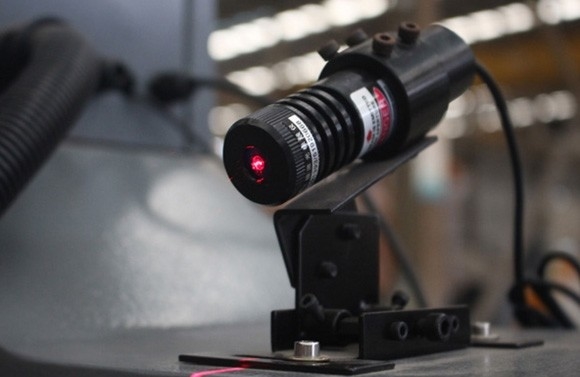

3.The main parts and components of the machine (such as frequency converter, magnetic rule, laser reticule apparatus.) are all of imported good-quality materials, thus ensuring high precision, stable performance, good adaptability as well as high reliability of the whole machine.
4.One set can be loaded in one 20 feet container.

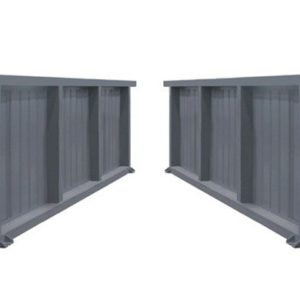

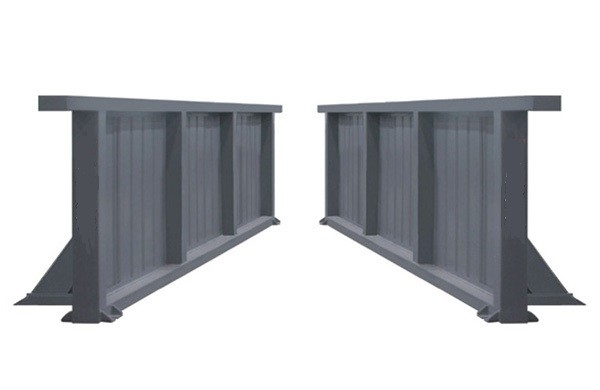

5.Common station: concrete foundation, table rotate 90 degree; We can make to order: steel structure, table rotate 0, 45, 90, 135 degree. Except that, the D type can add profiling function to order.

Technical Data

Name	Unit	MCQJ-400	MCQJ-600	MCQJ-800
Blade diameter	mm	¢350~¢400	¢400~¢600	¢600,¢800
Blade up/down stroke	mm	200	380	600
Main motor power	kw	15	18.5	18.5
Feeding motor	kw	1.5	1.5	3
Slicing motor	kw	1.1	1.1	1.1
Worktable size (Max. cutting size)	mm	3200×2000	3200×2000	3200×2000
Worktable rotation angle	°	90° or 360°	90° or 360°	90° or 360°
Worktable upturning angle	°	0°~85°	0°~85°	0°~85°
Blade tilting angle	°	no	no	45º
Dimension(L×W×H)	mm	5870×4700×2520	5870×4700×2720	6300*4700*2800
Weight	kg	6000	6000	6800
