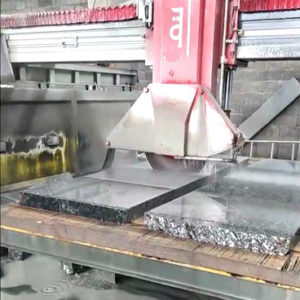

Granite Bridge Saw Machine

Features of Granite Bridge Saw Machine:

Durable: Good quality steel is used as the mechanical parts and reliable imported electric,Parts are used to guarantee high reliable & durable.

Precise: a. Crossbeam movement(Y-axis)along linear guide way with high precision.

b. Z-axis movement by lead screw.

c. Magnetic ruler is adopted for slicing measure.

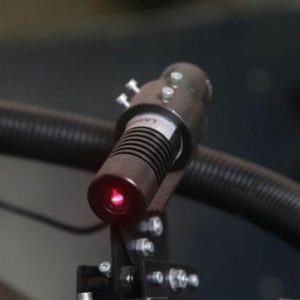

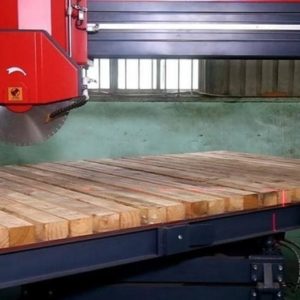

d. Laser device for accurate alignment.

Userfriendly:

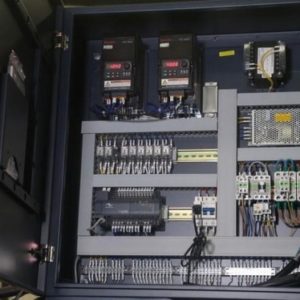

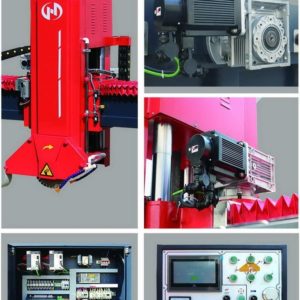

a. Touch screen control panel and 3D movement is controlled by microcomputer to realize automatic operation.

b. Both manual and automatic operation available .

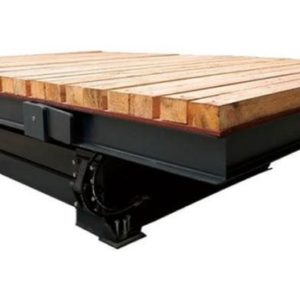

c. Workable can rotate 90o or 360O( optional).

d: Multi-functional: With optional sensor ,profiling function can be added.

Technical Parameter	MCQJ-400/600/800

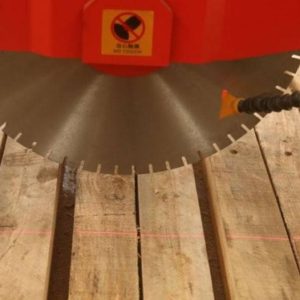

Blade diameter	Φ600-800mm(400-800mm add a VFD)
Blade up/down stroke	600mm

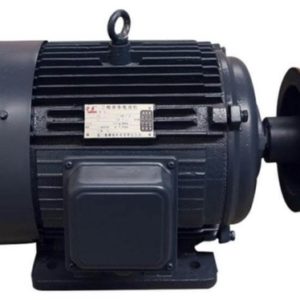

Main motor	18.5kw
Feeding motor	3kw
Slicing motor	1.1kw
Rotation angle of blade axis	0-5
Max.cutting size	3200*2000*200mm
Workbench rotating degree	0-90:45-90-135-360;1-360
Workbench tilting degree	0-85
Dimension (L*W*H)	5800*4800*3200mm
Weight	6800kg
