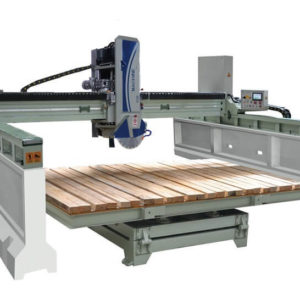

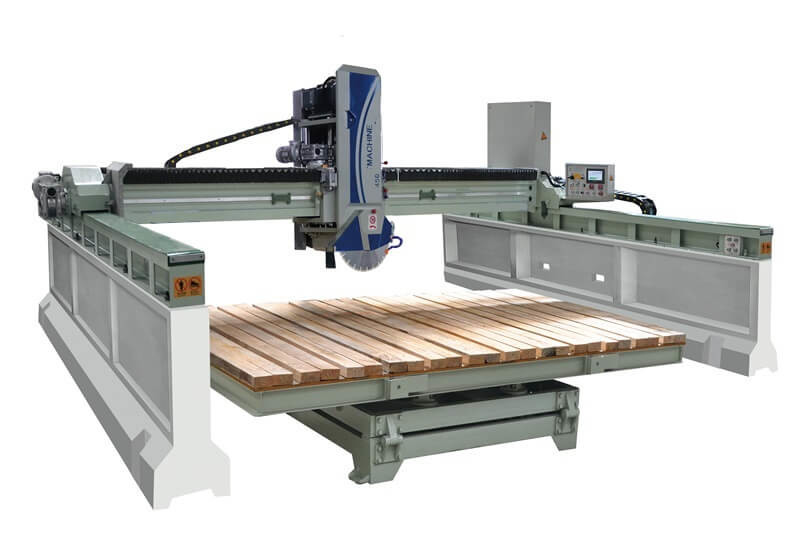

Stone Slab Cutting Machine

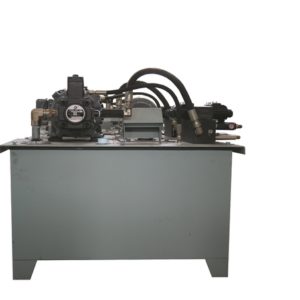

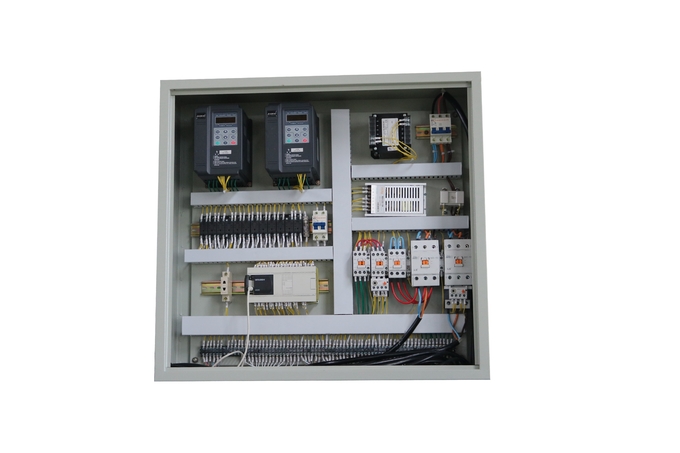

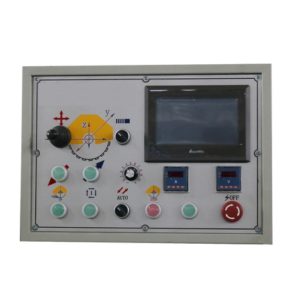

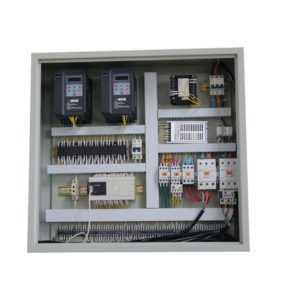

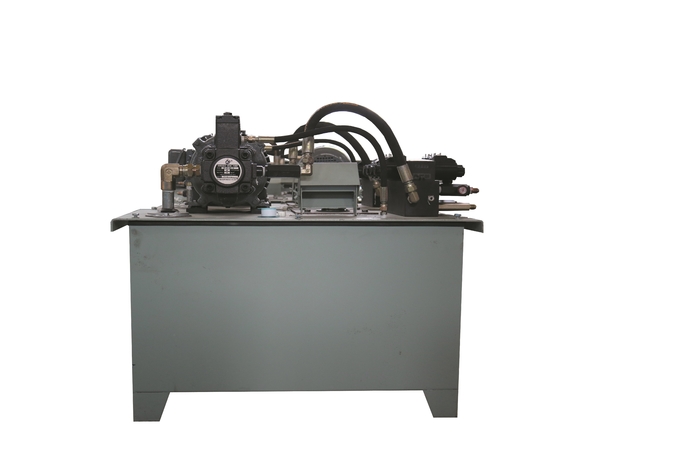

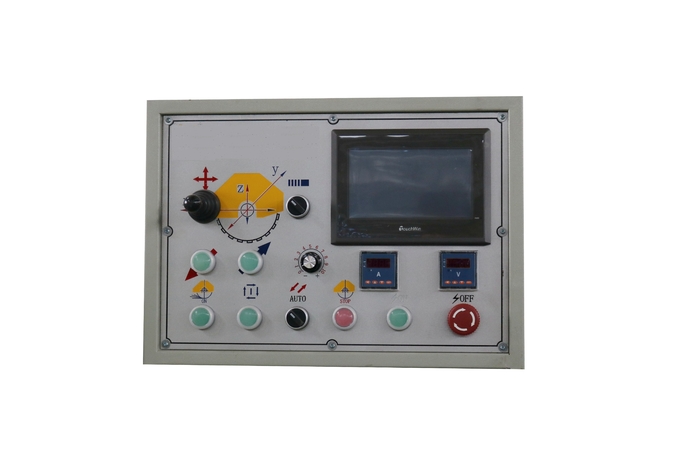

Stone slab cutting machine adopts PLC programmable control system, man-machine integration of touch screen operation interface, with high precision rotary encoder and the infrared liner, cutting left and right adopts the frequency converter to control the speed, speed can be adjusted according to the stone material, lift up and down adopts hydraulic, the high speed moving parts adopt imported high quality spare parts, so it cutting with high efficiency, high cutting precision, high stability, easy and flexible operation etc, especially suitable for the high value of large specifications of granite, marble slabs cutting.

Inquiry Now

Stone slab cutting machine adopts PLC programmable control system, man-machine integration of touch screen operation interface, with high precision rotary encoder and the infrared liner, cutting left and right adopts the frequency converter to control the speed, speed can be adjusted according to the stone material, lift up and down adopts hydraulic, the high speed moving parts adopt imported high quality spare parts, so it cutting with high efficiency, high cutting precision, high stability, easy and flexible operation etc, especially suitable for the high value of large specifications of granite, marble slabs cutting.

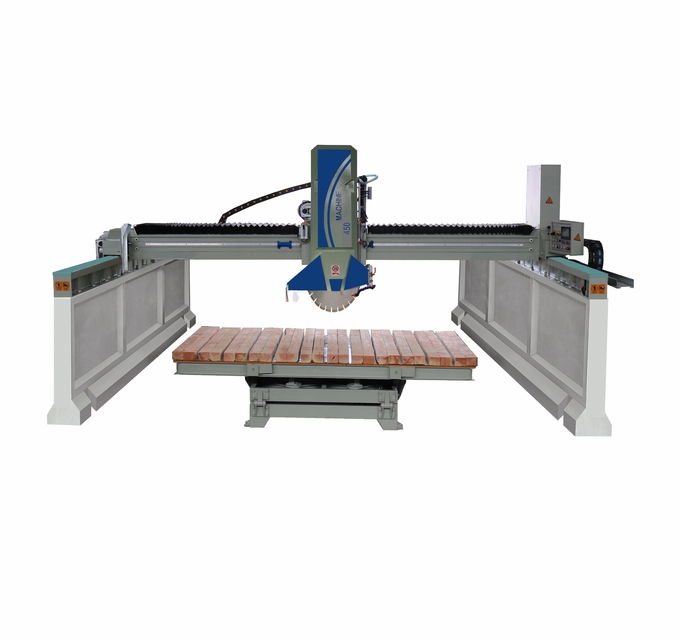

Good Stability Automatic Cutter Granite Bridge
TYPE MCFT-450
Blade diameter mm Φ350-Φ500
Max.working dimensions(LxWxH) mm 3200x3200x100
Table size(LxW) mm 3200×2000

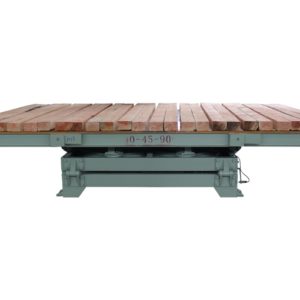

Workbench tilting degree 0°-85°

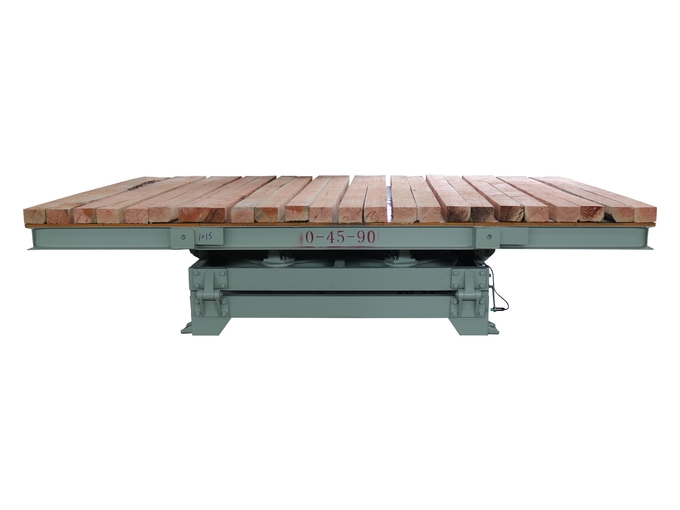

Workbench rotating degree 0°-90°+45°/0°-45°-90°-360°

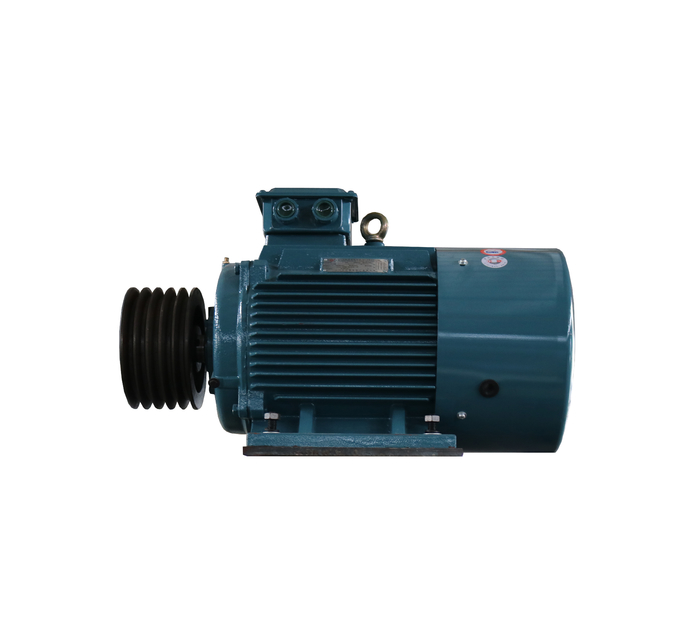

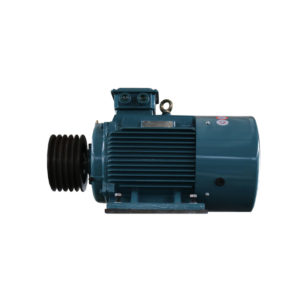

Main motor power kw 15
Gross power kw 20.2
Water consumption m3/h 3.5
Trolley dimension(LxWxH) mm 6000x5000x2600
The total weight kg 5200
