Table Stone Cutting Machine

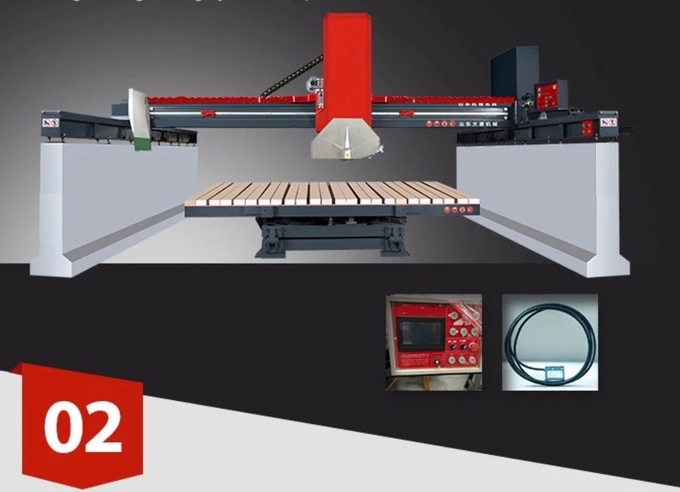

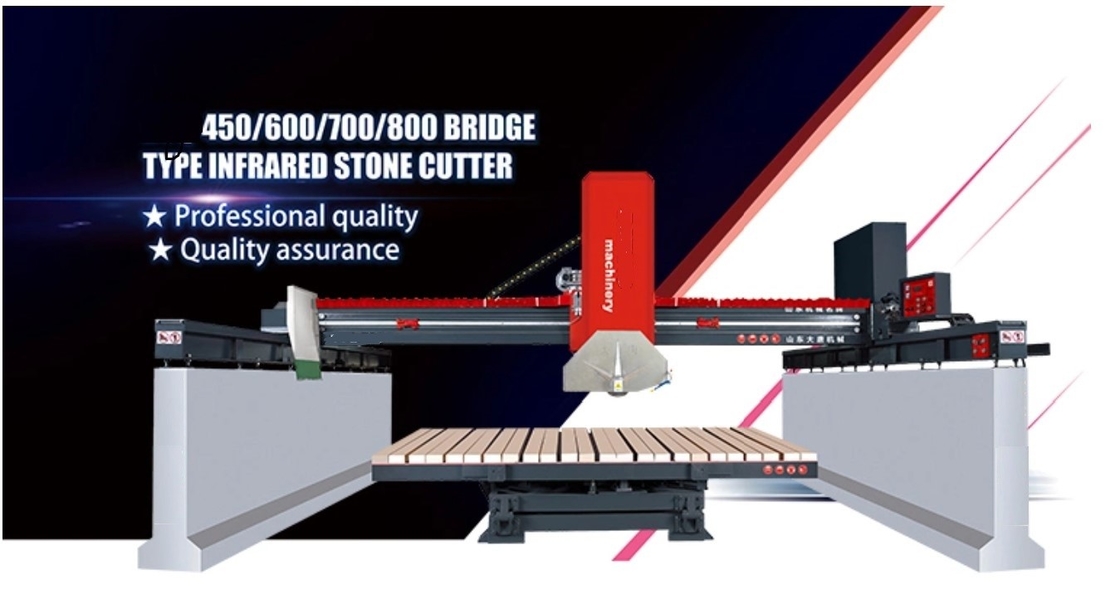

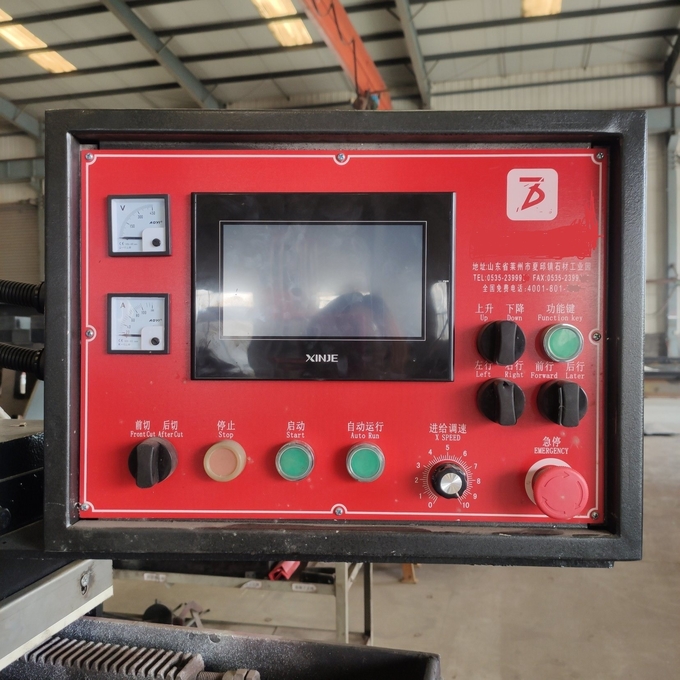

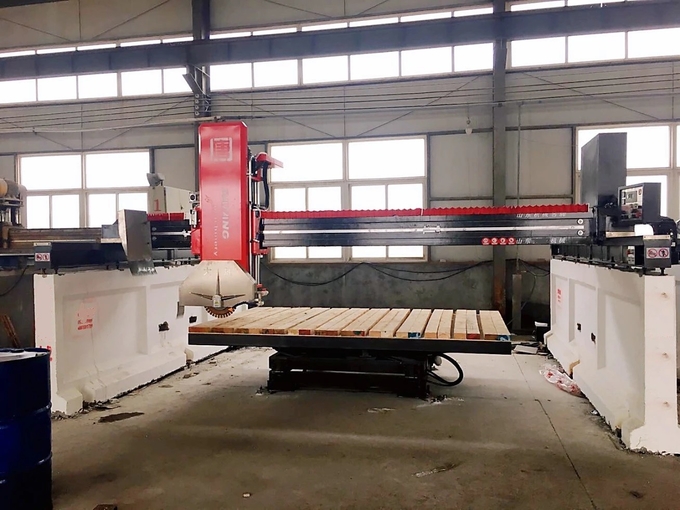

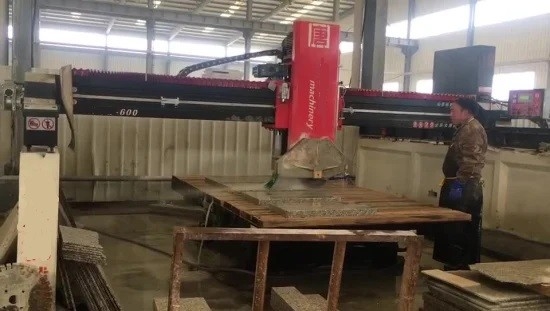

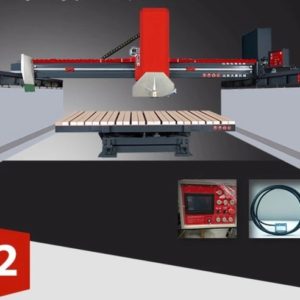

Table Stone Cutting Machine 450/600/700/800 bridge type infrared stone cutter is controlled by computer and can work automatically. Machine parts are made of high quality steel. Four guide pillars are used for lifting, The electronic parts are assembled with advanced imported components. The machine adopt PLC system, VFD for speed regulation, infrared calibration instrument, touch operating system. Computer automatic control ensures cutting accuracy. The machine is with high intelligence, high stability, high efficiency, and easy operation. It is suitable for cutting high value, large size granite and marble slabs.

Inquiry Now
Category: Tags: , ,

Table Stone Cutting Machine 450/600/700/800 bridge type infrared stone cutter is controlled by computer and can work automatically. Machine parts are made of high quality steel. Four guide pillars are used for lifting, The electronic parts are assembled with advanced imported components. The machine adopt PLC system, VFD for speed regulation, infrared calibration instrument, touch operating system. Computer automatic control ensures cutting accuracy. The machine is with high intelligence, high stability, high efficiency, and easy operation. It is suitable for cutting high value, large size granite and marble slabs.

Specifications:

Model MCQ-450 MCQ-600 MCQ-700 MCQ-800
Max. Cutting Size 3200*2000*100mm 3200*2000*175mm 3200*2000*225mm 3200*2000*275mm
Blade Size 400-450mm 400-600mm 400-700mm 400-800mm
Work Table Size 3200*2000mm 3200*2000mm 3200*2000mm 3200*2000mm

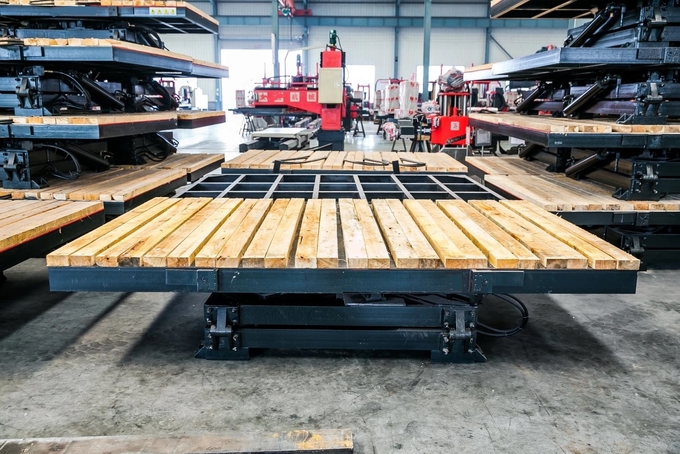

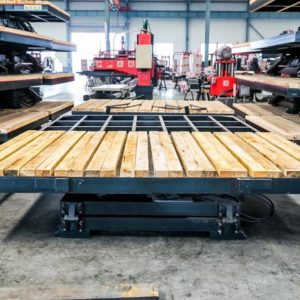

Work Table Tilting 0-85 degrees 0-85 degrees 0-85 degrees 0-85 degrees
Work Table Rotating 0-90/0-360 degrees 0-90/0-360 degrees 0-90/0-360 degrees 0-90/0-360 degrees
Main Motor Power 15kW 18.5kW 18.5kW 18.5kW
Water Consumption 3.5m3/h 3.5m3/h 3.5m3/h 3.5m3/h
Dimension 6000*4800*2600mm 6000*4800*2800mm 6000*4800*3150mm 6000*4800*3300mm
Weight 8700kg 9200kg 10500kg 11000kg
