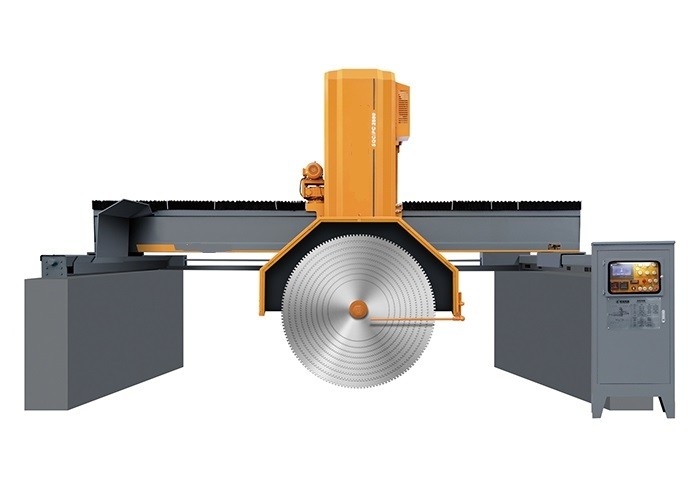

Multi Blades Block Cutting Machine

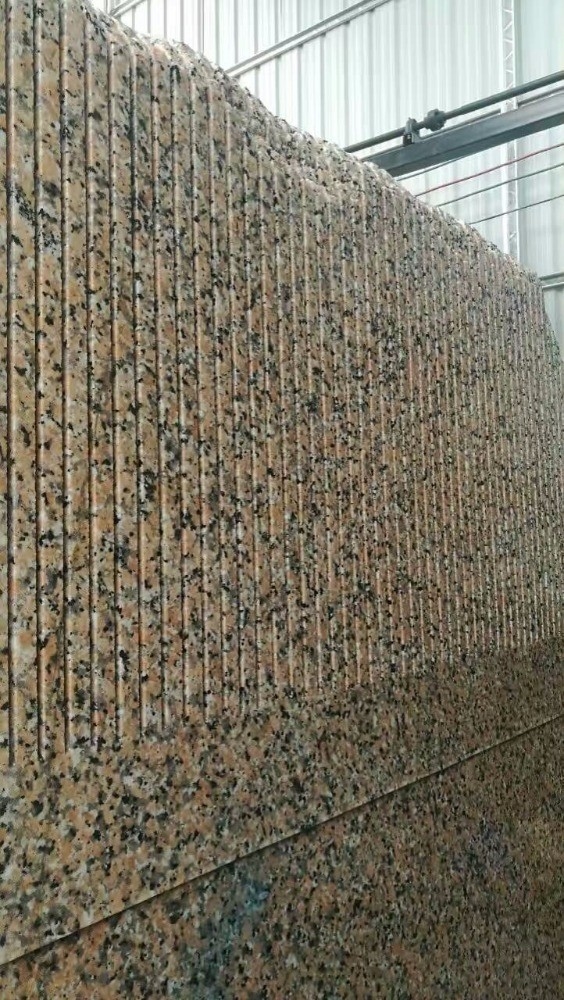

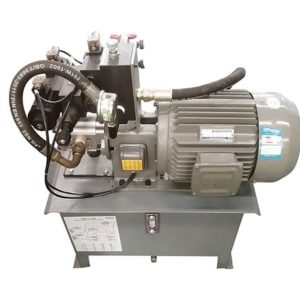

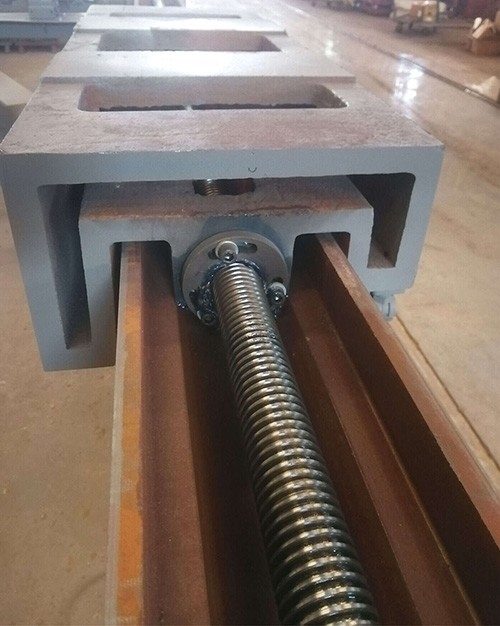

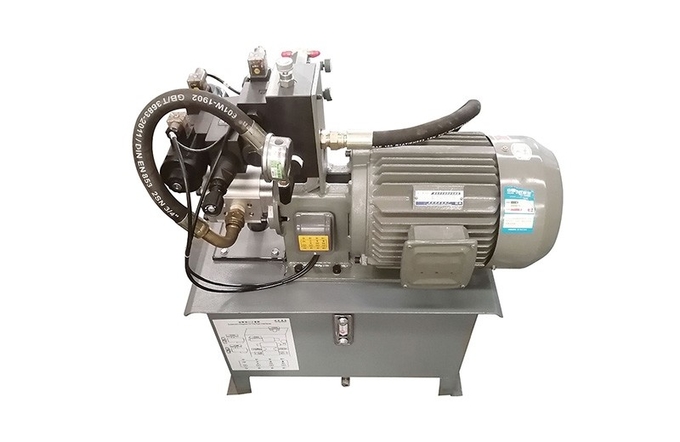

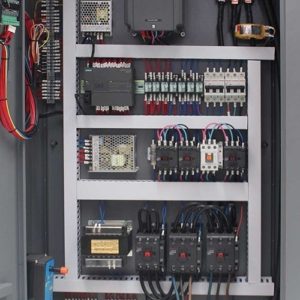

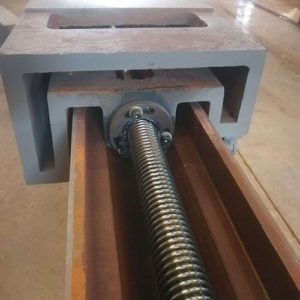

MULTI-BLADES DOUBLE HYDRAULIC BLOCK CUTTER BTC-2200/2500/2800/3000 uses inverter to control left-right feeding adjusts the speed according to the stone material. It uses hydraulic lifting system(screw lifting system*optioal), forward-backward slicing uses high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials. The block can be placed in the ground directly to save worktable and its maintenance costs. Thus the whole machine is featured as high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit specially cutting granite and marble block with high value.

Inquiry Now
Category: Tags: , ,

MULTI-BLADES DOUBLE HYDRAULIC BLOCK CUTTER BTC-2200/2500/2800/3000 uses inverter to control left-right feeding adjusts the speed according to the stone material. It uses hydraulic lifting system(screw lifting system*optioal), forward-backward slicing uses high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials. The block can be placed in the ground directly to save worktable and its maintenance costs. Thus the whole machine is featured as high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit specially cutting granite and marble block with high value.

Specifications:

Model DTQZ-2200-4D DTQZ-2600-4D DTQZ-2800-4D
Max. Blade Diameter 2200mm 2600mm 2800mm
Max. Cutting Length 3200mm 3200mm 3200mm
Max. Cutting Height 2200mm 2200mm 2200mm
Max. Cutting Depth 950mm 1150mm 1250mm
Max. Lifting Distance 1220mm 1320mm 1400mm
Water Consumption 15m3/h 15m3/h 15m3/h
Main Motor Power 37kW 45kW 55kW
Total Power 50kW 58kW 68kW
Dimension 7500*4500*6800mm 7500*4500*6800mm 7500*4500*7000mm
Weight 16000kg 16500kg 17000kg
