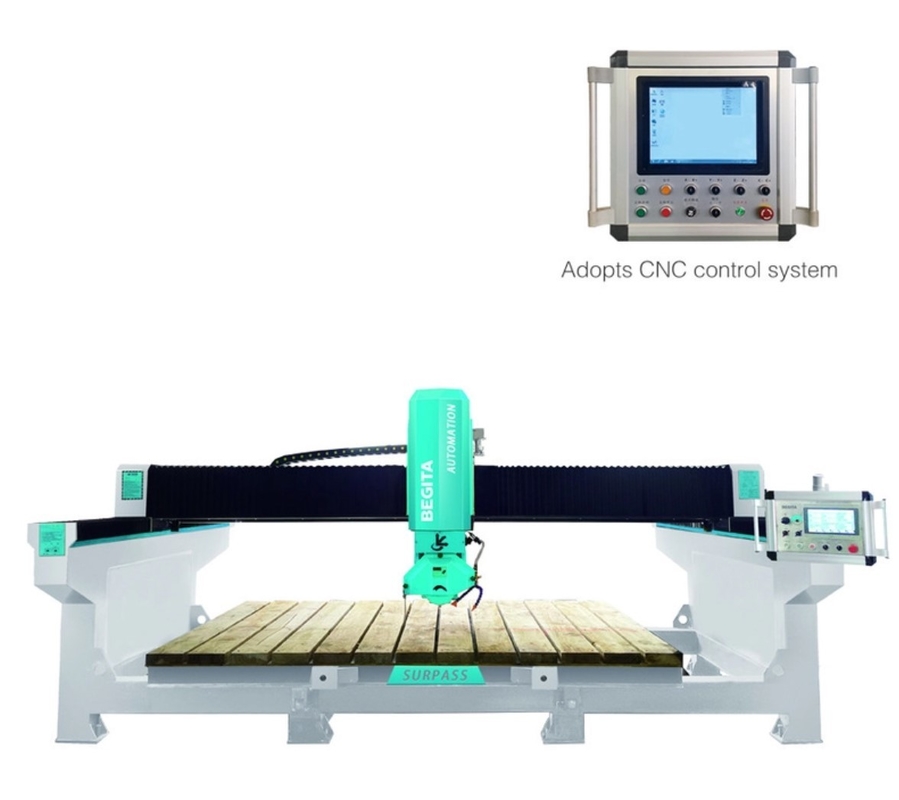

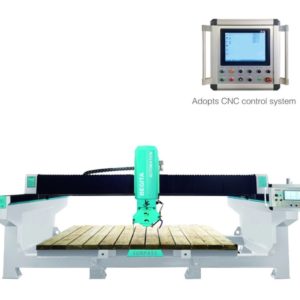

CNC Monoblock Bridge Cutting Machine

^{15kw Integrated CNC Monoblock Bridge Cutting Machine For Marble Sintered}^Stone^{Product Description}
^{ZDCM Bridge cutting machine adopts Microcomputer system, it is easy to operate. lntegrated structure makes the installation easier. The frame of the machine body is processed and formed by CNC gantry milling center at one time, using high precision linear guide sliders, grinding grade ball screws, and high-end servo systems. It greatly improves the stability, processing accuracy and production efficiency of the equipment, and reduces the failure rate. It is suitable for all kinds of large scale plate processing with high precision requirements and high value.}

Category: Stone Cutting Machine Tags: 5 Axis Stone Cutting Machine, Granite Cutting Machine, Marble Cutting Machine

Description

^{15kw Integrated CNC Monoblock Bridge Cutting Machine For Marble Sintered}^Stone^{Product Description}
^{ZDCM Bridge cutting machine adopts Microcomputer system, it is easy to operate. lntegrated structure makes the installation easier. The frame of the machine body is processed and formed by CNC gantry milling center at one time, using high precision linear guide sliders, grinding grade ball screws, and high-end servo systems. It greatly improves the stability, processing accuracy and production efficiency of the equipment, and reduces the failure rate. It is suitable for all kinds of large scale plate processing with high precision requirements and high value.}
^{Technical Parameter}

^Parameter	^Unit	^ZDCM-400-A	^ZDCM-400-B	^ZDCM-400-C
^{Blade diameter}	^mm	^φ300-φ400	^φ300-φ400	^φ300-φ400
^{Max processing size}	^mm	^3200x2000x80	^3200x2000x80	^3200x2000x80
^{Worktable size}	^mm	^3200×2000	^3200×2000	^3200×2000
^{Worktable tilting angle}	^°	^0-85°	^0-85°	^0-85°
^{Cutting head rotating angle}	^°	^0-90°	^0-360°	^0-360°
^{Cutting head chamfer rotating angle}	^°	^0-45°	^0-45°	^0-45°
^{Water consumption}	^m³/h	³	³	³
^{Main motor}	^kw	¹⁵	¹⁵	¹⁵
^{Outline dimension}	^mm	^{5000x3100x2600}	^{5000x3100x2600}	^{5000x3100x2600}
^{Gross weight}	^kg	⁶⁰⁰⁰	⁶⁰⁰⁰	⁶⁰⁰⁰
