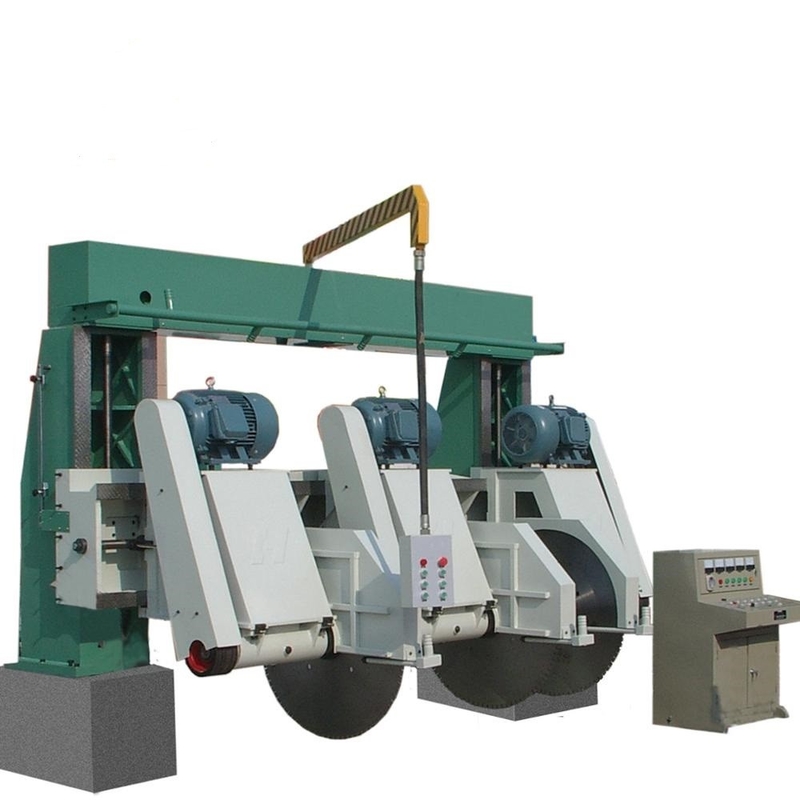

3-blade Curb Stone kerbstone Cutting Machine MLYS-3 installed max. 3pcs-D.1000mm saw blade, is applicable for cutting thick stone slab. It’s usually partnered with multi-Disk stone cutting machine HLTJ-100 for processing granite curb stones.
Main Features
1) Bridge connection, dual railway walking.
2) Equipment stablility, low maintenance rate.
3) Simple operation, cutting speedly .
4) High precision, high yield.
|
Technical Data for MLYS-3
|
|||
|
Configuration
|
Max. number of blades
|
pc
|
3
|
|
Max. diameter of blade
|
mm
|
1000
|
|
|
Working bench area
|
mm
|
1700 x 1700
|
|
|
Power of main motor
|
kw
|
37
|
|
|
Power of lifting motor
|
kw
|
1.5
|
|
|
Gross power
|
kw
|
59.25
|
|
|
Main Performance Parameters
|
Max. lifting stroke
|
mm
|
600
|
|
Workbench feeding stroke
|
mm
|
2500
|
|
|
Max.workbench feeding speed
|
mm/min
|
5920
|
|
|
Speed of blade lifting
|
mm.min
|
525
|
|
|
Appearance
|
Gross weight
|
kg
|
6000
|
|
Dimensions (L x W x H)
|
mm
|
7000 x 3800 x 2800
|
|
