Multi Blades Stone Block Cutting Machine For Granite Limestone

^{Hydraulic Bridge Cutting Machine for Medium Sized Granite Marble Blocks}

^{Product Description}

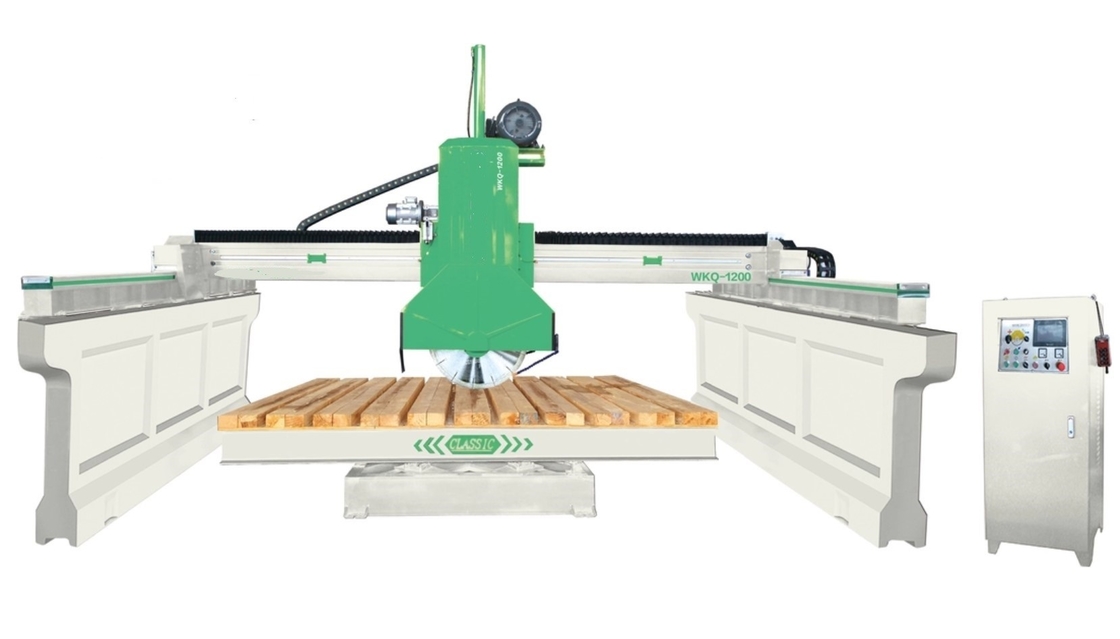

^{WKQ-1200 bridge cutting machine is designed in reasonable structure, adopting PLC system and human-machine interface. With single-cylinder sliding plate structure. It can adjust the wear space, lift up and down speed fast and stable.}

^{1. With both Chinese and English language operation and infrared device.}

^{2. Equipting with ultra-high precision rotary encoder, using inverter to control left-right feeding.}

^{3. Adjustable speed according to different stone materials,}

^{4. Using hydraulic lifting system which equiped through slide plate.}

^{5. Providing the unique side beam protection device, main spare parts adopt imported high-quality materials.}

^{All these make this machine to cut thick stone slabs in high efficiency, high stability, and very easy to operate.}

<sup>Product Features
1. Equipped with infrared device for precise cutting location.</sup>

^{2. Wide crossbeam of bridge structure for large size of slab cutting and it is made of strong cast iron to avoid distortion after long-term use.}

^{3. Guide rail on the crossbeam is in oil bath and it is protected from water and dust.}

^{4. Dustproof design of the slide track ensures the precise guide movement & long lifespan.}

^{5. Vertical movement of machine head is driven by accurate hydraulic system, and the stroke is adjustable.}

^{6. Cross movement of the machine head on the crossbeam is driven by motor equipped with OMRON rotary encoder by which the precision is guaranteed.}

^{7. The crossbeam is installed on the side beams by linear guide track that results in less friction force and provides better flexibility and reliability.}

^{8. Worktable can tilt 0-85°.}

^{9. Equipped with PANASONIC frequency transducer and PLC, programmable and fully automatic.}

^{10. Touch-sensitive operating system, friendly human-machine interface design.}

^{Technical Parameter}

Parameter	Unit	WKQ-1200
Blade diameter	mm	φ700-φ1200
Max lifting stroke	mm	760
Trolley size	mm	3000×2000
Worktable rotating angle	°	0-90°
Outline dimension	mm	6200x4800x4400
Main motor	kw	22
Gross power	kw	29
Gross weight	kg	6800
Water consumption	m³/h	4
