Stone Saw Cutter Machine

Stone Saw Cutter Machine
One stop shopping, We produces mining equipment, stone processing equipment, to provide customers with a complete stone processing plant design, provide complete after-sales service.

Feature of stone saw cutter machine:

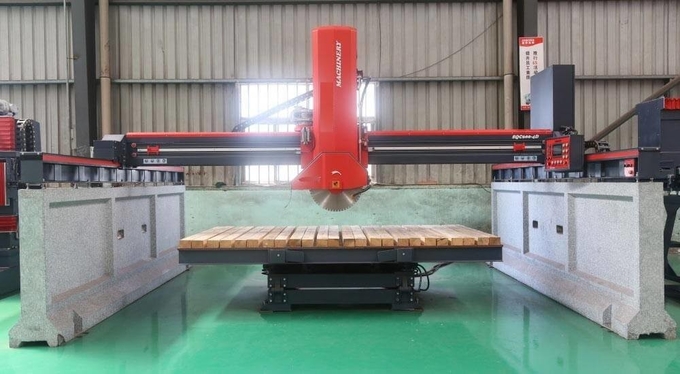

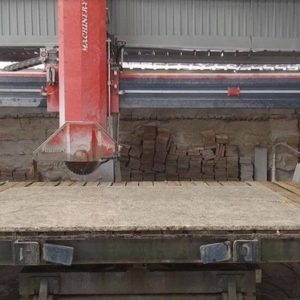

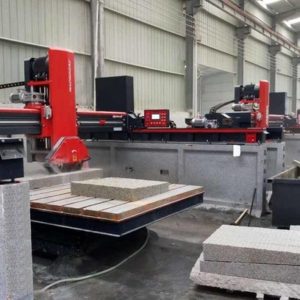

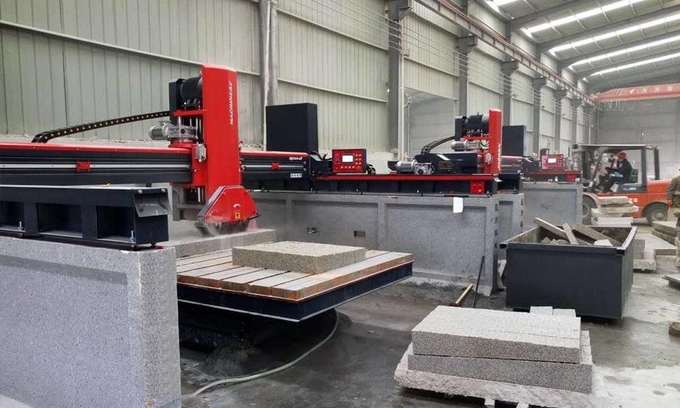

1. The bridge type infrared stone cutter is operated by computer so that it work automatically.
2. The parts and accessories of which are made of high quality steel.
3. The lifting moving driving by four lead pillars.
4. The electronic controling cabinet compries.The machine adopt PLC controlling system,variable-frequency drive(VFD) which can provide fine speed regulation,infrared checking and calibration instrument,touching operating system.
5. The computer automatic control ensures the accuracy of cutting;So,the machine endowed with high steadiness,effective and simplein operating characters.
6. Long working life, very durable.
7. Small noise, working well.

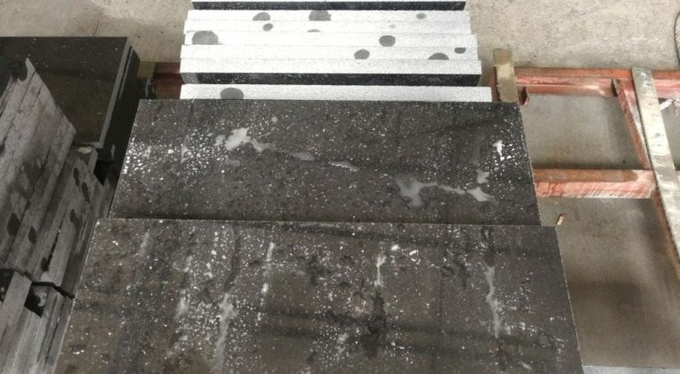

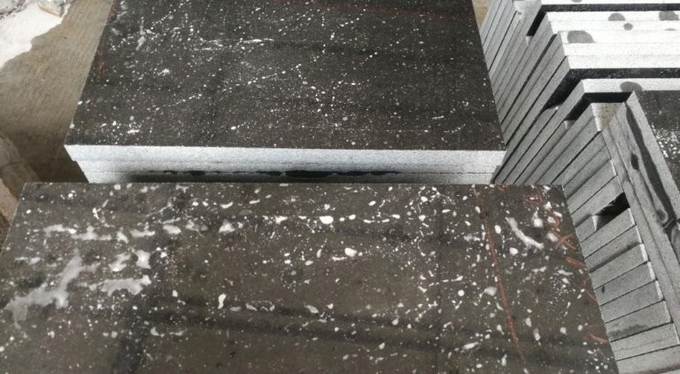

8. Better slab quantity and precision.
9. Large capacity, save energy and cost.
10. Equipped with Schneider frequency transducer and OMROM PLC, programmable and fully automatic.

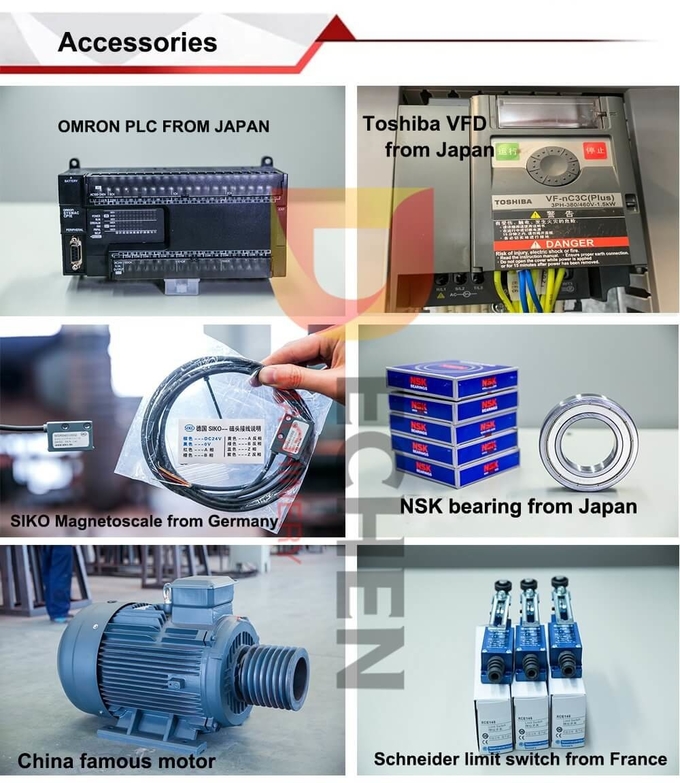

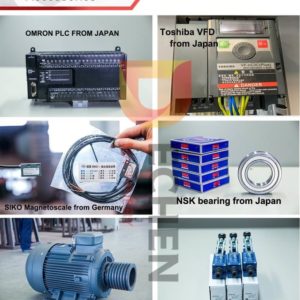

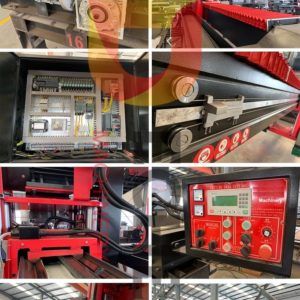

machine marble Accessiories

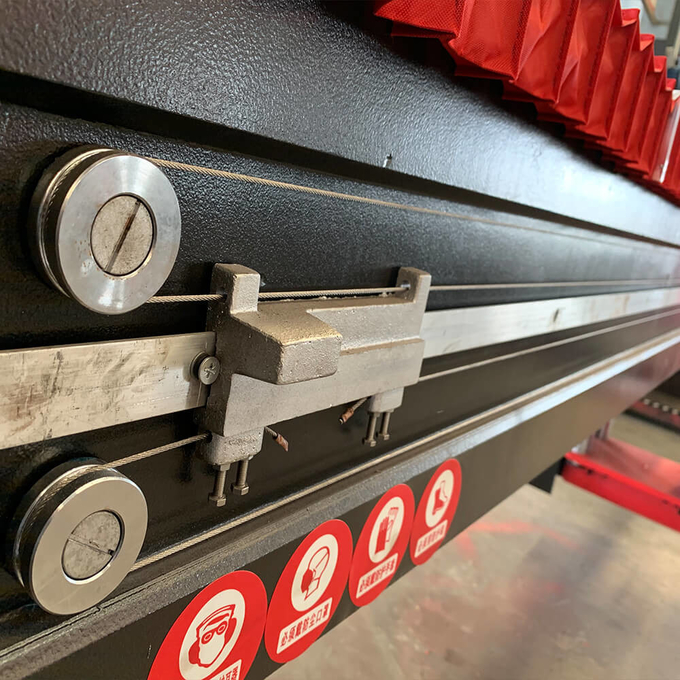

1.We choose the top Accessories to make sure the machine is strong and durable.
2.Our core components adopt premium brands and materials to extend the use of machines.

Technical parameters

Model	DTQ-450	DTQ-600	DTQ-700	DTQ-800
Max. cutting size	3200*2000*100mm	3200*2000*175mm	3200*2000*225mm	3200*2000*275mm
Diameter of blade	Φ400-Φ450mm	Φ400-Φ600mm	Φ400-Φ700mm	Φ400-Φ800mm
Size of worktable	3200*2000mm	3200*2000mm	3200*2000mm	3200*2000mm

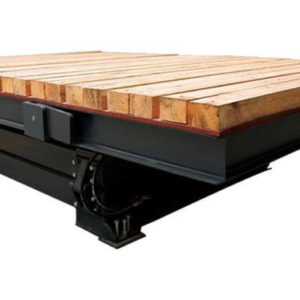

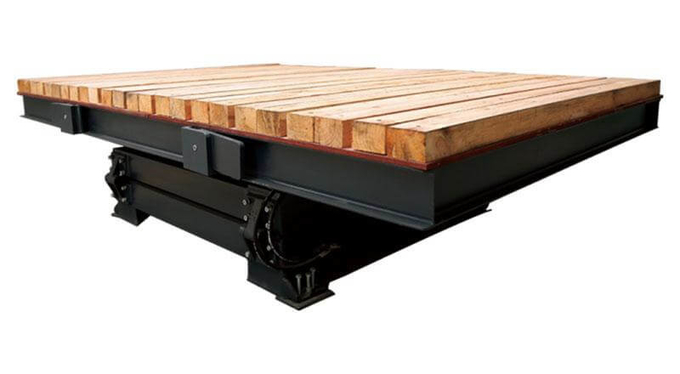

Table Tilting	0-85°	0-85°	0-85°	0-85°
Table Rotation	0-90/0-360°	0-90/0-360°	0-90/0-360°	0-90/0-360°
Main motor power	15KW	18.5KW	18.5KW	18.5KW
Water consumption	3.5m³ /h	3.5m³ /h	3.5m³ /h	3.5m³ /h
Overall dimension	6000*4800*2600mm	6000*4800*2800mm	6000*4800*3150mm	6000*4800*3300mm
Total weight	8674KG	9161KG	10151KG	10650KG
