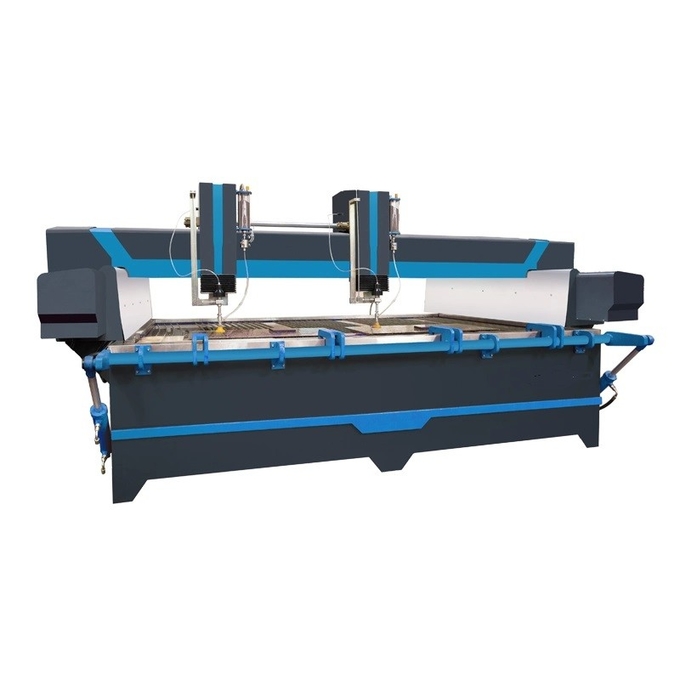

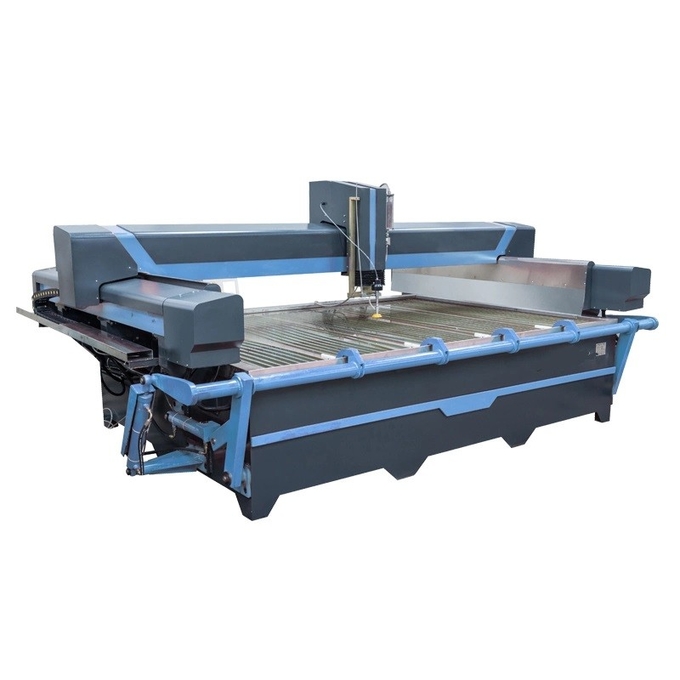

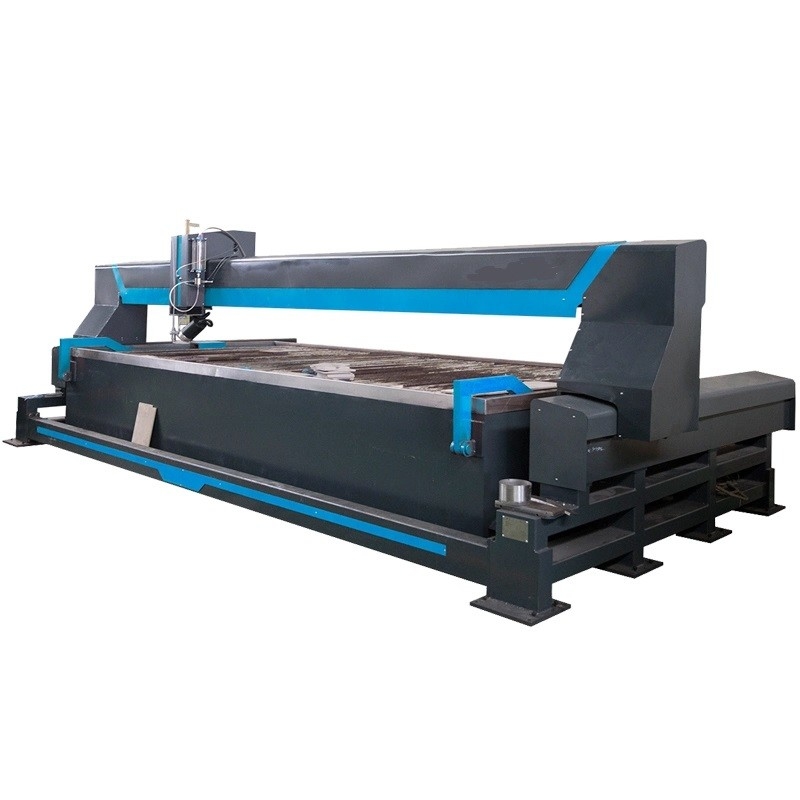

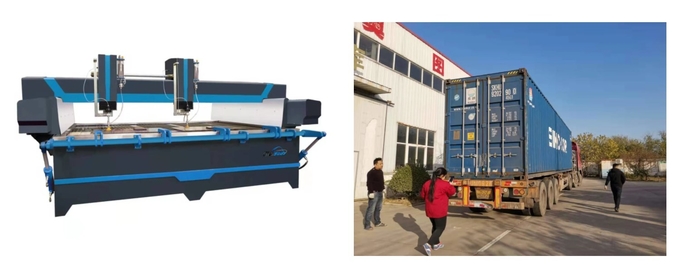

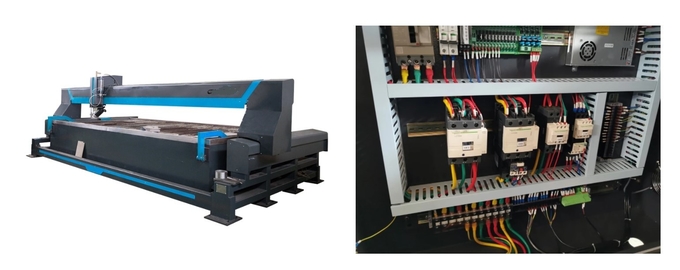

3 Axis Water Jet Cutting Machine

1. Structure: 3-axis, bridge structure
2. Processing dimension: 3000mm*2000mm
3. Cutting table size: 3100mm*2100mm
4. Stroke: X-3000mm, Y-2000mm, Z-60~80mm
5. Cutting accuracy: ±0.1mm
6. Repeat positioning accuracy: ±0.05mm
7. Ball-screw and linear guide with oil-immersed X and Y axis beam structure, for easy maintenance

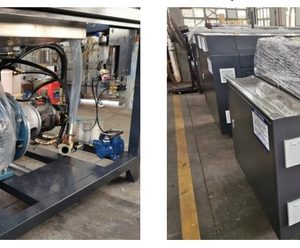

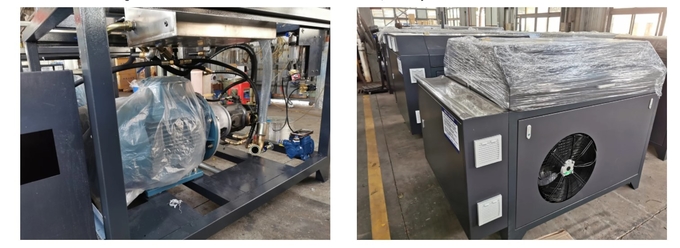

* Type of pressurization: hydraulic. (The water is pressurized by using the fluid pressure intensification principle)
* Main motor power:37KW(SIEMENS)
* Maximum pressure:450MPa
* Normal operating pressure:350-380MPa
* Power supply:380V,50Hz
* Cooling: Oil Circling Air-con cooling
* Accumulator: with TAIWAN high pressure material

* CNC control, apply 19-inch LCD
* WIN 7 system, compatible ASC, IGS, DXF and DWG etc. graphic design software
* It can also send and receive files by internet TCP/IP, USB port and PC.
* Adopt specialized water jet cutting CAD/CAM software
Servo Driver from WEIHONG

Main-machine showing alarm records, such as lack of water or oil, water or oil leaking, pressure overload, over temperature, and
Maintenance time etc.

ITEMS	Description
Turbocharger max pressure (Mpa)	450
Work pressure (Mpa)	320-380
Cutting accuracy (mm)	±0.1mm
Repeatability accuracy (mm)	±0.05 mm
Speed (mm/min)	3500 mm/min
Max moving speed (mm/min)	6000 mm/min
Max.flow rate (L/min)	3.7 L/min
High-pressure tube(mm/mm)	D=3/8 /d=1/4
Diamond orifice size (mm)	0.3/0.33/0.26
Intensifier rate	20:1
