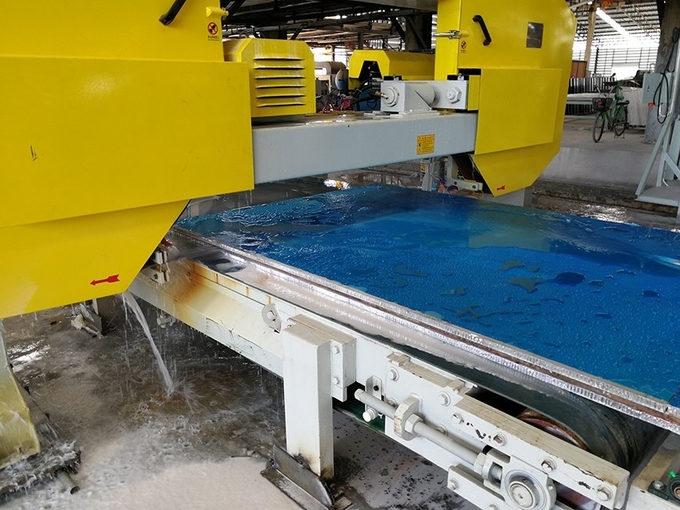

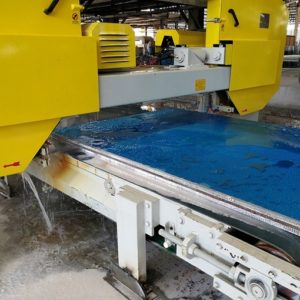

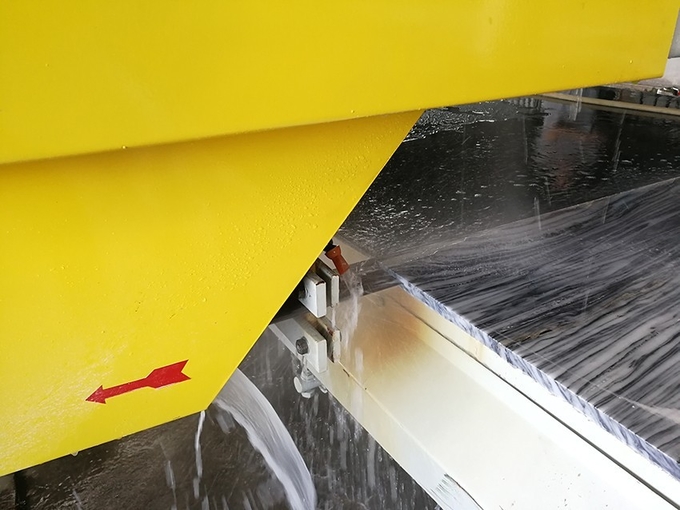

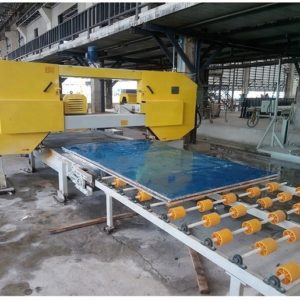

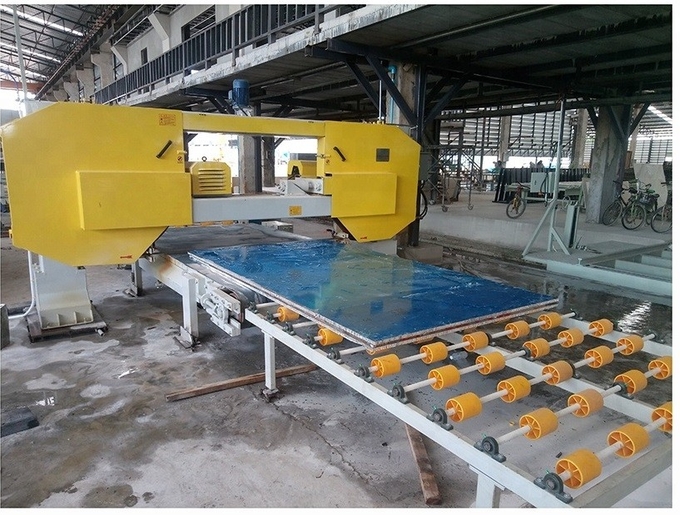

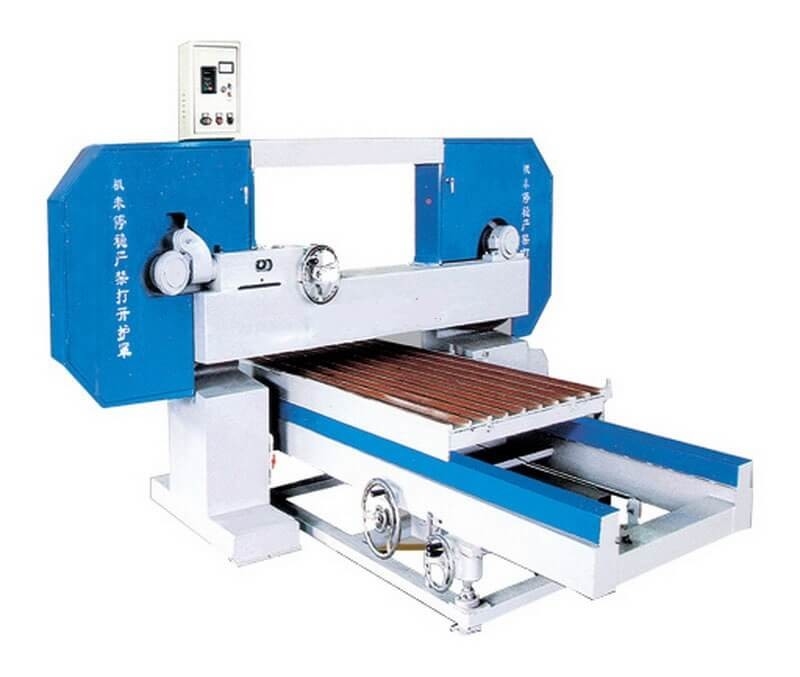

Horizontal Stone Saw Machine

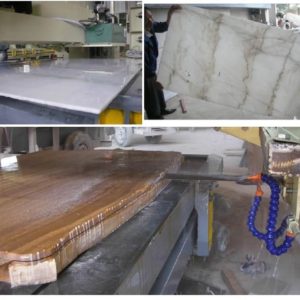

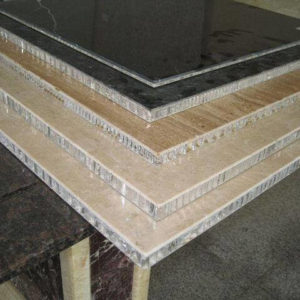

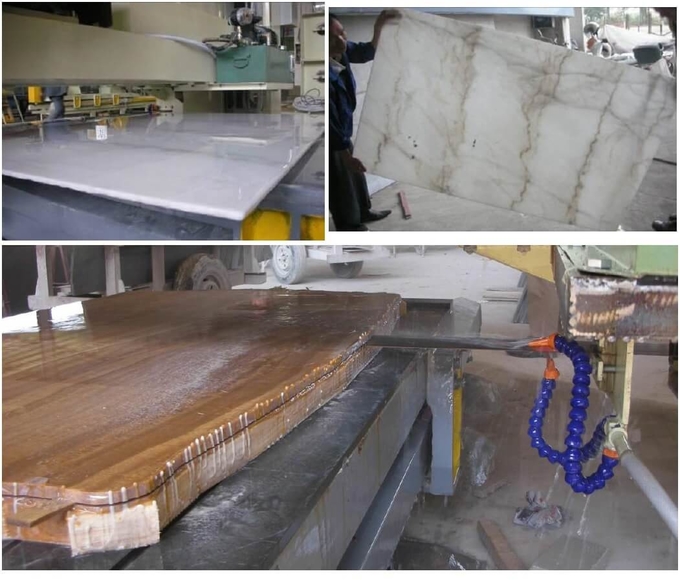

Horizontal Stone Saw Machine is chiefly processed for thin maeble,complex slabs.It is not only cut slab 2cm thick into pieces,but also cut block. It has absorbed of the similar machines from home and abroad.it is united in style and has concise simple and atttractive appearance.It employs a conveyor belt system for transmission and adopts continues cutting,it is integrated in design,simple but elegant.cutting speed is regulated by a multiple-frequency speed-adjusting device,and depending on the thickness of stone material.it is a high-efficiency and steady performing machine. It has been improved over three times,it redeems the saw with suspending cranc in oil pressure.it flat level and improves the productive efficiency and reduces cost.

Inquiry Now

Horizontal Stone Saw Machine is chiefly processed for thin maeble,complex slabs.It is not only cut slab 2cm thick into pieces,but also cut block. It has absorbed of the similar machines from home and abroad.it is united in style and has concise simple and atttractive appearance.It employs a conveyor belt system for transmission and adopts continues cutting,it is integrated in design,simple but elegant.cutting speed is regulated by a multiple-frequency speed-adjusting device,and depending on the thickness of stone material.it is a high-efficiency and steady performing machine. It has been improved over three times,it redeems the saw with suspending cranc in oil pressure.it flat level and improves the productive efficiency and reduces cost.

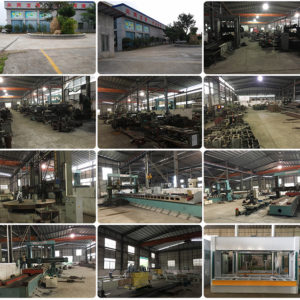

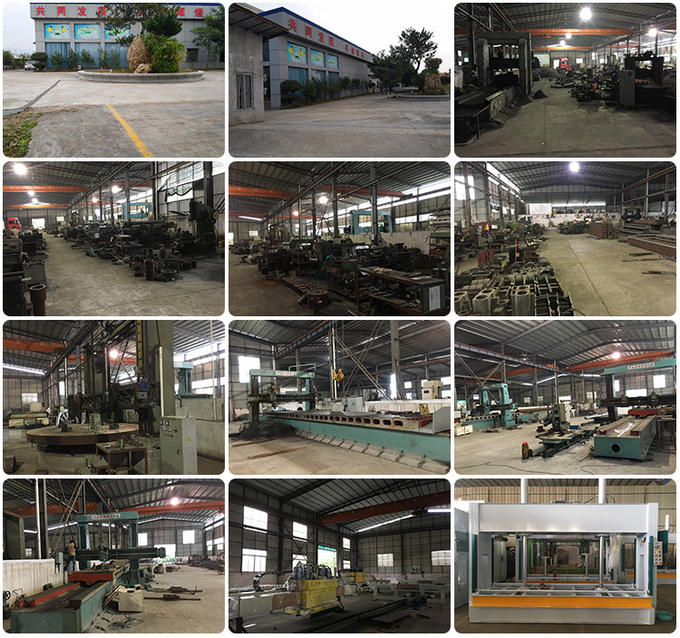

Our factory is a technical type enterprise, professionally produce stone processing equipments.Our main products include Water Jet, Bridge cutter, Digital controlling chain saw, all purpose profiling machine, mosaic production line, countertop edge profile machine, thin slab machine,sink hole cutting machine.We always offers machines of high technology to the most competitive prices, responsible service.

We guarantee you value-added, close, and attentive services. please do not hesitate to contact us.

TECHNOLOGY PARAMETER
Machine dimension 3900×4400×2450mm Water put 25L/min
Working table outlook dia 2400×1260 Weight 4400kg

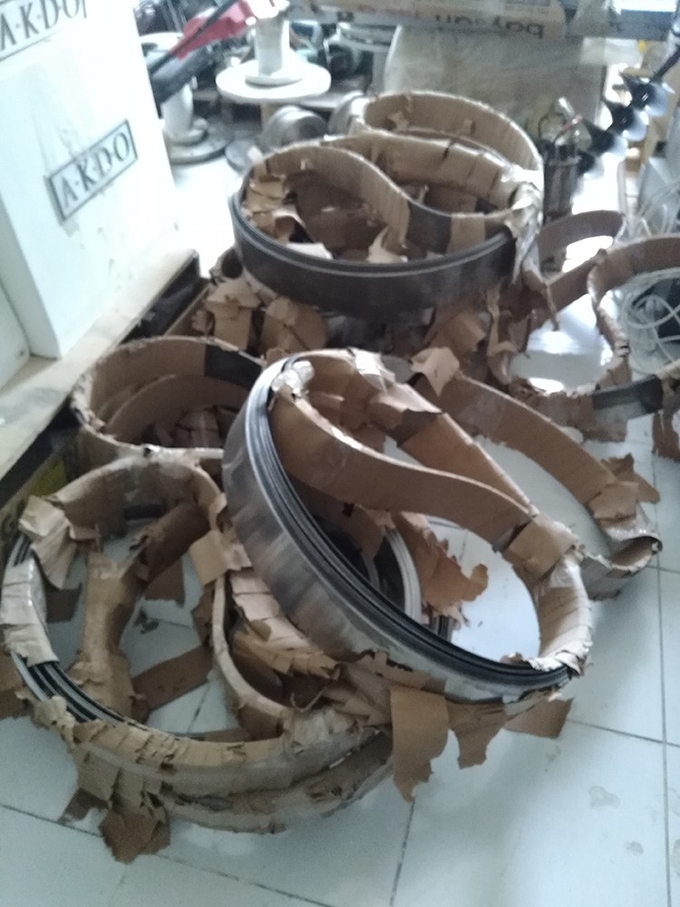

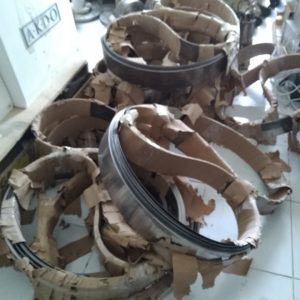

Machine setting area 39m² Blade size 7850×100×2.2mm
Power full 380V 50HZ cutting gap 2.5mm
Total power 12kw Max production dia 2400×1500mm
Main motor power 7.5kw Cutting thickness 5-170mm
Table motor power 1.5kw Working table speed 0-150mm/min
Pressure system power 1.5kw working pressure 5-7Mpa
Rise/down power 1.5kw Machine lubricating oil CD40
