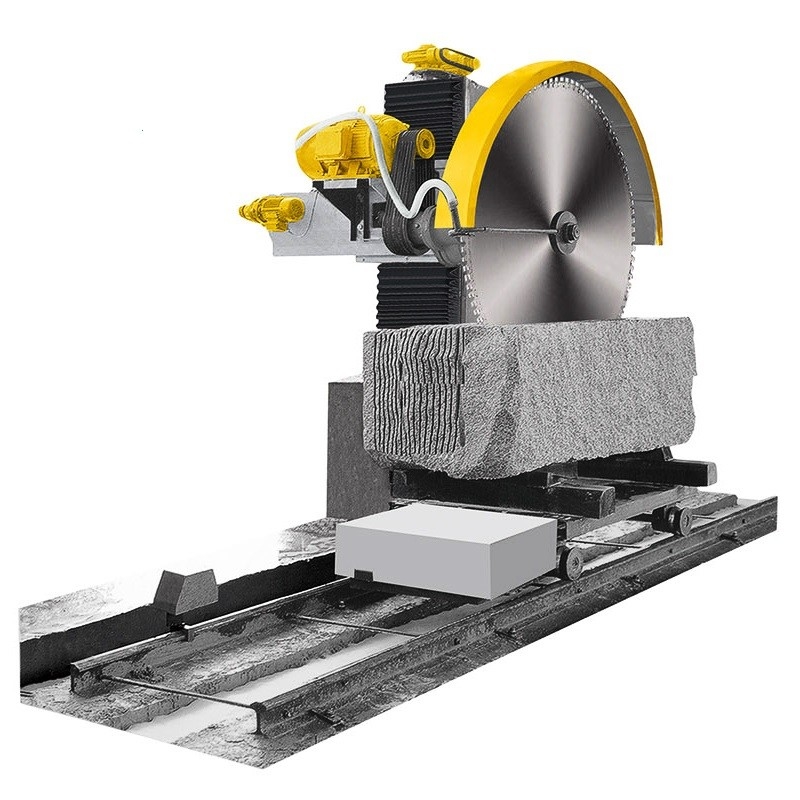

QZQ-1600 1800 Single Column Auto Stone Cutting Machine

QZQ-1600 Single Column Automobile Cutting Machine

QZQ-1600/1800 Single Column Automobile Cutting Machine any of the rock machines developed and producted by Wanlong. It combines benefits of several types of stone cutting machine. Using single line supporting structure, and two-stage variable rate gear for headstock to make slicing more smoothly. The main advantages are cutting automatically based to pre-set slicing depth and cutting thickness; low-enegery comsuption; high cutting accuracy; easy procedure fixes and maintanance.

Inquiry Now
Category: Tags: , ,

QZQ-1600 Single Column Automobile Cutting Machine

QZQ-1600/1800 Single Column Automobile Cutting Machine any of the rock machines developed and producted by Wanlong. It combines benefits of several types of stone cutting machine. Using single line supporting structure, and two-stage variable rate gear for headstock to make slicing more smoothly. The main advantages are cutting automatically based to pre-set slicing depth and cutting thickness; low-enegery comsuption; high cutting accuracy; easy procedure fixes and maintanance.

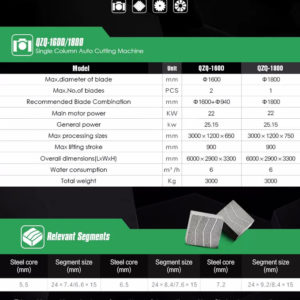

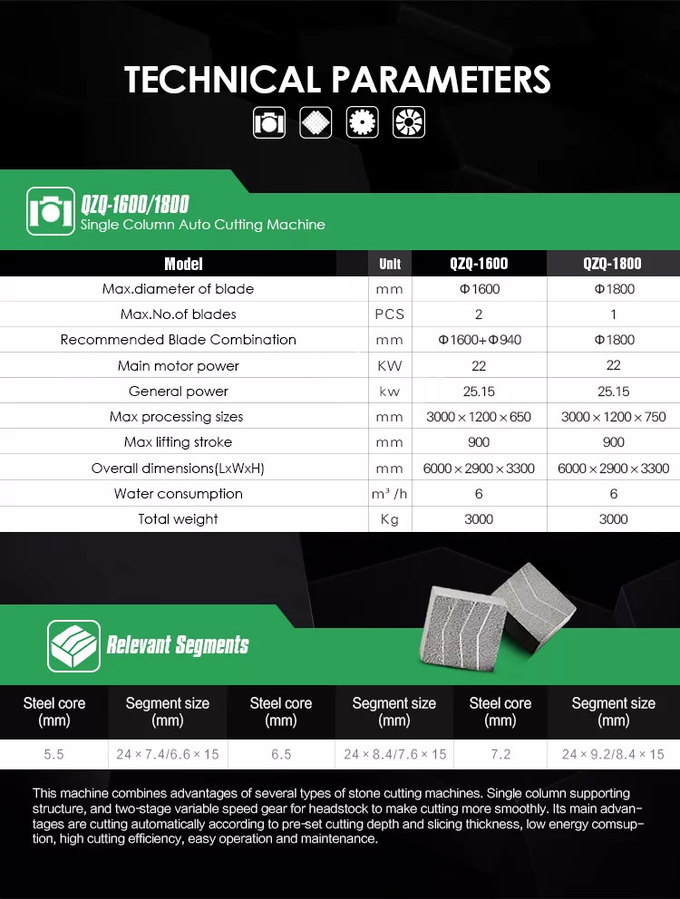

Technical Parameters
Model Unit QZQ-1600 QZQ-1800
Max.diameter of blade mm Φ1600+φ940 Φ1800
Max.No. of blade pcs 2 1
Main motor power KW 22 22
Recommend blade combination mm Φ1600+φ940 Φ1800
General power kw 25.15 25.15
Max.lifting stroke mm 900 900
Max. processing size(L*W*H) mm 3000x1200x650 3000x1200x750

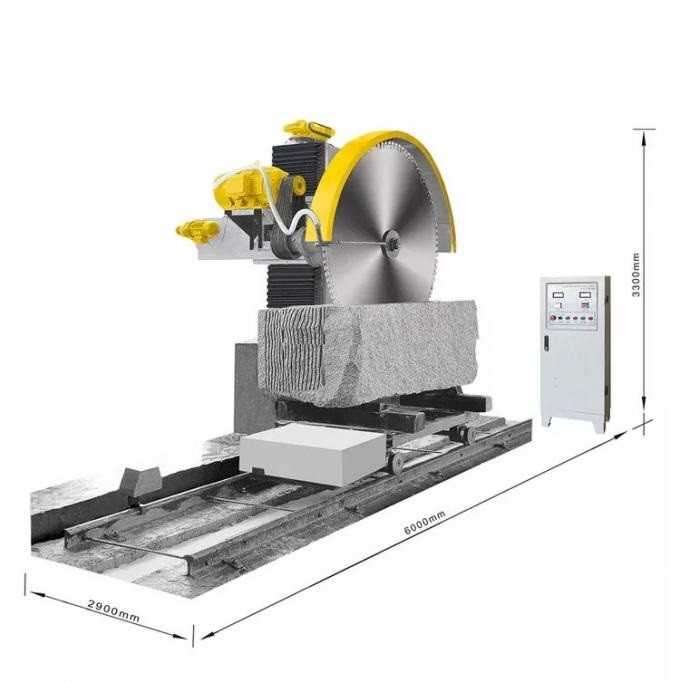

Overall dimension(L*W*H) mm 6000x2900x33000 6000x2900x3300
Water consumption m3/h 6 6
Total weight kg 3000 3500
