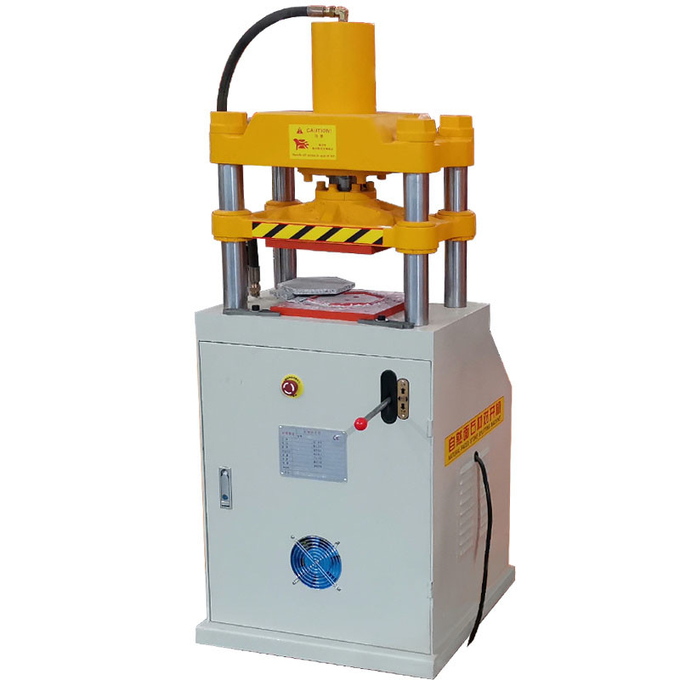

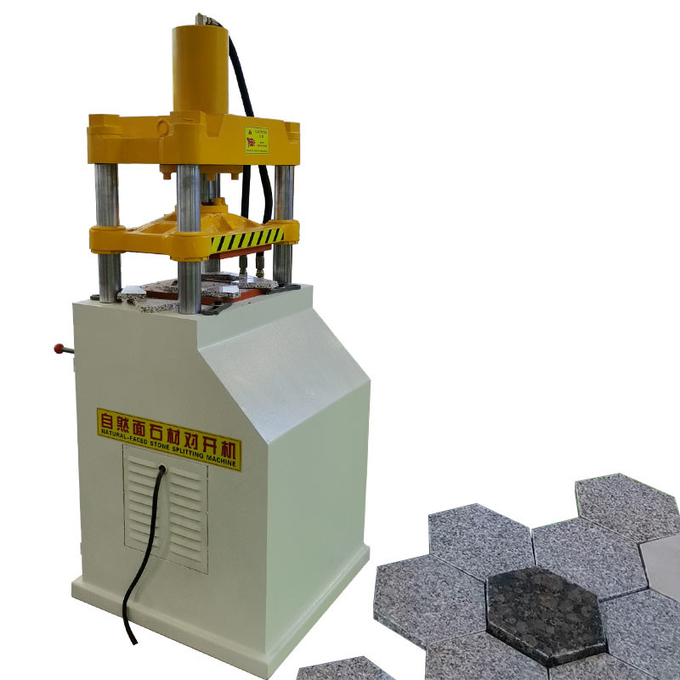

Stone Hydraulic Press Machine

Stone Hydraulic Press Machine is an easy to operate dual-function hydraulic punching machine for processing artifical granite, marble slabs.
With this stone machine, you can

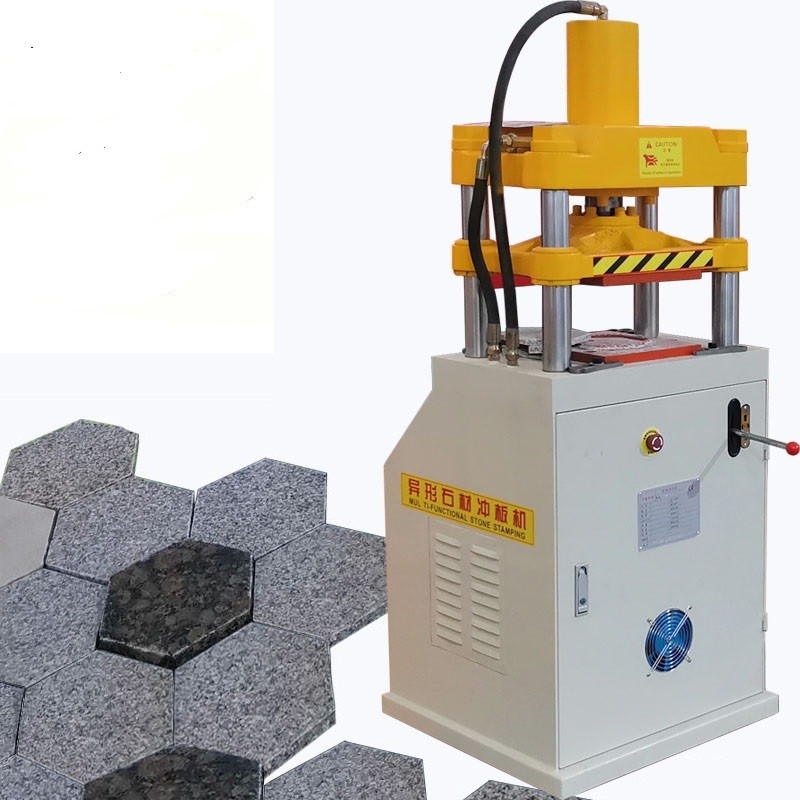

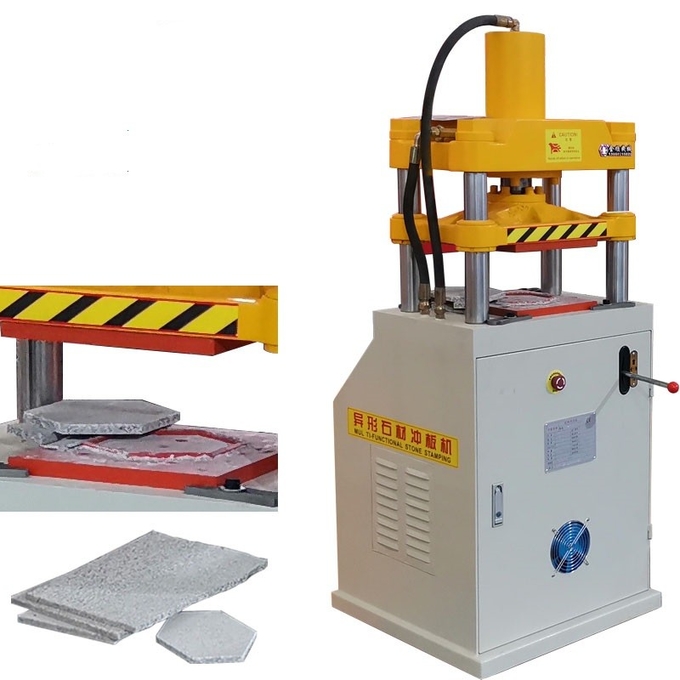

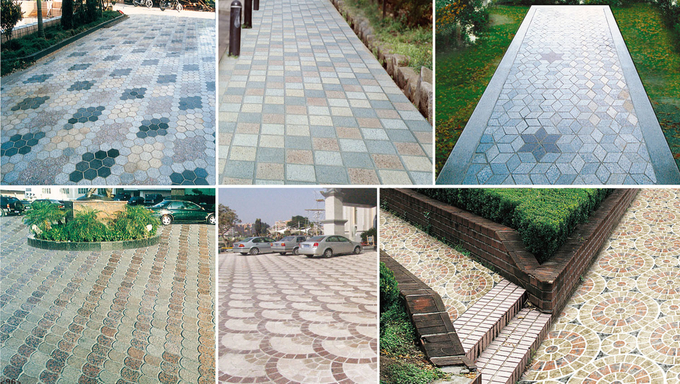

1) Turn waste to wealth — Do with the leftover stone slabs /tiles, stamp/cut them into amazing paving stone bricks.

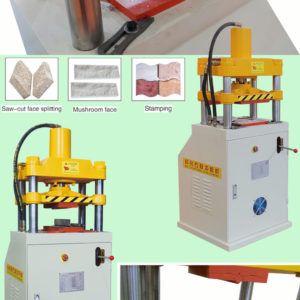

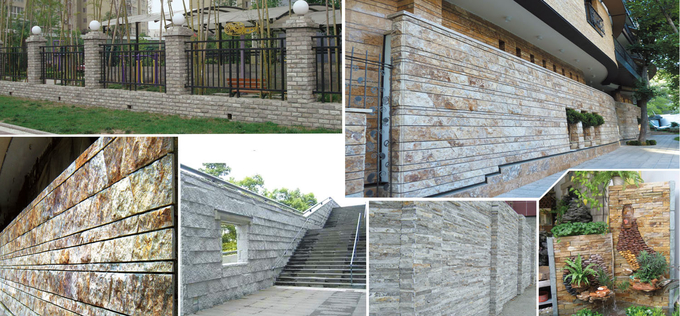

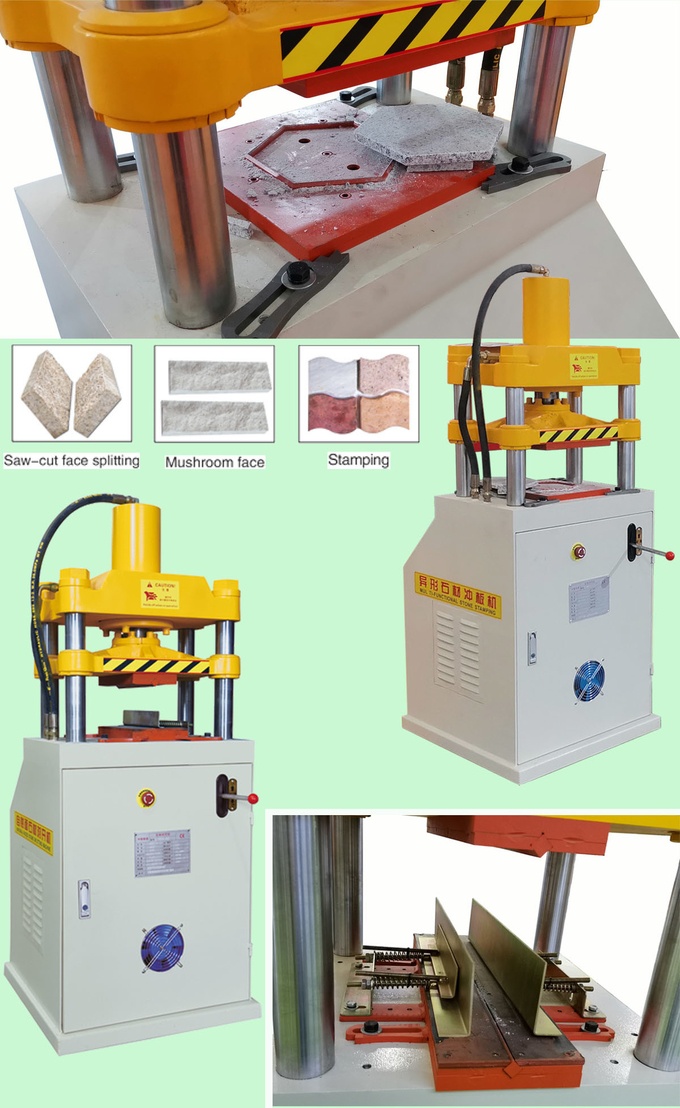

2) Split stone into two pieces of slabs with a rustic appearance, getting natural effect exterior wall tiles .
Main Features

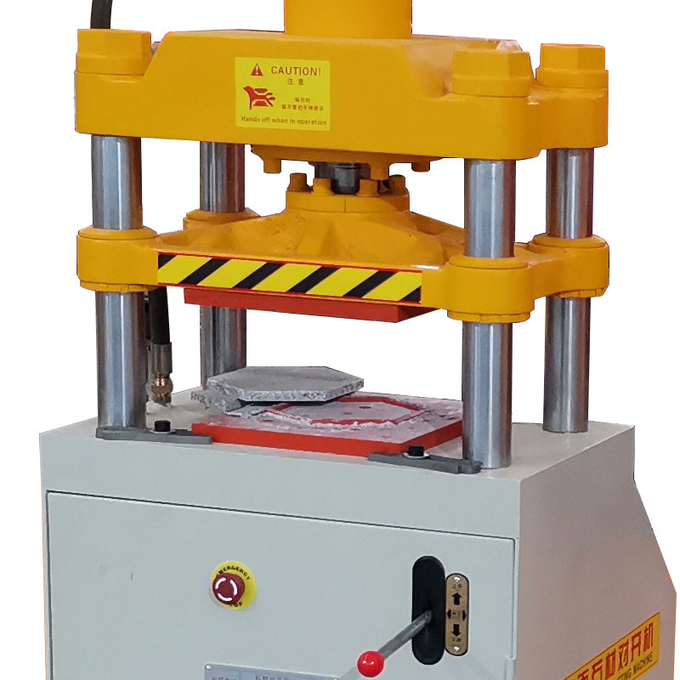

* Open frame machine model, simple to maintain
* Made of 4 strong iron pillars and high quality parts ensuring stability during working.
* Convenient to start and easy to operation
* Fast lift up movement improves the working efficiencty greatly .

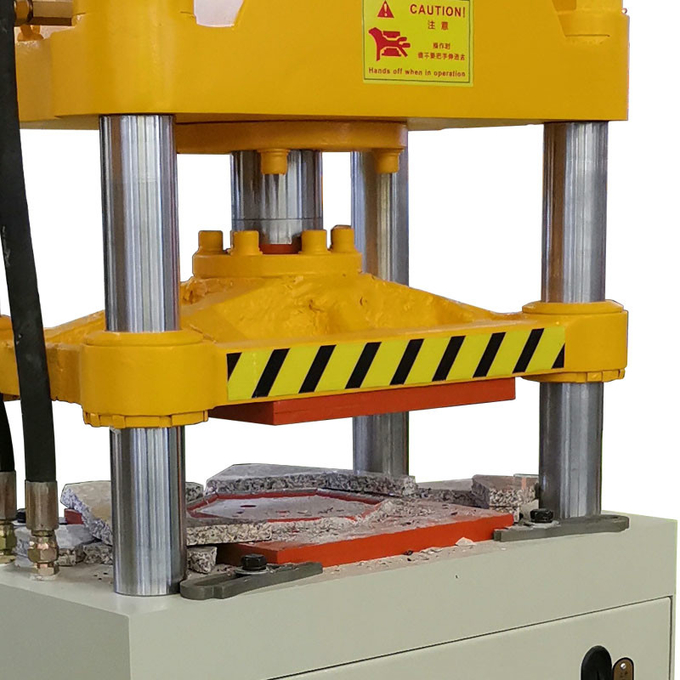

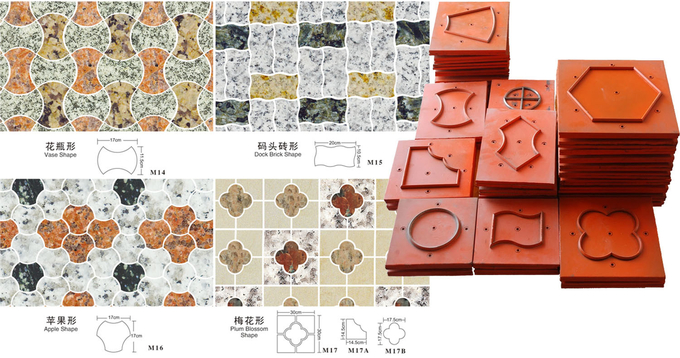

* Stamping moulds can be changed easily thanks to special clip-on for producing different types of patterns.
* Low cost and high productivity

Inquiry Now

Stone Hydraulic Press Machine is an easy to operate dual-function hydraulic punching machine for processing artifical granite, marble slabs.
With this stone machine, you can
1) Turn waste to wealth — Do with the leftover stone slabs /tiles, stamp/cut them into amazing paving stone bricks.
2) Split stone into two pieces of slabs with a rustic appearance, getting natural effect exterior wall tiles .
Main Features
* Open frame machine model, simple to maintain
* Made of 4 strong iron pillars and high quality parts ensuring stability during working.
* Convenient to start and easy to operation
* Fast lift up movement improves the working efficiencty greatly .
* Stamping moulds can be changed easily thanks to special clip-on for producing different types of patterns.
* Low cost and high productivity

Technical Data

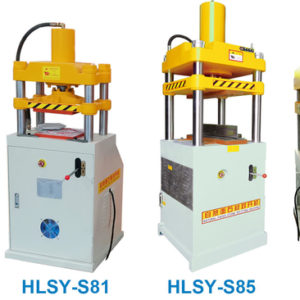

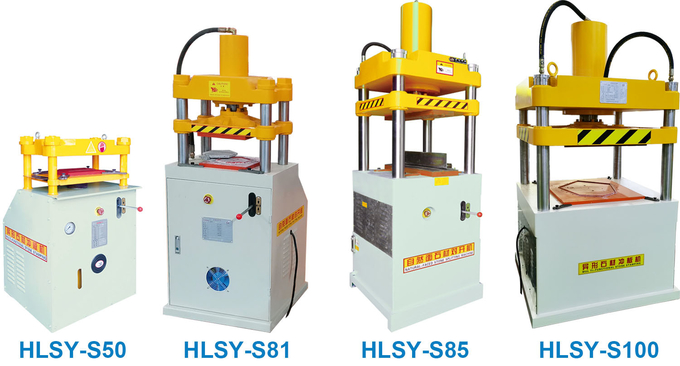

Model No.
HLSY-S50
HLSY-S81
HLSY-S85
Pressure force
ton
20
30
60
Blade feeding speed
mm/s
30
35
30
Max. working height
mm
50
100
300
Max. working length
mm
200
300
600
Output per hour
m2/h
7
15
20
Power
kw
3
4
4
Voltage / Frequency
V / Hz
380 / 50
380 / 50
380 / 50
Flow rate
L/M
10
10
17
Hydraulic oil grade
#
46
46
46
Oil tank capacity
L/kg
15 / 12
28 / 23
90 / 74
Gross weight
kg
700
850
1150
Dimensions ( L x W x H )
mm
650x600x1050
650x650x1600
620x620x2000
