Bridge Stone Saw Machine

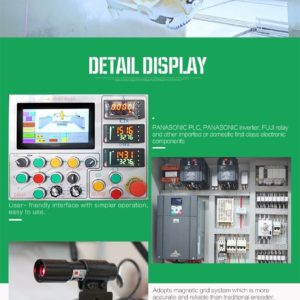

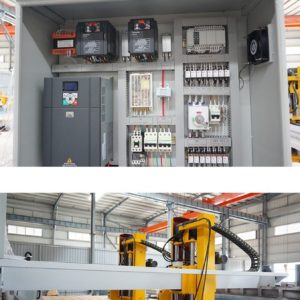

Bridge Stone Saw Machine Usage: The machine uses PLC system and human-machine interface, combined with Ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, main spare parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy-operating to suit granite and marble with high value and big size.

PLC-400 Stone Cutting Machine
1)Bridge Edge Cutting Machine
2)Automatic Cutting Machine
3)Granite/Marble/Sandstone slab edge cutting

Machine Models

1. PLC-400 Bridge Saw
Blade Diameter: 350/400mm or 14″ /16″ Blade
Cutting Slab Size: Max. 3200x2000x80mm
Precision: +/-0.2mm
15Kw main Motor
Machine Certificates
CE Certificate
Exporting to Europe, USA and Australia, Mid-East

Technicial Parameter

Model		PLC-400/600
Max. diameter of blade	mm	D350-400/D600
Main motor power	KW	15
Blade rotation degree	N°	0-45°
Table dimension(LxW)	mm	3200×2000
Table tilting degree	N°	0-85°
Table rotating degree	N°	90°/360°
Max.cutting size(LxWxH)	mm	3200x2000x80/3200x2000x180
Overall dimension(LxWxH)	mm	6000x4800x3000
Water consumption	m3/h	4
Approximate weight	kg	4800
