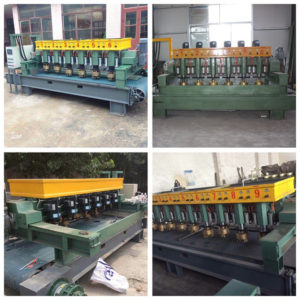

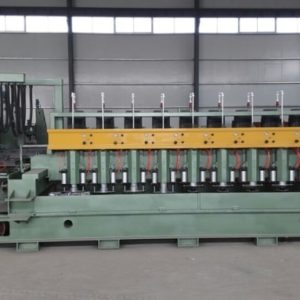

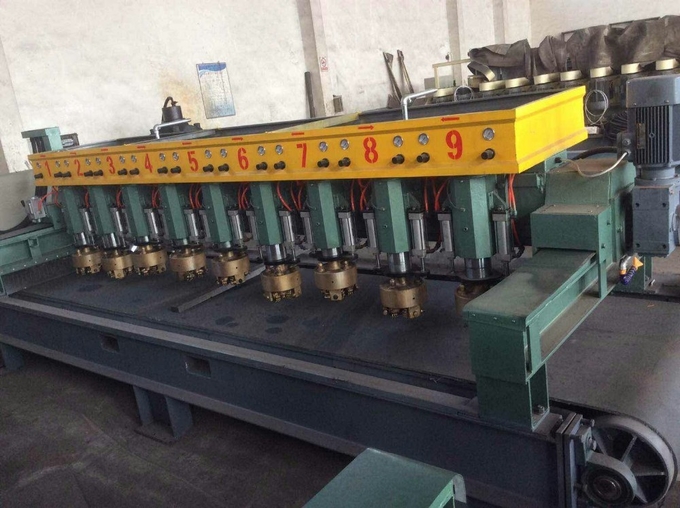

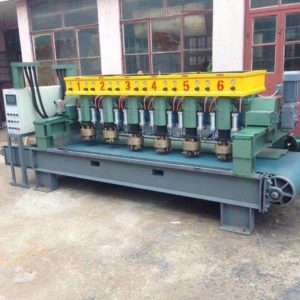

Automatic Granite Bush Hammer Machine

The automatic granite bush hammering machine with 6-head is your ideal machine to process litchi surface with high production, easy operation and perfect result. The head is adjusted automatically with same depth, lower cost and lower breakage rate. Different size, irregular shape or thin slab with 10mm are all acceptable to process litchi surface.

Feature

1. The device using theresin disc,thediscis light weight,low power consumption, its power consumption than traditional continuous mill 1/3.

2. Operation control system using PLC terminal control,through the LCD touch screen parameter settings,a grinding head lifting and polishing is controlled by pneumatic pressure,thesize of demand in theset value can be adjusted.

3. Grinding head of grinding speed and lateral plate feeding speed by frequency control and in the range of set value set flexibly.

4. Automatic feeding,grinding head intelligent identification plate shape for continuous grinding and polishing of high production efficiency,low cost,a set of device against multi-ple hand grinding or bridge typesemi automatic mill production efficiency.

Model	SMLZ-1000-6	SMLZ-1000-9
Grinding Head Size	220mm	220mm
Grinding Head Quantity	6	9
Max. Processing Width	1000mm	1000mm
Max. Processing Depth	100mm	100mm
Main Motor Power	13.2kW	19.8kW
Transverse Stroke	1100mm	1100mm
Vertical Stroke	150mm	150mm
Water Pressure	2Mpa	2Mpa
Compressor Pressure	8-10Mpa	8-10Mpa
Dimension	4500*1700*1800mm	6750*1700*1800mm
Weight	4500kg	6750kg
