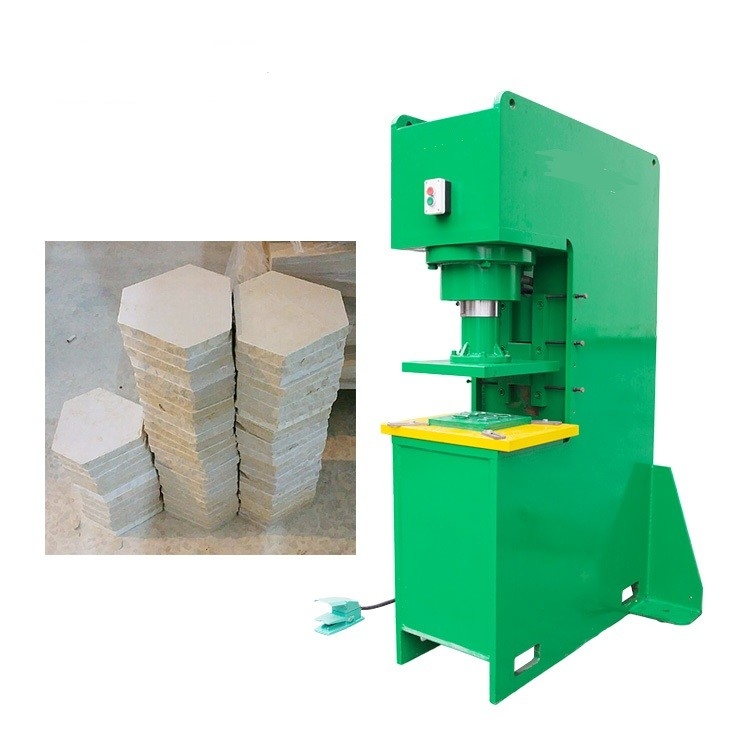

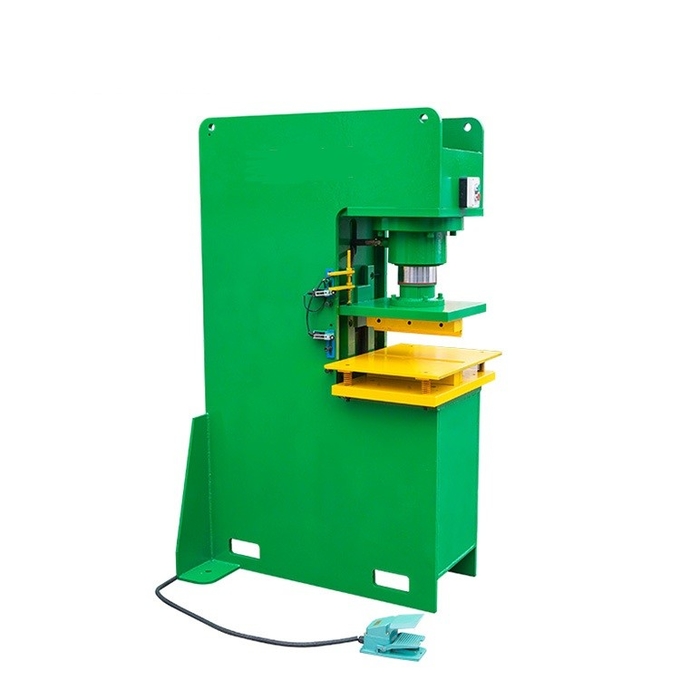

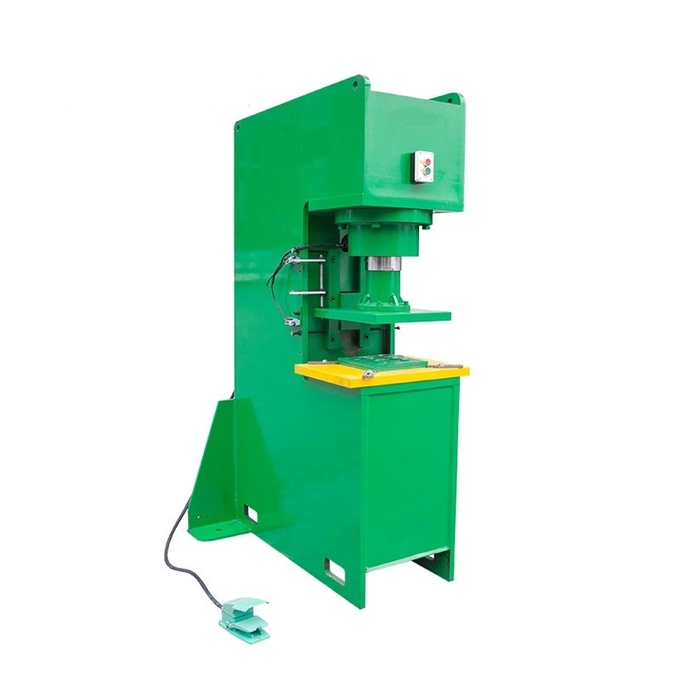

Hydraulic Stone Stamping Machine

Natural stone hydraulic stamping machine splitting special shape
1.This hydraulic stone stamping machine is very popular in the world,such as USA,India,United Kingdom,etc…

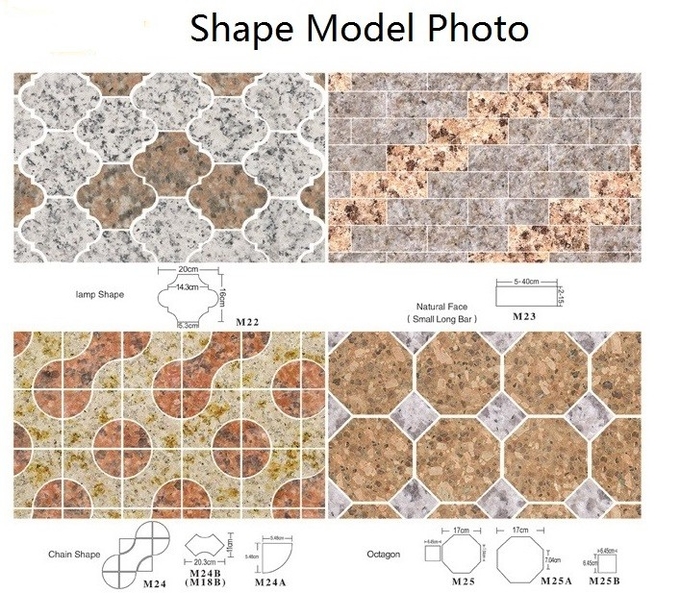

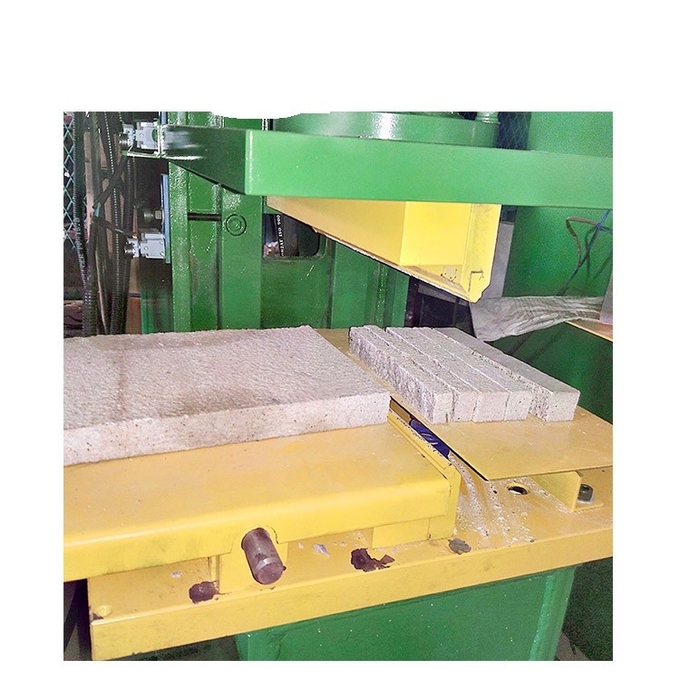

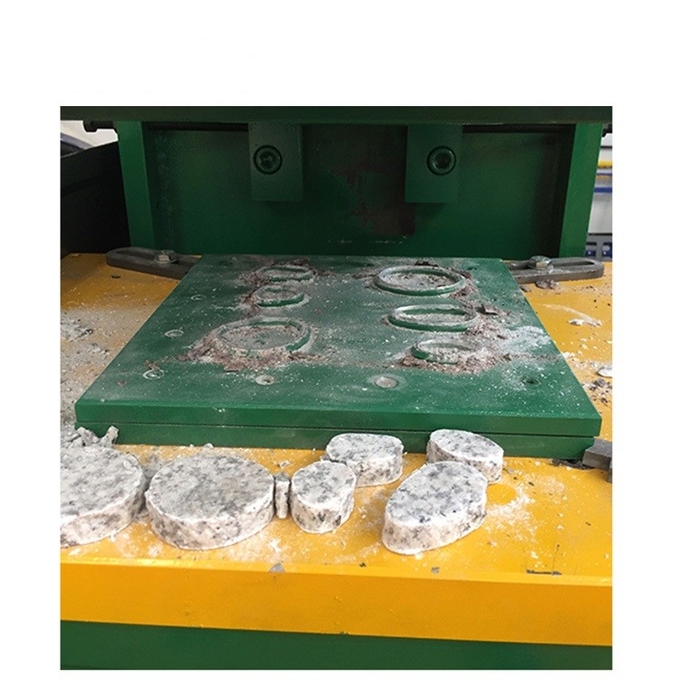

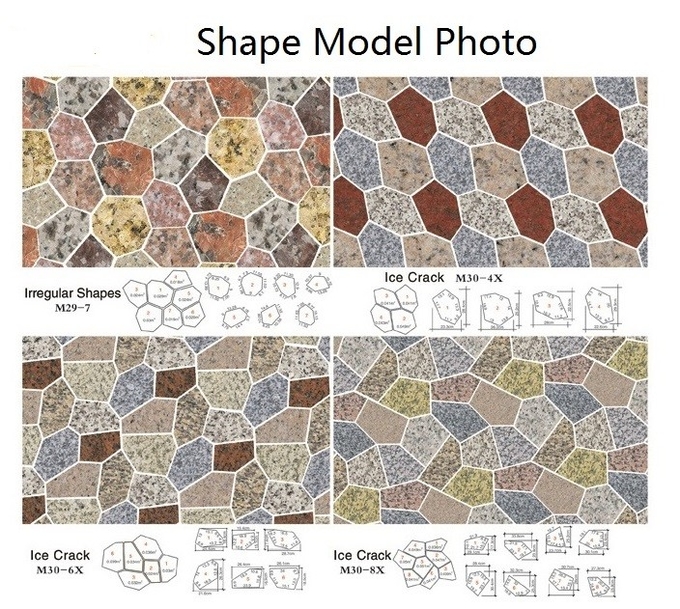

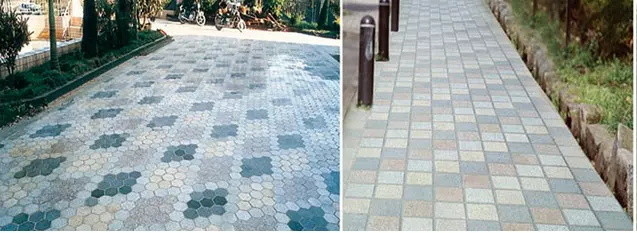

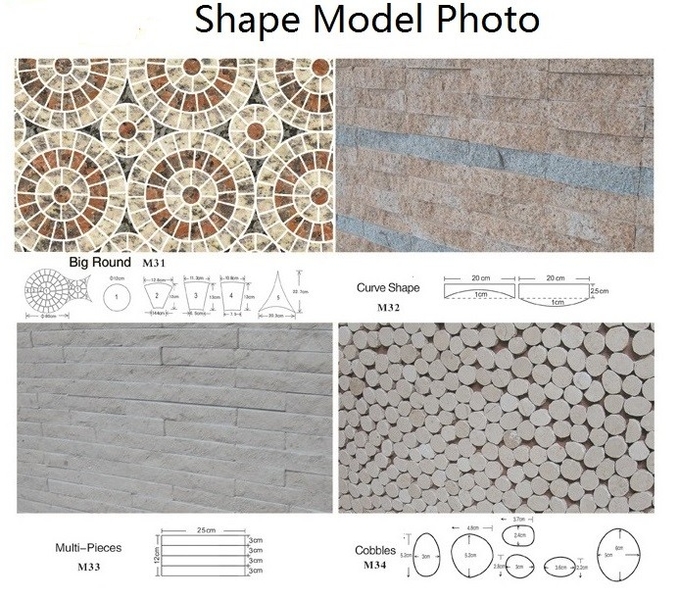

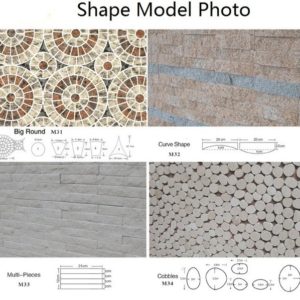

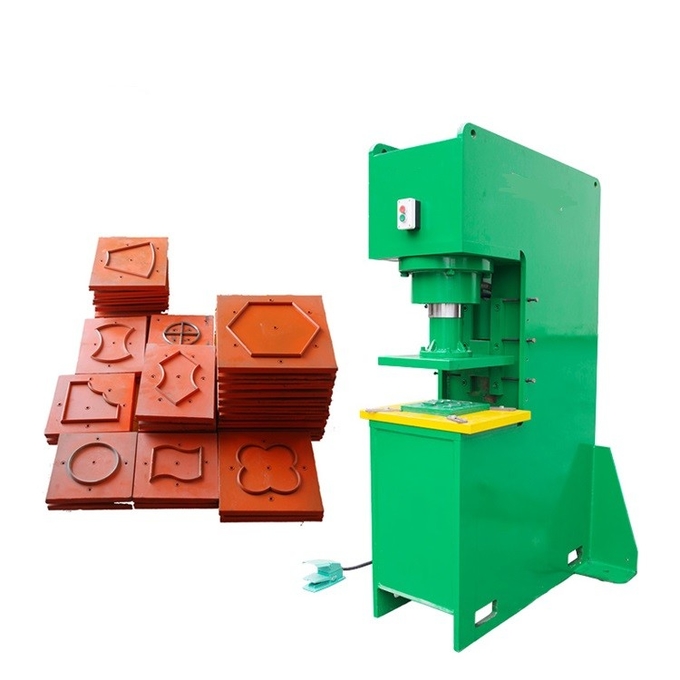

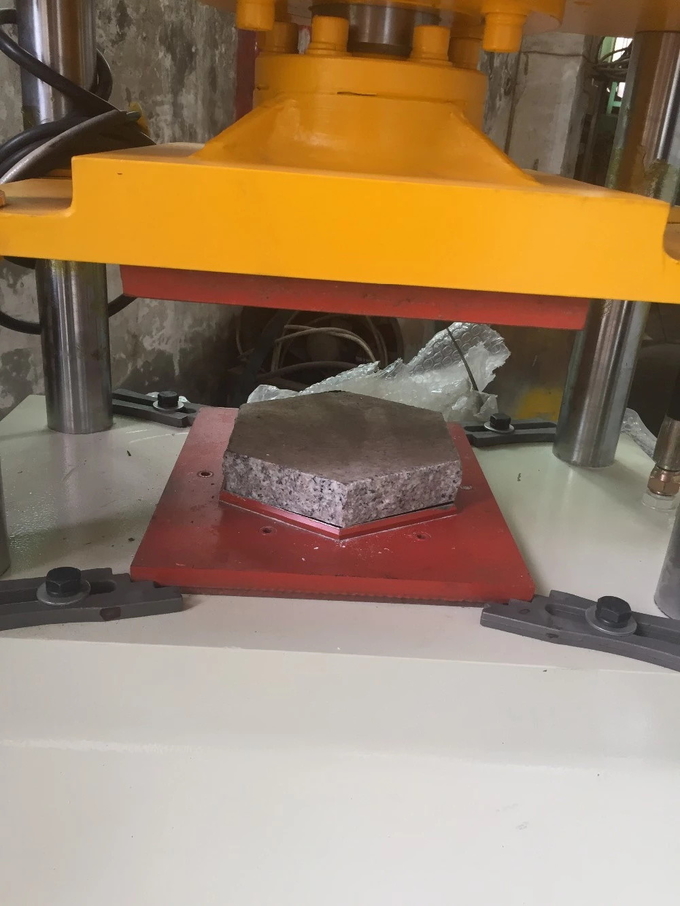

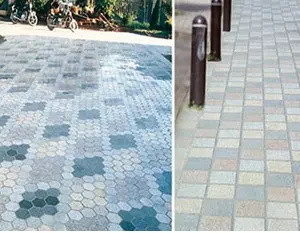

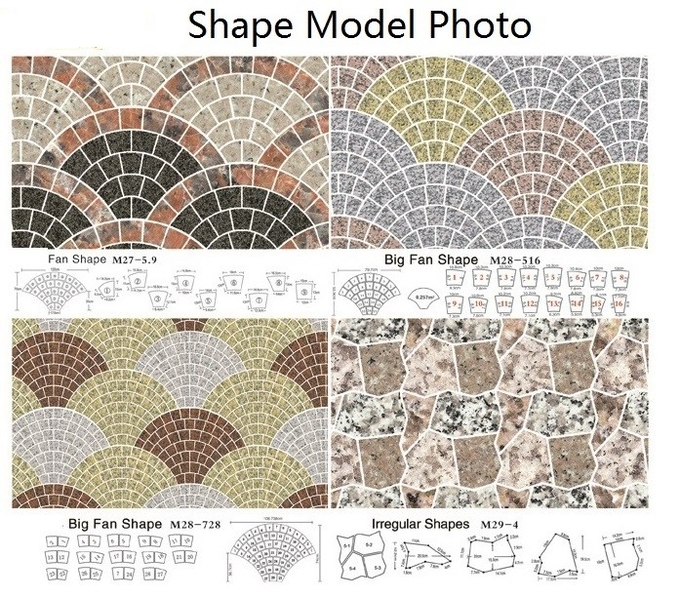

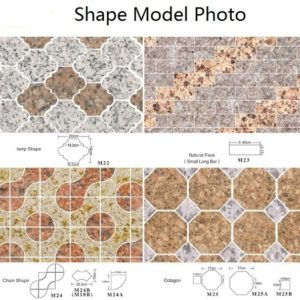

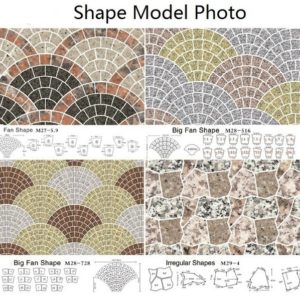

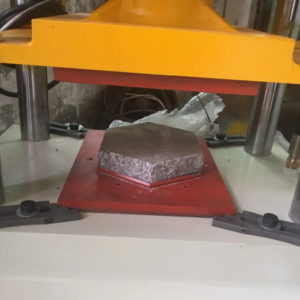

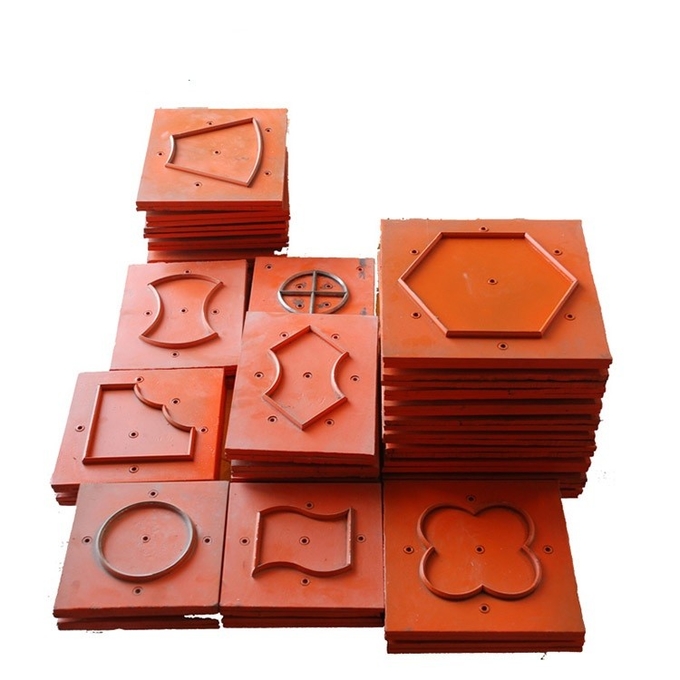

The hydraulic stamping machine is specially designed for changing the leftovers of slabs or tiles into amazing paving stones. It could stamp more than 40 different shapes by different dies with hydraulic system inside. And we could make special designs according to your requirements. This machine has very compact structure. It is easily operated and maintained. It has the output around 100-120m² per day. The standard splitting power is 20 ton, maximum processing stone size is 30cm×30cm×5cm(L*W*H). We can adjust the hydraulic system with 40tons splitting force, then it can process the slabs up to 8cm in thickness. There are 2 types: CP90 (A) and CP90 (B). CP90 (A) has two functions­­­—- stamping and cutting, while CP90 (B) has one more special device to split the slabs into natural face strip in rapid succession.

Inquiry Now
Category: Tags: , ,

Natural stone hydraulic stamping machine splitting special shape
1.This hydraulic stone stamping machine is very popular in the world,such as USA,India,United Kingdom,etc…

The hydraulic stamping machine is specially designed for changing the leftovers of slabs or tiles into amazing paving stones. It could stamp more than 40 different shapes by different dies with hydraulic system inside. And we could make special designs according to your requirements. This machine has very compact structure. It is easily operated and maintained. It has the output around 100-120m² per day. The standard splitting power is 20 ton, maximum processing stone size is 30cm×30cm×5cm(L*W*H). We can adjust the hydraulic system with 40tons splitting force, then it can process the slabs up to 8cm in thickness. There are 2 types: CP90 (A) and CP90 (B). CP90 (A) has two functions­­­—- stamping and cutting, while CP90 (B) has one more special device to split the slabs into natural face strip in rapid succession.

Technical specifications

Model CP90-20T-A CP90-40T-A CP90-20T-B CP90-40T-B CP90(40T automatic)
Hydraulic pressure 20Mpa 20Mpa 20Mpa 20Mpa 20Mpa
Splitting power 20T 40T 20T 40T 40T
Electric motor power 4kw 7.5kw 4kw 7.5kw 7.5kw
Max.slab stamping size 30cm×30cm×5cm 30cm×30cm×8cm 30cm×30cm×5cm 30cm×30cm×8cm 30cm×30cm×8cm
Max splitting length 30cm 35cm 30cm 35cm
Max splitting height 1-5cm 5-8cm 1-5cm 5-8cm 1-5cm
Machine size 70*86*113cm 80*100*150cm 80*100*150cm 80*100*150cm 80*100*150cm
Weight 420kg 550kg 500kg 580kg 650kg
Fuctions stamping,splitting stamping,splitting stamping,cutting,splitting stamping,splitting,cutting stamping
