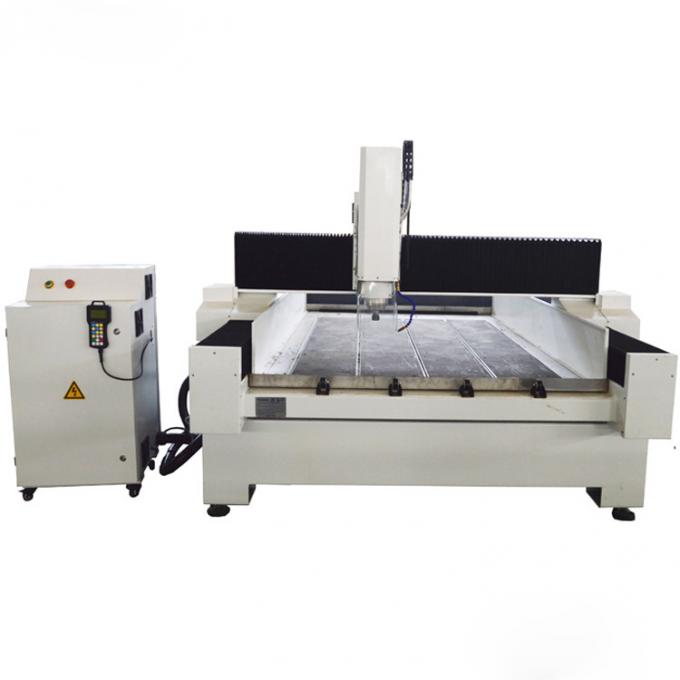

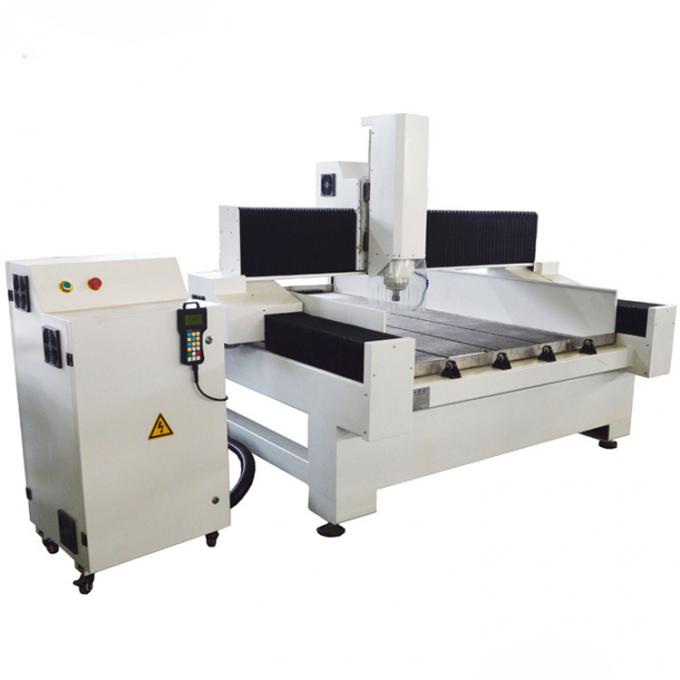

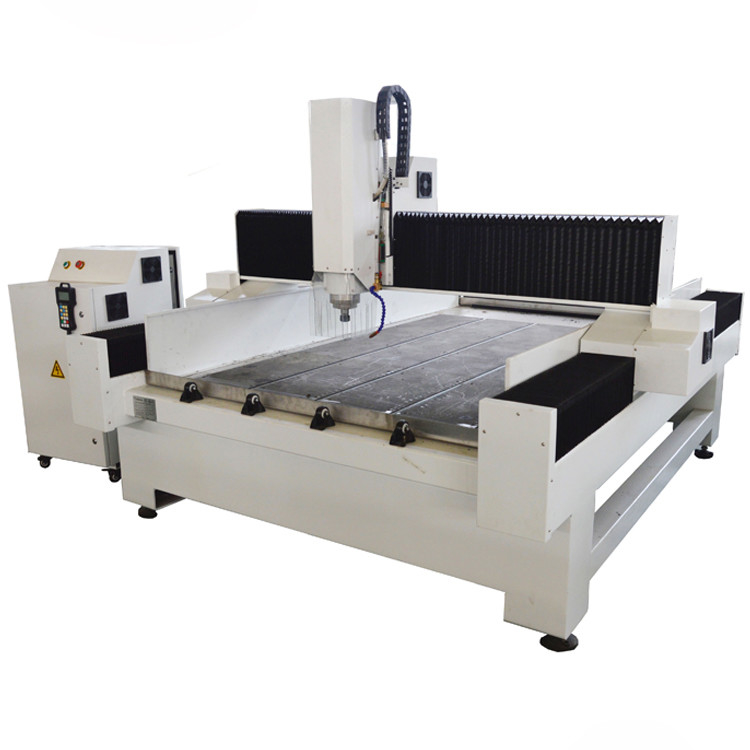

Cheap Cnc Carving Marble Granit Cut Engraver Stone Machine Price

Guarantee:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas

Inquiry Now
Category: Tags: , ,

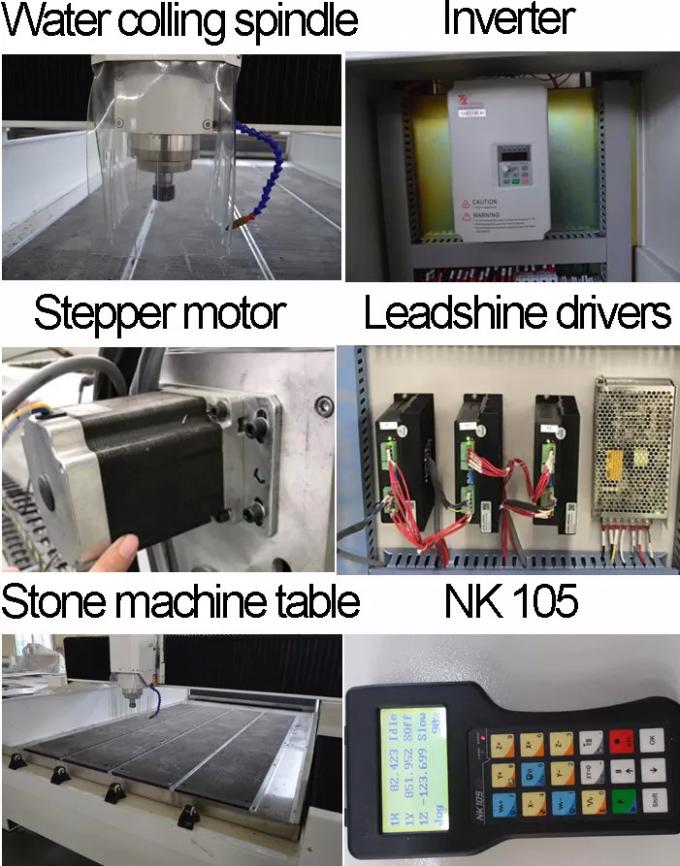

Feature of our granit engraver

1) 5.5kw water cooling spindle

2) BETA inverter

3) Stepper motor

4) Stepper drivers

5) Heavy duty stone table with water tank

6) NK105 control system

7) HIWIN Linear Guide rails

8) Helical rack & TBI ball screw for transmission

9) 3PH, 380V 50HZ

Services of our cnc router machine

Guarantee:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas

After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc

Technical Data of granit engraver

NO. Model FSM9015
1 working area 900*1500*300mm
2 Processing precision ±0.03mm/300mm
3 Max processing speed 7000mm/min
4 Max travelling speed 12000mm/min
5 Spindle power 5.5KW water cooling spindle
6 Command G code
7 Voltage 3PH, AC 380V/50HZ

Advantage of our granit engraver

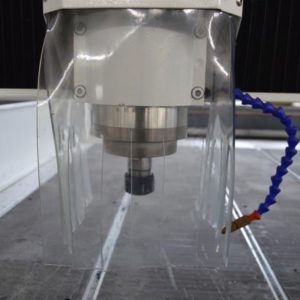

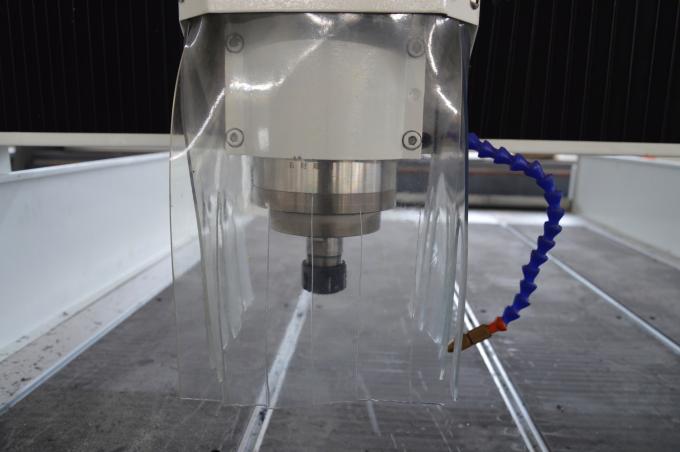

1. Spindle 5.5KW Water Cooling Spindle.

Famous brand CS made in china, low noise. Spindle speed: 0-24000rpm
2. Inverter BETA Inverter, Fuling brandIt can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control.
3. Motor 450B stepper motors

With high quality & stronger power, ensure machine work very well.
4. Driver Leadshine 860H Drivers

It can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time.

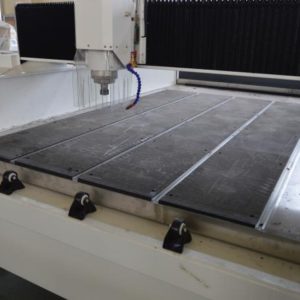

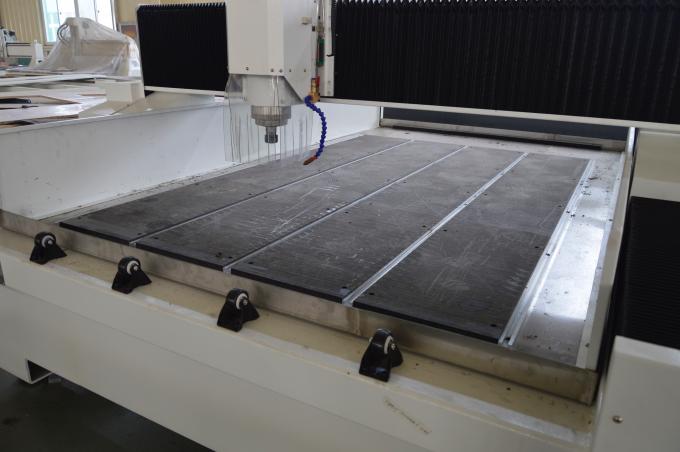

5. Stone table with roller Heavy duty bed structure with water tank

Special design for stone, with rollers, can help loading unloading marble…


6. Control system NC Studio Control System, PC online
NK105 controller for cnc router,USB connect,can be use without computer.
