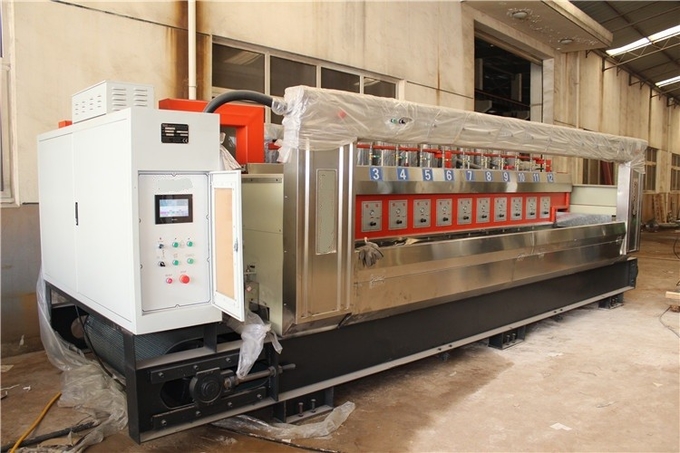

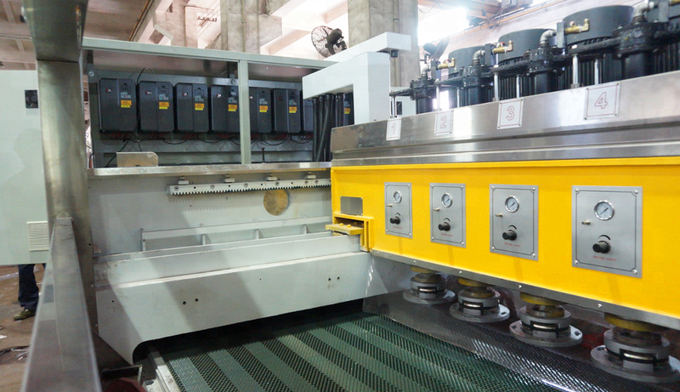

1. Our marble stone polishing machines are easy and convenient tools installing,time-saving.
2. With a wheel shaft of 30mm diameter,the most common dimension in the market,easy tool matching.

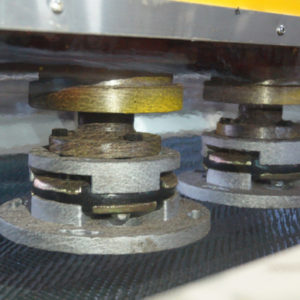

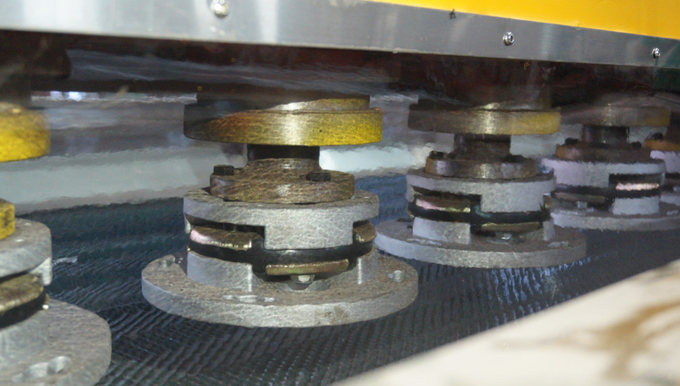

3. Simple but precise wheel alignment (tool setting), high accuracy is guaranteed.

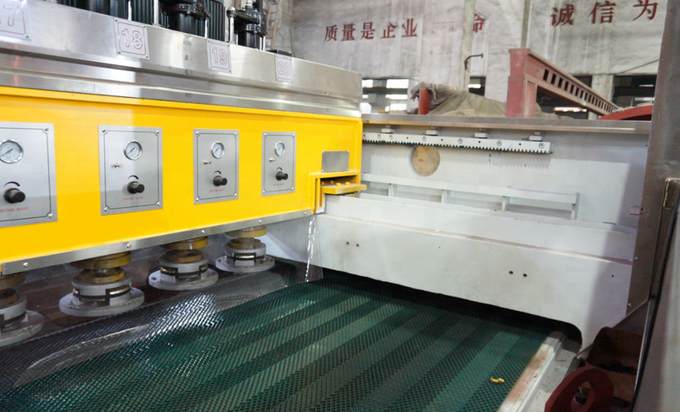

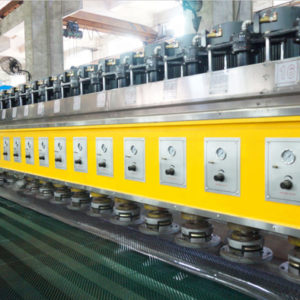

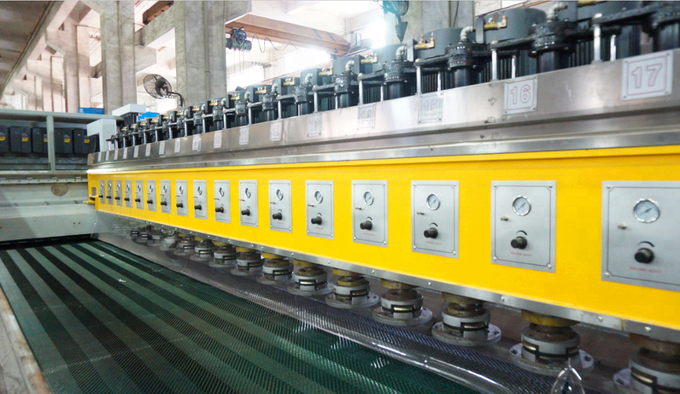

4. Constant pressure self-compensation system ensures a high quality product with high precision and uniform gloss.
5. Automatic shortage alarming&suspending function to prevent machine from damaging.

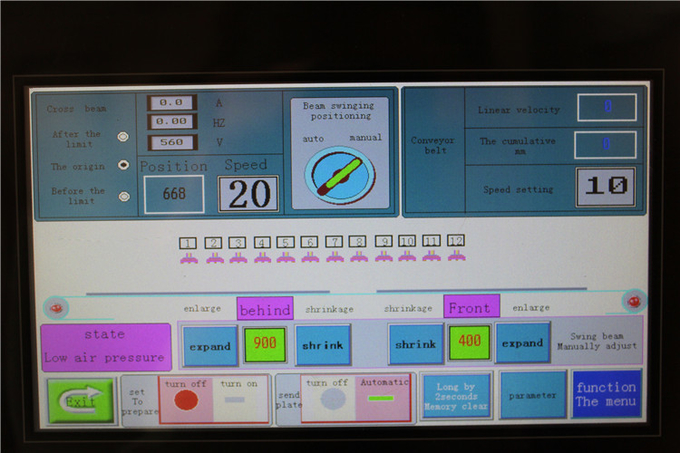

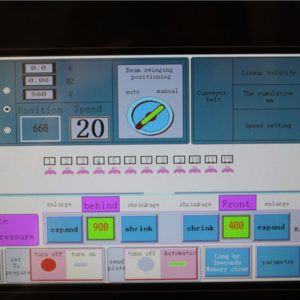

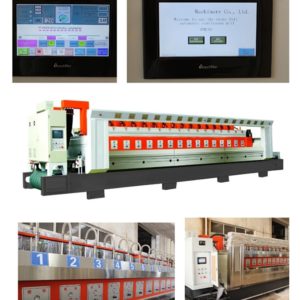

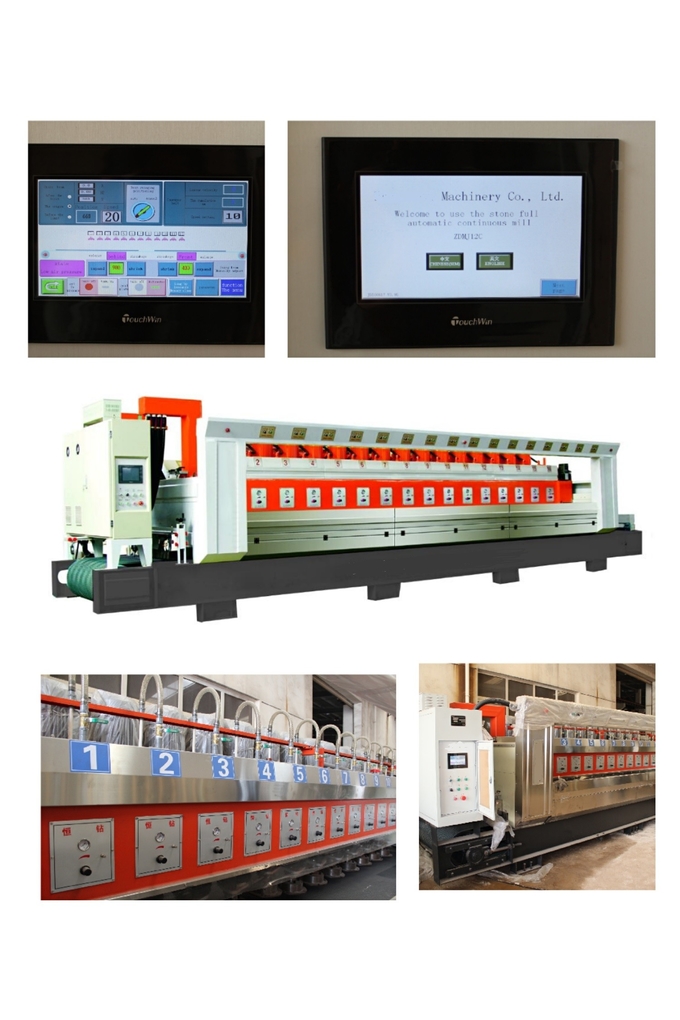

6. PLC controlling system, touch screen,easy operation,one worker can simply handle a machine.

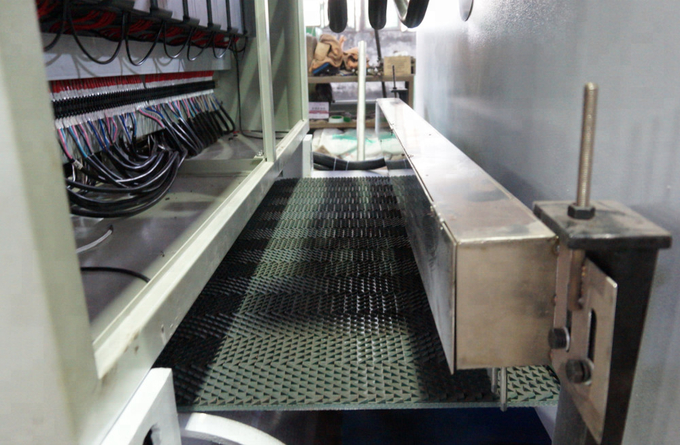

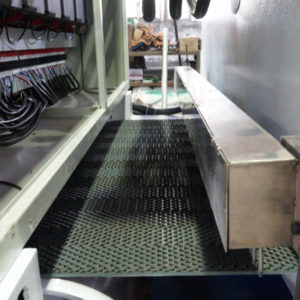

7. Conveyor self-cleaning and stone chip removing system.
8. Special pressing rollers are designed to make sure the workpieces are tightly and accurately fixed and positioned to get a good quality profiling with high precision.
|
TECHNICAL DATA
|
||||
|
Model No.
|
MCMJ-8C
|
MCMJ-12C
|
MCMJ-16C
|
MCMJ-20C
|
|
Quantity of grinding head (pc)
|
8
|
12
|
16
|
20
|
|
Power of spindle motor (kw)
|
15
|
15
|
15
|
15
|
|
Gross power (kw)
|
141
|
201
|
270
|
329
|
|
Useful working width (mm)
|
400-1250
|
400-1250
|
400-1250
|
400-1250
|
|
Processable thickness (mm)
|
10-60
|
10-60
|
10-60
|
10-60
|
|
Speed of belt advance (m/min)
|
0-3.8
|
0-3.8
|
0-3.8
|
0-3.8
|
|
Water consumption (m3/min)
|
15
|
20
|
25
|
30
|
|
Gross weight (kg)
|
17000
|
21000
|
25000
|
32000
|
|
Demension (L x W x H – cm)
|
750x210x265
|
970x210x265
|
1180x210x265
|
1400x210x265
|
