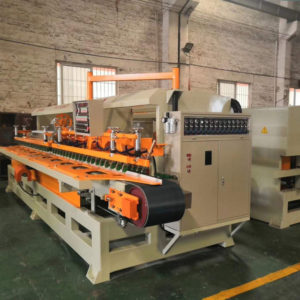

5 HEADS MULTI FUNCTION STONE EDGE SHAPING PROFILING POLISHING MACHINE
Features and advantages:

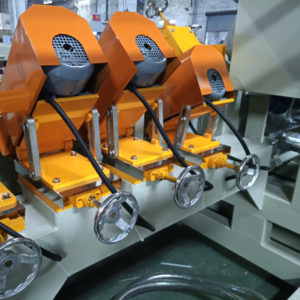

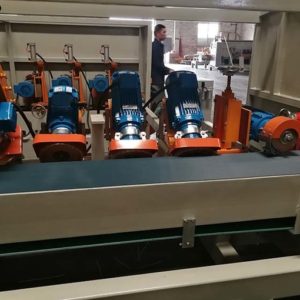

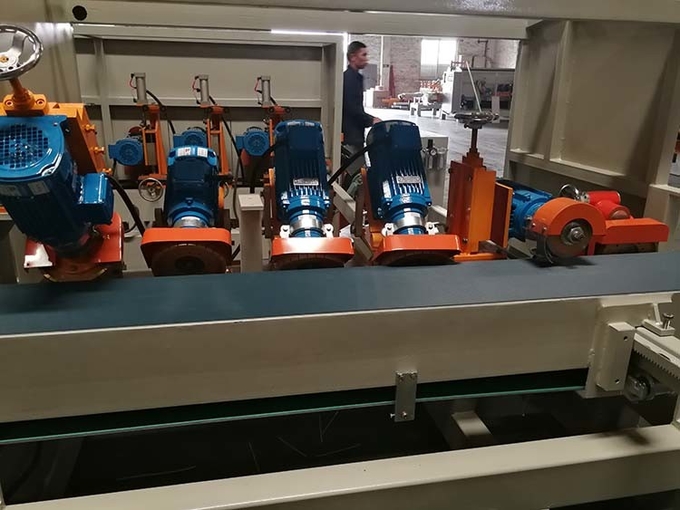

This machine has 5 heads, 2 profling and 3 polishing heads .
It is a multi function fabrication machine, each motor shaft can rotate angle from 90-180 degree. means it can grind both horizontal and vertical.

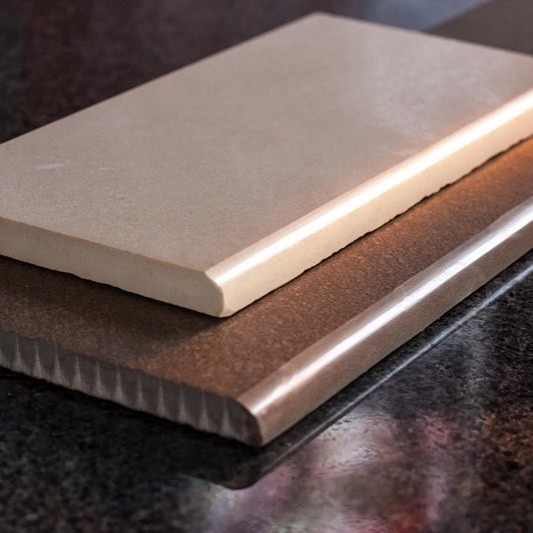

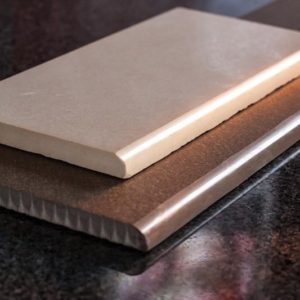

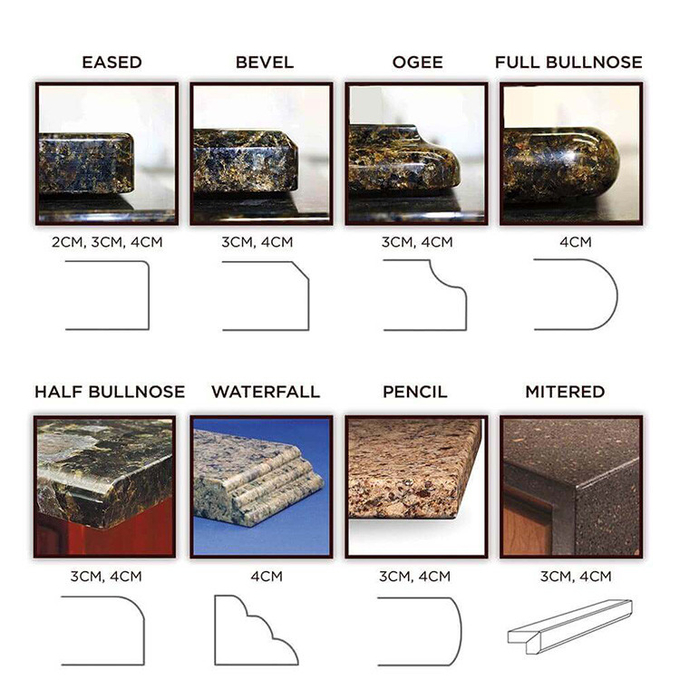

So it can do many kinds of tile edges for benchtops, stair step bullnose, skirting half bullnose.
| Technical Data | unit | 8 heads | 10 heads | marbel polishing machine heads |
| Nos. of Polishing Wheel | pcs | 8 | 10 | marbel polishing machine |
| Dia. Of Polishing Wheel | mm | Φ 125 | Φ 125 | Φ 125 |
| Nos. of Chamfering Wheel | pcs | 4 | 4 | 4 |
| Dia. Of Chamfering Wheel | mm | Φ 125-200 | Φ 125-200 | Φ 125-200 |
| Nos. of Grooves | line | 3-4 | 3-4 | 3-4 |
| Dia. of Grooves Wheel | pcs | Φ 150 | Φ 150 | Φ 150 |
| Working width | mm | 100-1200 | 100-1200 | 100-1200 |
| Working Thickness | mm | 6-20 | 6-20 | 6-20 |
| Processing Speed | M/MIN | 1-3 | 1-5 | 1-7.5 |
| Power Supply | 380V 3ph 50HZ | 380V 3ph 50HZ | 380V 3ph 50HZ | |
| Total Power | KW | 21 | 23 | 27 |
| Air Consumption | L/MIN | 32 | 32 | 32 |
| Water Consumption | L/MIN | 490 | 490 | 490 |
| Outer dimensions(L*W*H) | M | 5 x 2 x 1.8 | 5.2*2*1.8 | 6*2.2*1.8 |
| total weight | KG | 5000 | 5500 | 6200 |
