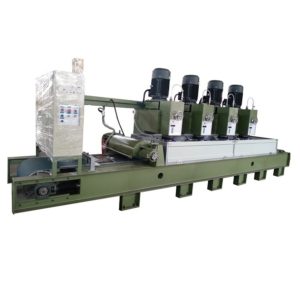

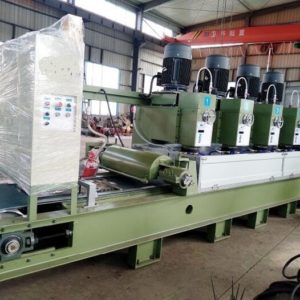

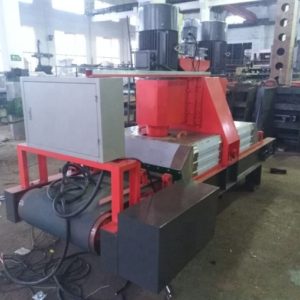

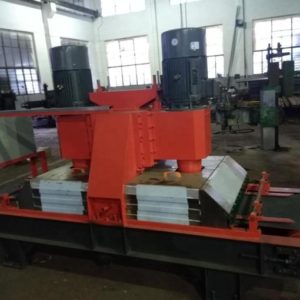

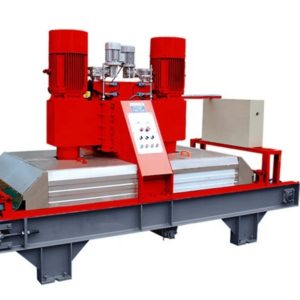

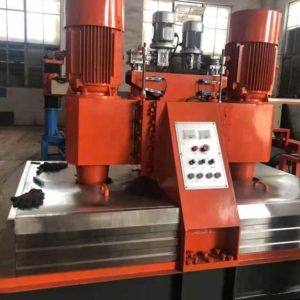

Stone Calibrating Machine

Stone Calibrating machine is the leveling equipment for stone slab production line. The slab is calibrated to have same thickness by this machine and then polished by polishing machine.
1. Working width: 600~2000mm, working thickness: 10~40mm.

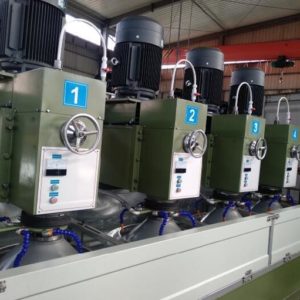

2. 2~8 swaying type diamond grinding plates, 22 kw driven motor for per head, feed-in of the blades are controlled automatically by speed reducer motor.
3. Conveying of slabs is controlled by cycloidal-pin speed reducer with frequency converter
4. Water consumption: about 70~200 L/min;

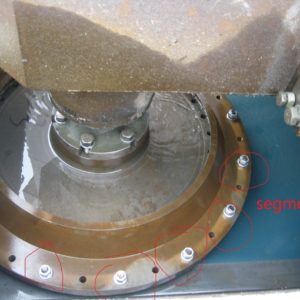

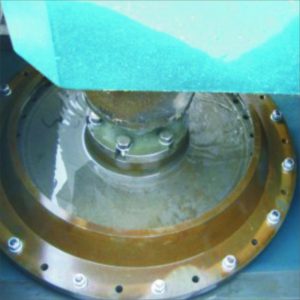

5. Disc diamond grinding heads:2~8 heads

Inquiry Now
Category: Tags: , ,

Stone Calibrating machine is the leveling equipment for stone slab production line. The slab is calibrated to have same thickness by this machine and then polished by polishing machine.

1. Working width: 600~2000mm, working thickness: 10~40mm.
2. 2~8 swaying type diamond grinding plates, 22 kw driven motor for per head, feed-in of the blades are controlled automatically by speed reducer motor.
3. Conveying of slabs is controlled by cycloidal-pin speed reducer with frequency converter
4. Water consumption: about 70~200 L/min;
5. Disc diamond grinding heads:2~8 heads

Model OMC-DH4 Customized order
Calibrating head Quan. 4
Calibrating width 600-800mm up to 1800mm
Calibrating depth 10-40mm up to 150mm
Calibrating speed 0.5-2m/min 0.5-2m/min
Motor power for up-down 0.37×4=1.48kw 0.37×4=1.48kw
Motor power for moving 2.2kw 2.2kw
Main motor power 18.5×4=74kw According to design
Total power 77.68kw According to design
Dimension 6200x1600x2000mm According to design
Weight 5000kg According to design
