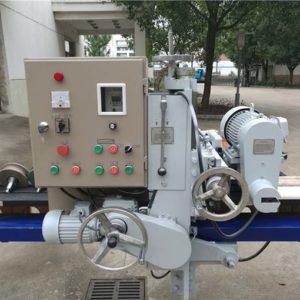

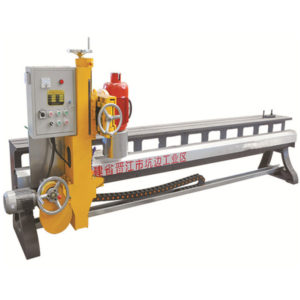

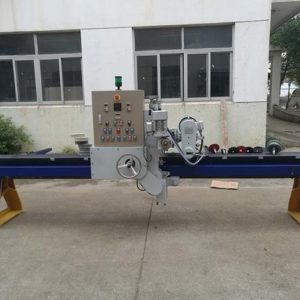

Single Head Stone Edge Shaping Machine

Single Head Stone Edge Shaping Machine:

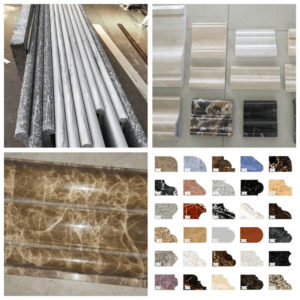

1) Multi-function Stone Polishing Cutting Machine is mainly designed to profile and polish the straight & curved edge and the surface of stone slab.

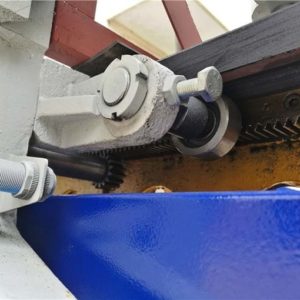

2) With the features of semi-automation,fully oil-immersed track,digital speed-control system,humanization design of control board,etc.
3) Also it can do some simple cutting & drilling jobs.
4) It’s really a good help to countertop,vanitop fabricators.
5) Our Quality have been approved by European & American market.

Inquiry Now

Single Head Stone Edge Shaping Machine:
1) Multi-function Stone Polishing Cutting Machine is mainly designed to profile and polish the straight & curved edge and the surface of stone slab.
2) With the features of semi-automation,fully oil-immersed track,digital speed-control system,humanization design of control board,etc.
3) Also it can do some simple cutting & drilling jobs.
4) It’s really a good help to countertop,vanitop fabricators.
5) Our Quality have been approved by European & American market.
6) We can offer our clients good after-sale service and professional technical assistance.
4. Packaging:Export sea-worthy wooden case, a 20′ container can load 2 sets.
5. Delivery:Usually we can make shipment within two weeks after receiving your payment or L/C.
6. Payment:We accept T/T in advance or 30% payment in advance and the rest 70% by irrevocable L/C.

3. Technical Data:

Maximum processing length 3300mm
Maximum processing width 600mm
Maximum processing thickness 200mm
Gross power 3.75kw-4.75kw

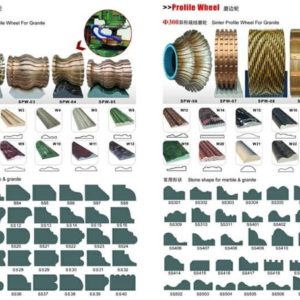

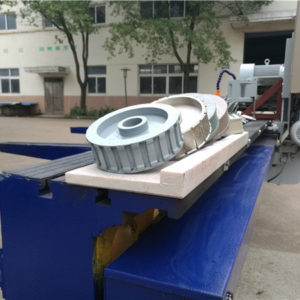

Grinding wheel diameter 140-200mm
Cutting blade diameter 115/125mm
Drilling bit diameter Ø6mm-Ø100mm
Grinding wheel rotation speed 1900/3800 rpm
Travel speed 0.38-1.92m/min(50HZ)

0.46-2.30m/min (60HZ)

Shipping weight 1500kg
Overall dimension: 3800x1500x1510mm(LxWxH)
