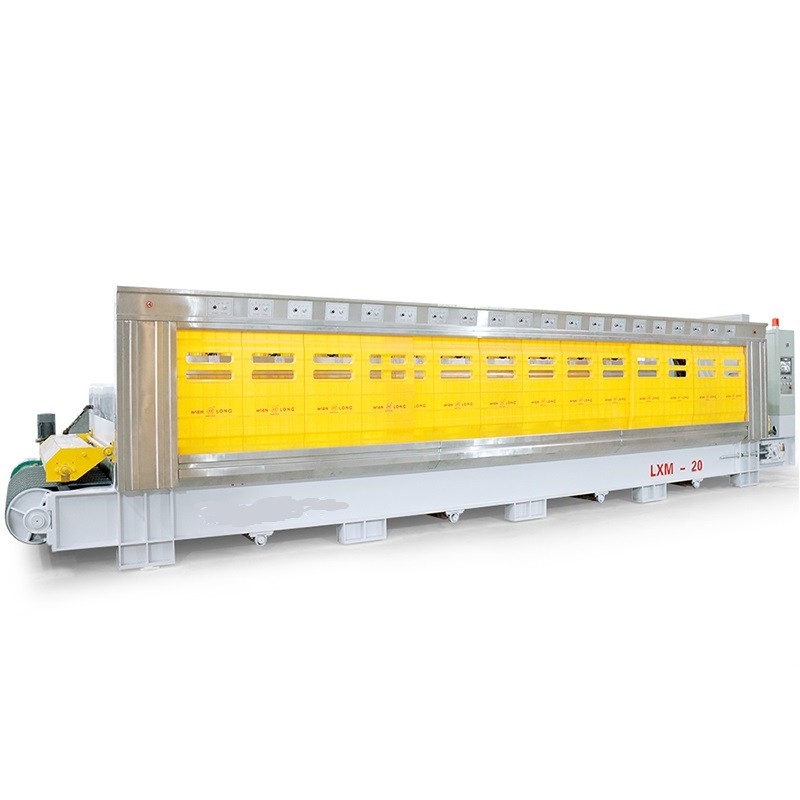

Automatic Stone Polishing Machine

Multifunctional Manufacturer Automatic Polishing Machine For Stone Slate Mode: SCT-8/12/16/20/24(disc type):

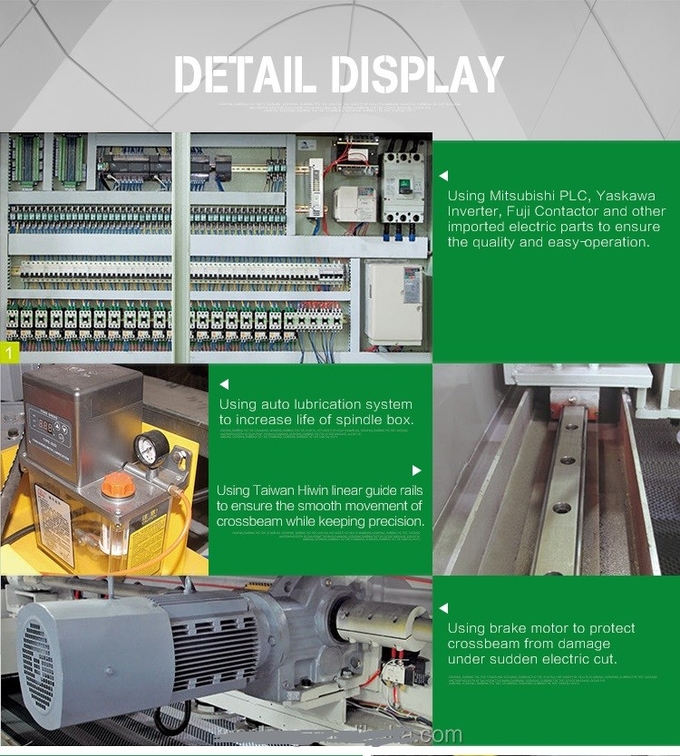

Usage: The machine is made by standard castings and steel, branded electrical equipment made in German, Japan and Taiwan, as well as branded bearing, motor and gear reducer.

Product Features:
1: Adopted advanced combination of grinding head and the control mode.
2: The conveying belt is famous brand with same thickness, which assures the thickess of slab uniform.
3: Low labor intensity ,and the finished material are smoothe and gloss.
4: PLC controlling system, touch screen,easy operation,one worker can simply handle a machine.

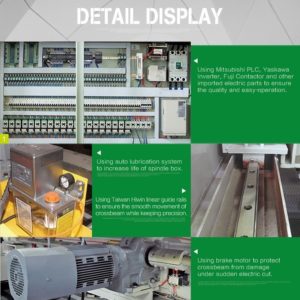

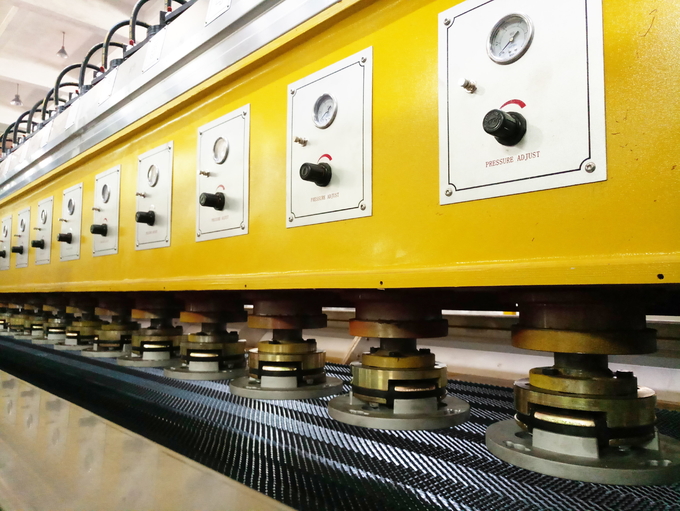

The control system of this machine adopts PLC terminal control with LCD touch screen terminal as HMI for parameter setting and fault prompts during operation, etc. It is applicable to continuous grounding and polishing granite tile. Operating speeds of plate conveying and crossbeam of polishing disc are controlled by frequency converter; working pressure and the polishing width of tile-plate are adjustable within the setting values. This machine can also automatically identify the shape of tile-plate, so that each polishing disc (polishing head) could automatically lift and lower according to the identified shape of tile-plate, and conduct tracking records for tile-plate polishing at the same time. The overall machine is produced according the standard requirements with performance up to the leading domestic level.

Product Specification:

Model	Unit	SCT-8	SCT-12	SCT-16	SCT-20	SCT-24
The number of polishing heads	piece	8	12	16	20	24
Thickness of the effective work	mm	15-50	15-50	15-50	15-50	15-50
Effective working width	mm	300-1300	300-1300	300-1300	300-1300	300-1300
Belt feed rate	m/min	0-2.5	0-3	0-3.5	0-4	0-5
Grinding motor power	kw	7.5	7.5	7.5	7.5	7.5
Total power	kw	65	95	125	155	190
Water consumption	m3/h	8	12	16	20	25
Dimensions	m	4.2×2.2×2.5	6×2.2×2.5	7.8×2.2×2.5	9.3×2.2×2.5	10.8×2.9×2.5
