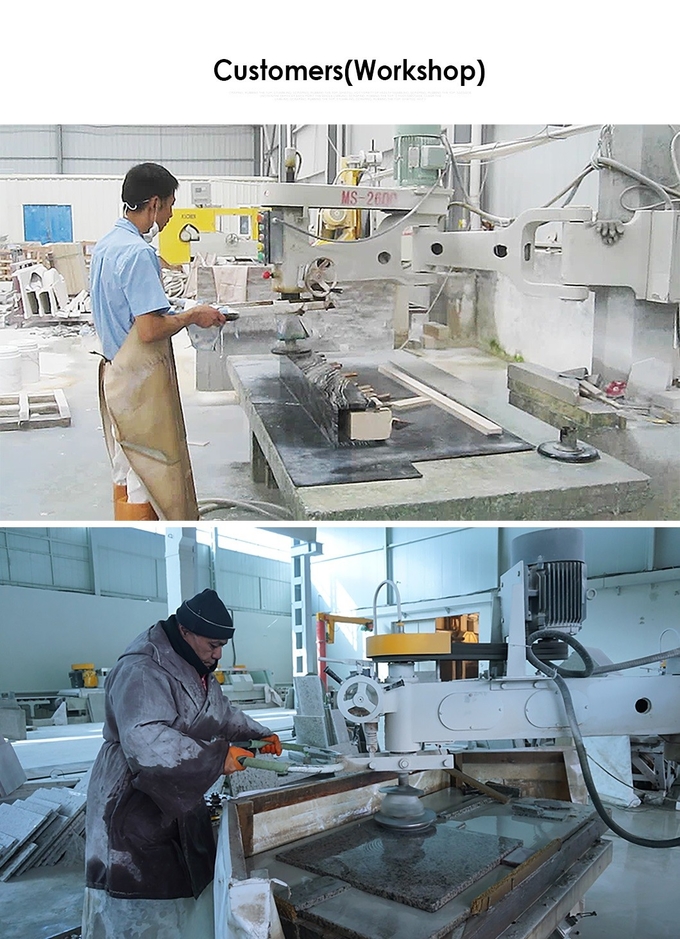

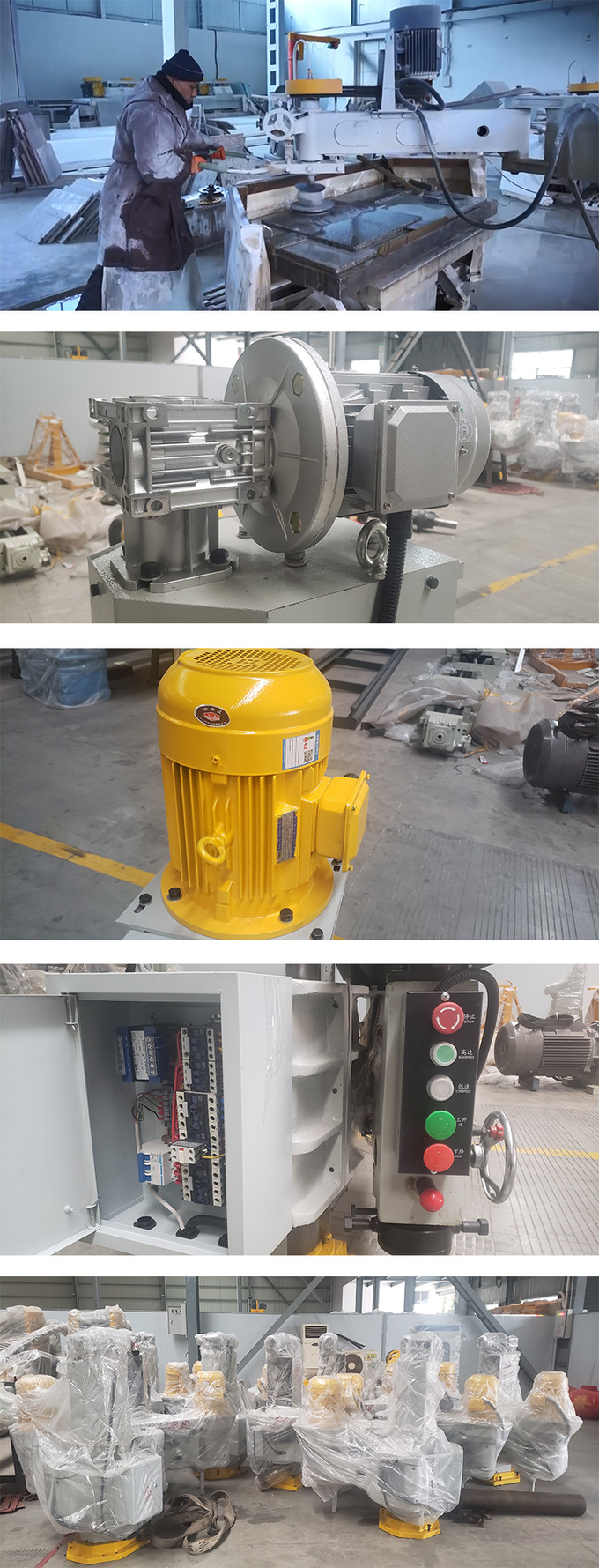

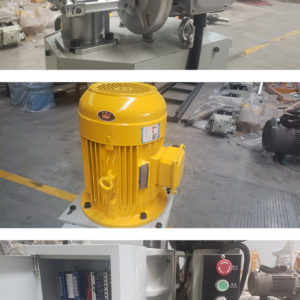

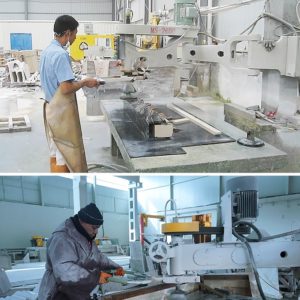

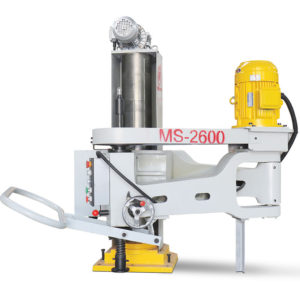

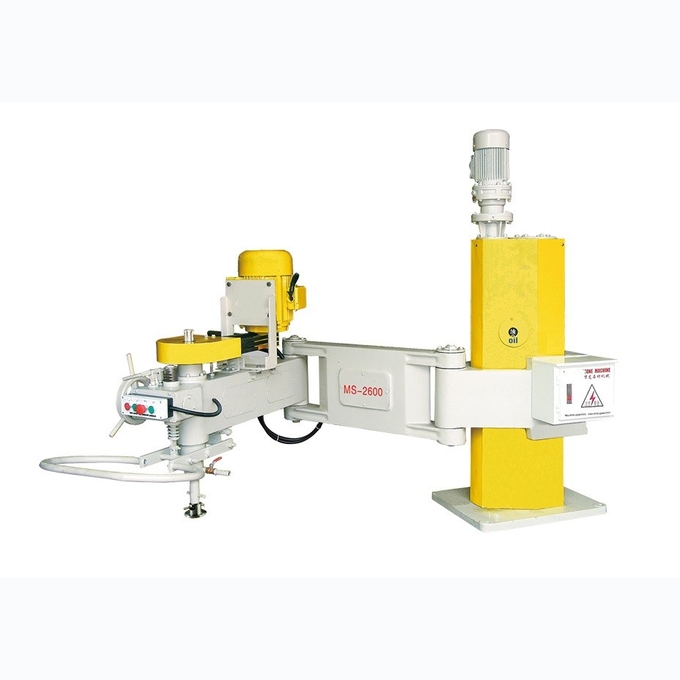

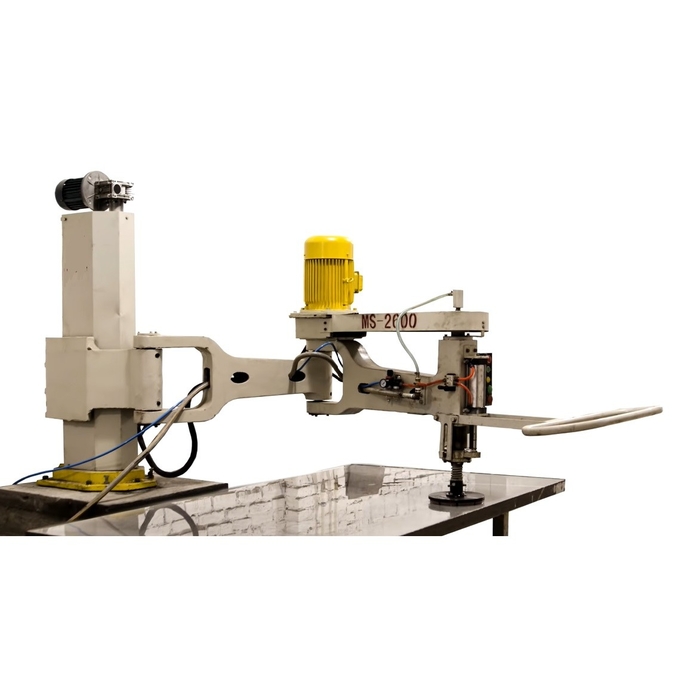

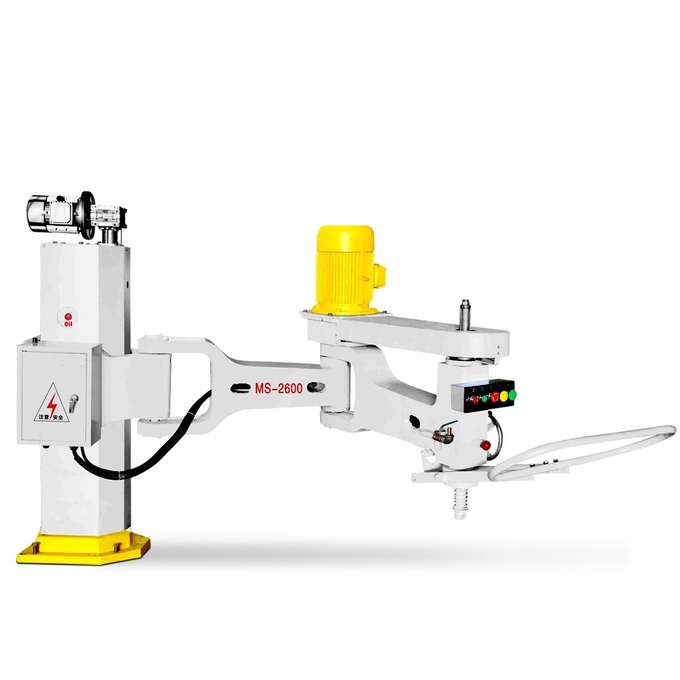

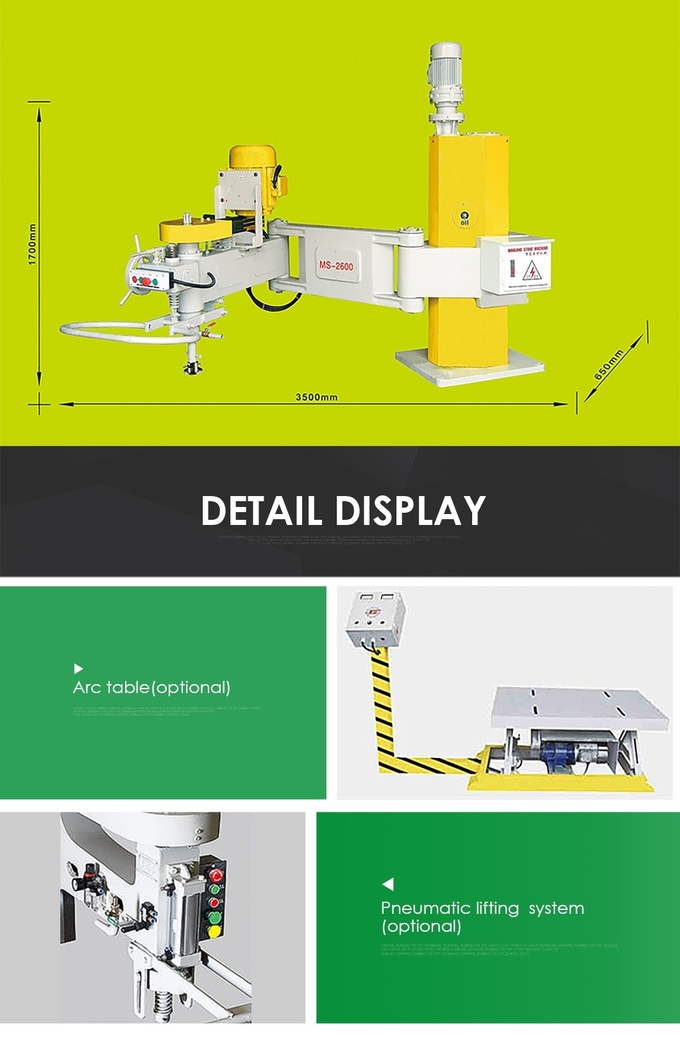

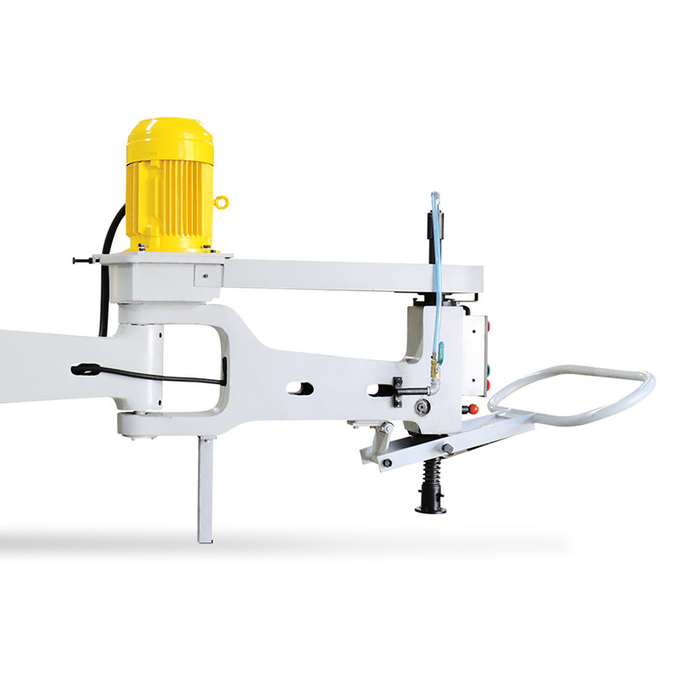

HHMS-1800 operated manually,Manual Stone Polishing Machine uses electric control for steady automatic ups and downs. It is suitable for surface grinding and polishing of granite, marble and quartz slab, especially for tombstones, slabs and mosaic which needs to change the thickness frequency. It works on stone with various thickness from 10 to 400mm.This machine uses round column as its guide slip surface for steady automatic ups and downs. Two optional main drive motors (single speed and dual speeds) are upon the client’s choice. It is applicable to surface grinding and polishing of granite and marble. especially for tombstones, slabs and mosaic. Available for Arc slab polishing as well if assorted with table.
Main Features
1) Manual type, Easy to set up, easy for Operation..
2) Handler of grinder 360° free rotating, moving semi-automatically and manually.
3) Cantilever by electric lift, larger adjustment range.
4) Adopts air-actuated cylinder to impulse grinding disk for polishing throughly.
5) Cheap but still functional , high cost-effective.
6) Tools fast change.
|

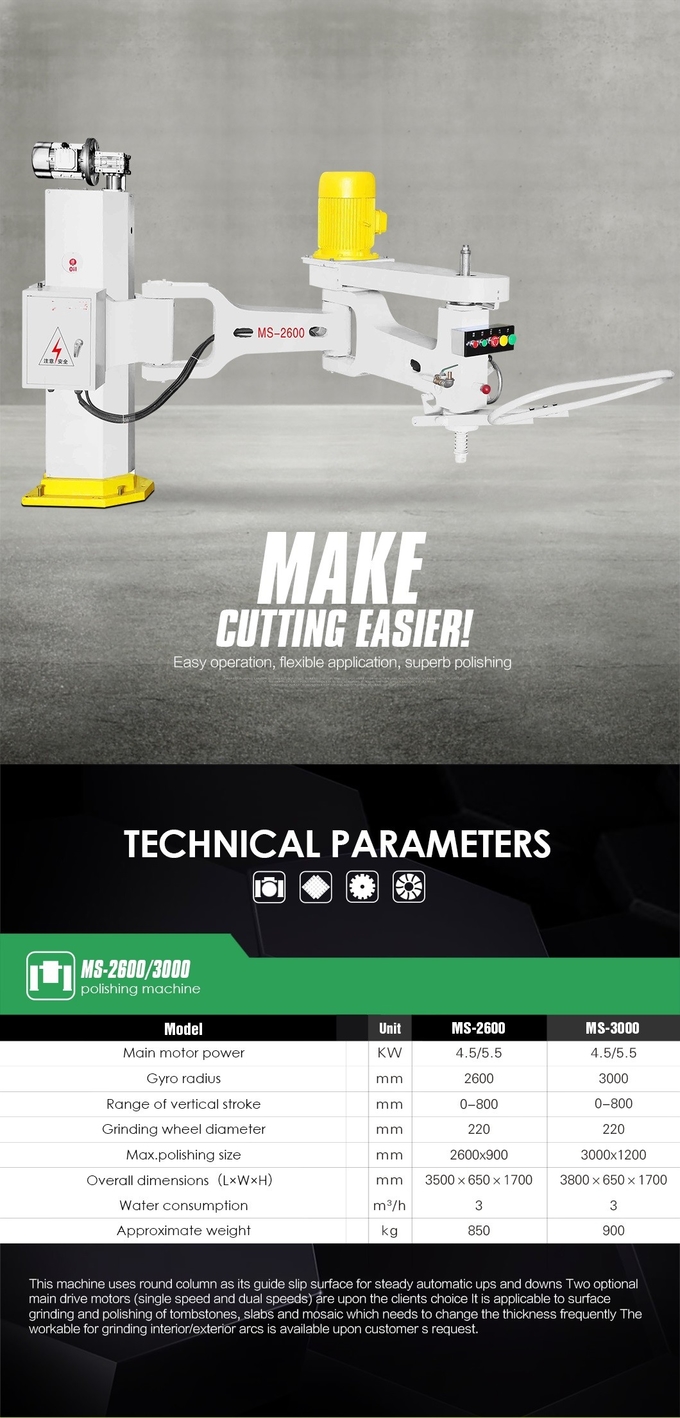

Model
|
|
MS-2600
|
|
Gyro radius
|
mm
|
2600
|
|
Range of vertical stroke
|
mm
|
0-800
|
|
Grinding wheel diameter
|
mm
|
220
|
|
Overall dimensions (L x W x H)
|
mm
|
3500 x 650 x 1700
|
|
Main motor power
|
kw
|
5.5
|
|
Water consumption
|
m³/h
|
3
|
|
Approximate weight
|
kg
|
850
|
