Double Blades Granite Mining Machine

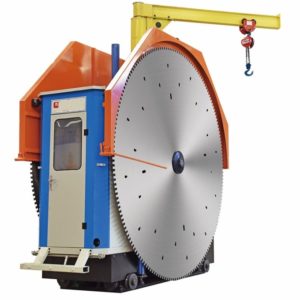

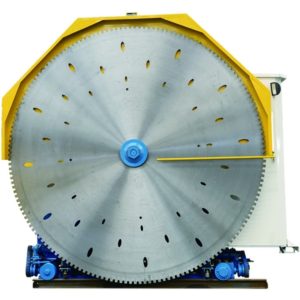

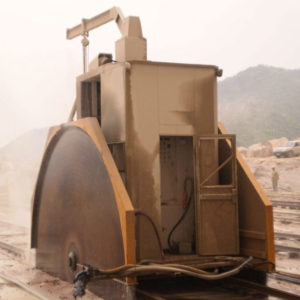

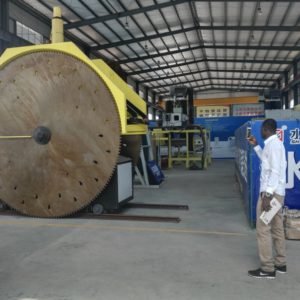

Double -blade Quarry stone cutting machine
Structural characteristics:
1.This machine is a modification of original double-blade mining machine. The rising and falling of main spindle is controlled by the hydraulic pressure advantages are small gap,a little wear,no vibration,stable structure and high cutting precision;the sevice life of cutter head is increased.
2.The cylindrical guide rall is fully sealed to ensure that the gaide rail id pollution-free and machine has an original lubrication system,so the sevice life and utilzation ratio are effectively increased and maintenance times and costs are reduced.It is a mine quarrying machine with significantly increased comprehensive benefits.

Inquiry Now
Category: Tags: , ,

Double -blade Quarry stone cutting machine
Structural characteristics:
1.This machine is a modification of original double-blade mining machine. The rising and falling of main spindle is controlled by the hydraulic pressure advantages are small gap,a little wear,no vibration,stable structure and high cutting precision;the sevice life of cutter head is increased.
2.The cylindrical guide rall is fully sealed to ensure that the gaide rail id pollution-free and machine has an original lubrication system,so the sevice life and utilzation ratio are effectively increased and maintenance times and costs are reduced.It is a mine quarrying machine with significantly increased comprehensive benefits.

Technical parameters:

Name Unit MCSN-1360/1900 MCSN-1500/2000
diameter of blade mm 2200-3500*2 φ2200-φ3600 * 2
scope of cutting depth mm 850-1550 850-1550
scope of cutting width mm 1360-1900 1500-2000
power of main-drive kw 30-45*2 30-45×2
water consumption m3/h 5 5
total power kw 79.2-95.2 79.2-95.2
approximae weight kg 8000 8000
Overall dimension(L*W*H) mm 3550*1450*2850

3550x1600x2850
