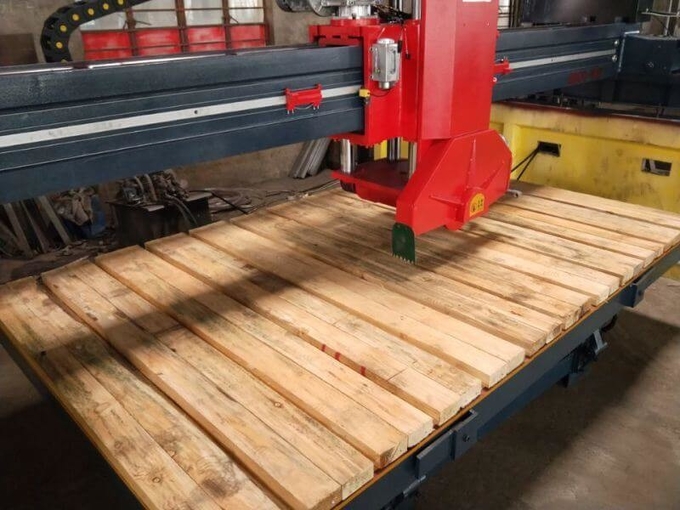

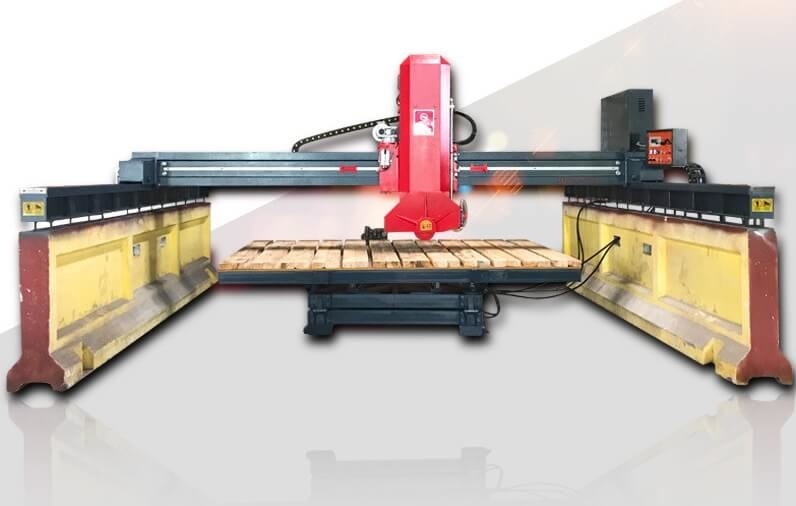

Automatic Stone Saw Machine

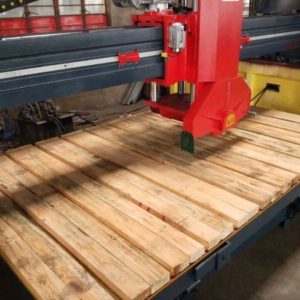

Automatic Stone Saw Machine - Image 2

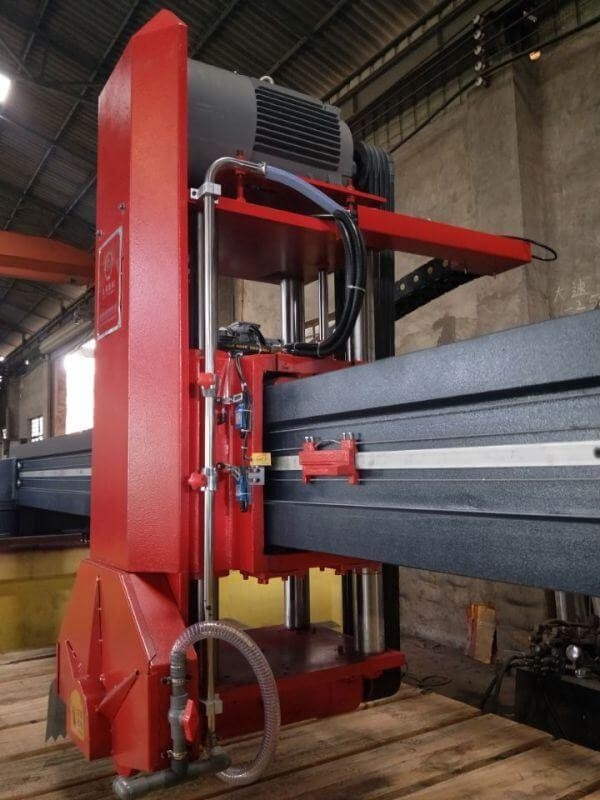

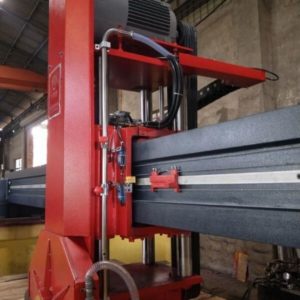

Automatic Stone Saw Machine - Image 3

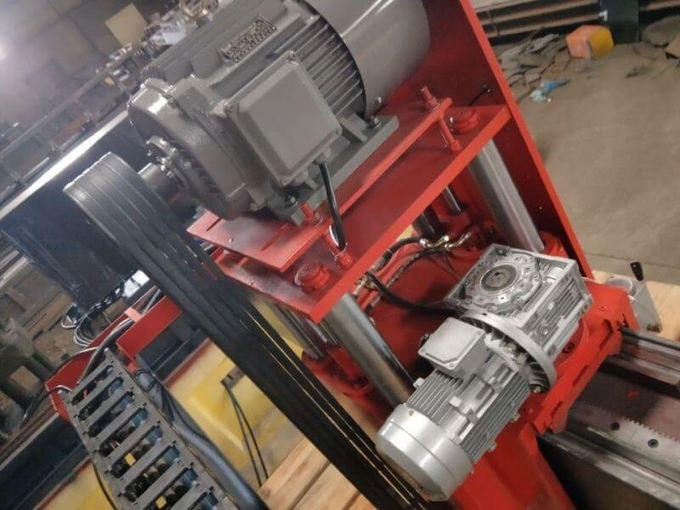

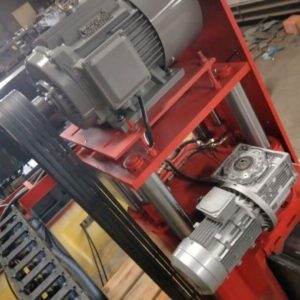

Automatic Stone Saw Machine - Image 4
Automatic Stone Saw Machine - Image 5

Automatic Stone Saw Machine

Stone Saw Machine is a automatic bridge saw machine for cutting marble granite and other stone materials. A full set of stone saw machine mainly includes main bridge part, side beam part, table part, steel stand or concrete stand and hydraulic part. Most of the saw machine is designed with PLC and screen computer system. These two systems are control system for stone saw machine. Before machine ship out to customers,we will test machine and make sure the saw machine is working in his best conditions. Below you can see some other detail photos of this stone saw machine. What you see here is a standard stone saw machine. When we say standard stone saw machine, it mainly includes the follows features.

Inquiry Now
Category: Tags: , ,

Automatic Stone Saw Machine

Stone Saw Machine is a automatic bridge saw machine for cutting marble granite and other stone materials. A full set of stone saw machine mainly includes main bridge part, side beam part, table part, steel stand or concrete stand and hydraulic part. Most of the saw machine is designed with PLC and screen computer system. These two systems are control system for stone saw machine. Before machine ship out to customers,we will test machine and make sure the saw machine is working in his best conditions. Below you can see some other detail photos of this stone saw machine. What you see here is a standard stone saw machine. When we say standard stone saw machine, it mainly includes the follows features.

Stone Saw Machine Co., Ltd is a large-scale comprehensive enterprise engaged in stone machinery with R&D, manufacture, sales and service.

The Company is located in Xiamen City, the largest stone material base in China.

Sino Star stone machinery is the brand product in China’s stone industry. we export our products to the southeast Asia, Africa, South America and other dozens of countries, getting highly praise from our customers overseas it relys on the high quality, exquisite technology and perfect service system.

Technical parameters

Model DTQ-450 DTQ-600 DTQ-700 DTQ-800
Max. cutting size 3200*2000*100mm 3200*2000*175mm 3200*2000*225mm 3200*2000*275mm
Diameter of blade Φ400-Φ450mm Φ400-Φ600mm Φ400-Φ700mm Φ400-Φ800mm
Size of worktable 3200*2000mm 3200*2000mm 3200*2000mm 3200*2000mm
Vertical turning angle of worktable 0-85° 0-85° 0-85° 0-85°
Rotation angle of worktable 0-90/0-360° 0-90/0-360° 0-90/0-360° 0-90/0-360°
Main motor power 15KW 18.5KW 18.5KW 18.5KW
Water consumption 3.5m³ /h 3.5m³ /h 3.5m³ /h 3.5m³ /h
Overall dimension 6000*4800*2600mm 6000*4800*2800mm 6000*4800*3150mm 6000*4800*3300mm
Total weight 8674KG 9161KG 10151KG 10650KG
