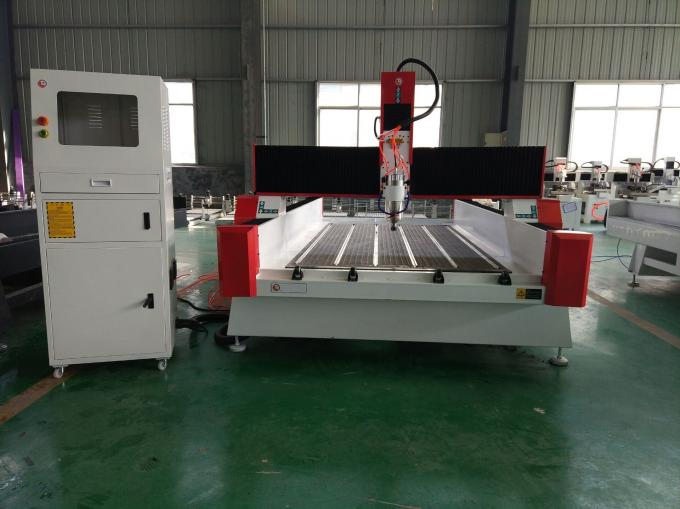

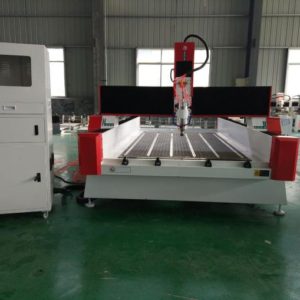

3d Stone Cnc Router Machine For Carving And Cutting For Marble Tombstone

Machine Features

1. Adopt Taiwan Hiwin square rails, double-row four colums slide block, high precision, huge bearing capacity, good moving
stability and tools falling accuracy.

2. Whole machine welded with thickess steel tubes, not easy to be deformed. Working table backed with steel plate, bearing
capacity more than1ton

3. Constant power spindle motor, big cutting intensity and high efficiency.

4. Dust proof and water proof design protects the transmission components.

5. Equipped with water tank and automatic water cooling system.

Category: Tags: , ,

Machine Features

1. Adopt Taiwan Hiwin square rails, double-row four colums slide block, high precision, huge bearing capacity, good moving
stability and tools falling accuracy.2. Whole machine welded with thickess steel tubes, not easy to be deformed. Working table backed with steel plate, bearing
capacity more than1ton

3. Constant power spindle motor, big cutting intensity and high efficiency.

4. Dust proof and water proof design protects the transmission components.

5. Equipped with water tank and automatic water cooling system.

Specification

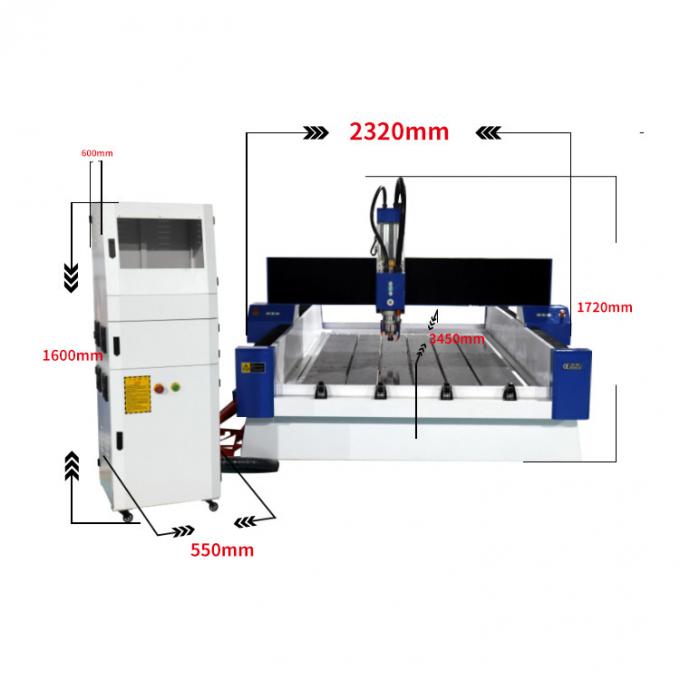

Effective working area
(X=1300mm)*(Y=2500mm)
Max Feeding Height
400mm
Machine Body
8mm thickness welded steel tube, cast iron vertical shafts and steel gantry
Working table
Aluminum T-slot table with PVC
Guide rail
Hiwin linear square guide rail
Driving method
Taiwan Gears Rack drive for X Y-axis,lead screw drive for z-axis
Motor and driver
Stepper motor(450B) and Leadshine driver(MA860H)

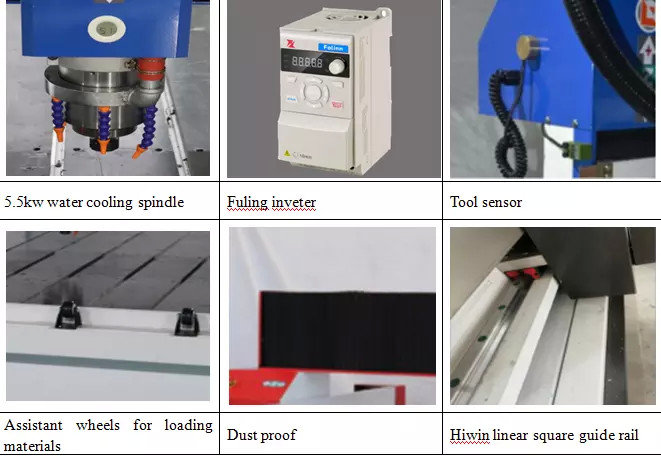

Spindle Motor
5.5KW water cooling spindle
Invert
Fuling invert
Spindle collect type
ER25
Voltage
AC220V, 1 phase/3phase, 50-60Hz
Control system
Mach 3 USB control system
Control Cabinet
Independent
Other
Water tank(Bidirectional cooling system)

Ask For Quote
