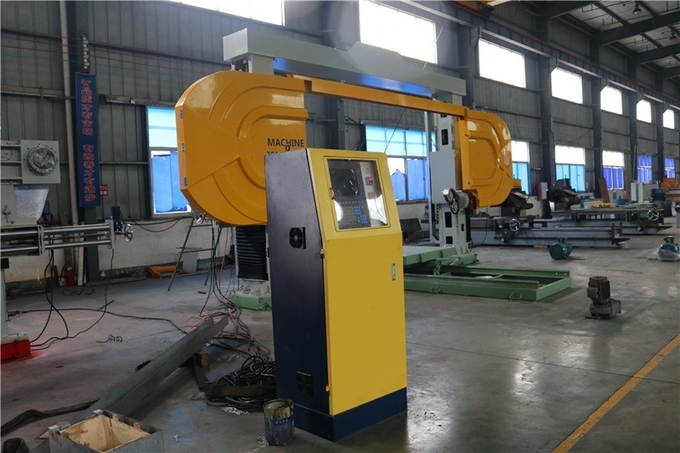

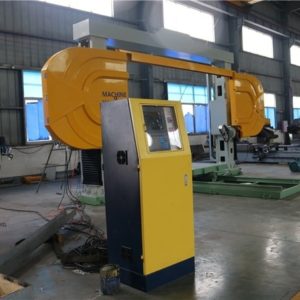

Single Wire Saw Machine For Stone Cutting

Single Wire Saw Machine for Stone Cutting

Features:

1. The degree of automation is high. The electrical system adopts the CNC technician; the main running adopts the stable, good quality and strong servo motor. The running of the wheel adopts the stepping motor.

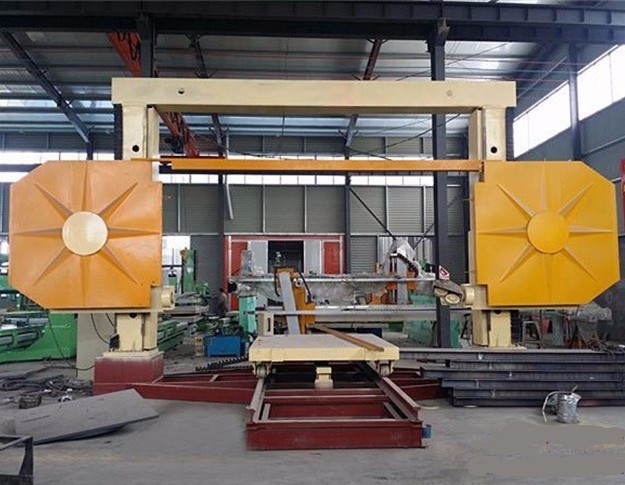

2. The structure is reasonable, the running is stable. The main frame is gantry type. And because the up/down of the two flywheels adopt the roller type structure, the up/down action is light and flexible, stable. The wire wheel is through balance adjustment so its work is more stable. The up/down is controlled by separate stepping motors, so it is easy for adjustment and easy to keep in the same height.

3. The operation is easy. It adopts the man-machine menu which is easy for reading and monitoring. Design the shape on the computer and then copy it to this system. It will change it into the procedure directly.

4. The tension of the wire adopts hydraulic system. This hydraulic system is designed with the hydraulic accumulator and discharge pressure switch which can make sure the stable pressure and is easy for maintance.

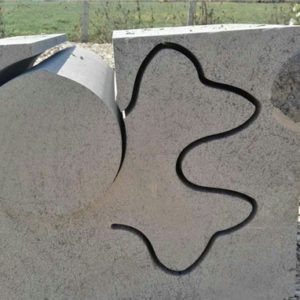

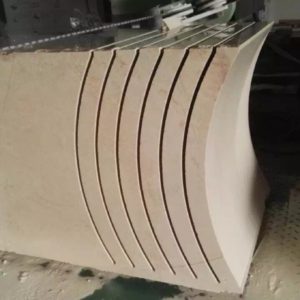

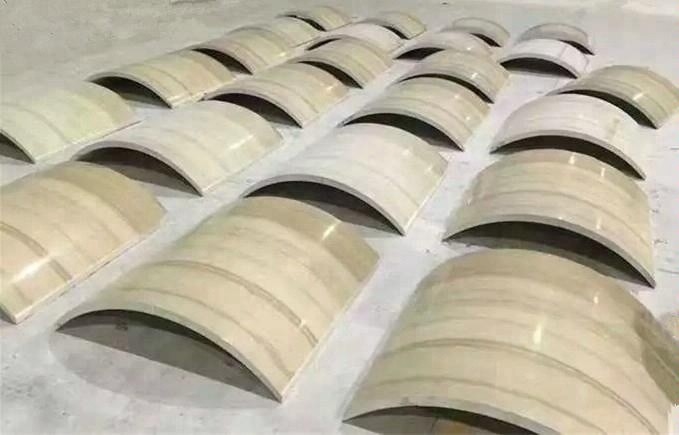

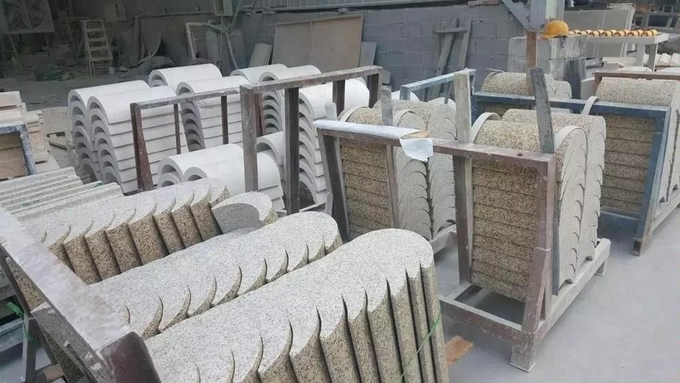

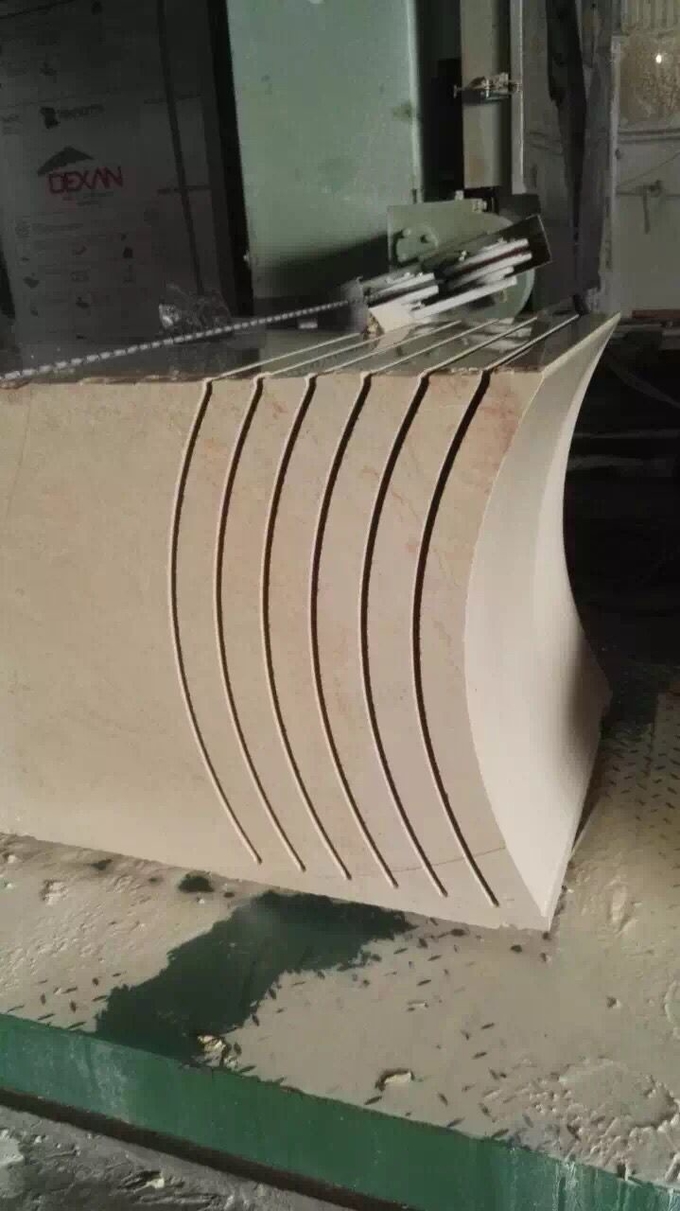

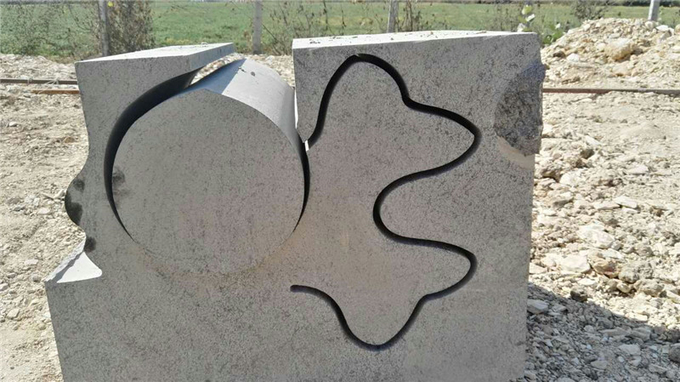

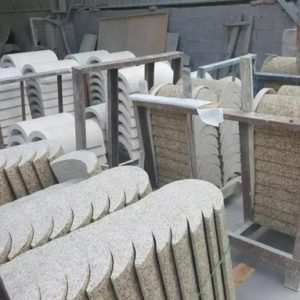

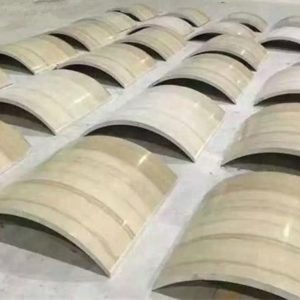

5. It is major in profiling processing of the granite and marble, can cutting different sizes of arc slab, solid columns and hollow columns and large-scale stone line, letter etc.

Technical data:

Name	Unit	MCSJ-1500	MCSJ-1800
Saw diameter	mm	Φ8-Φ10	¢8-¢10
Saw gross length	mm	17300	19300
Line speed	m/s	0-35	0-35
Lifting travel of cutter	mm	1600	1900
Max process size	mm	3500X2000X1500	3600*2000*1800
Production efficiency	m2/h	1-2 (marble) 0.5-1 (granite)	1-2(marble) 0.5-1(granite)
Full size	mm	8200×6000×3800	8800×6800×4800
Main motor	kw	11	11
Gross power	kw	19.38	19.38
Gross weight	kg	7000	9000
Worktable whether revolve		no	no
Worktable size	mm	1350*2000	1800*2000
Guide wheel diameter	mm	200	200
