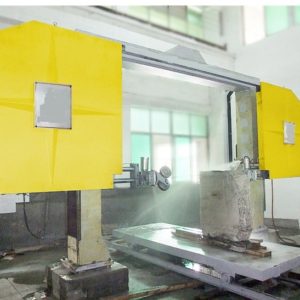

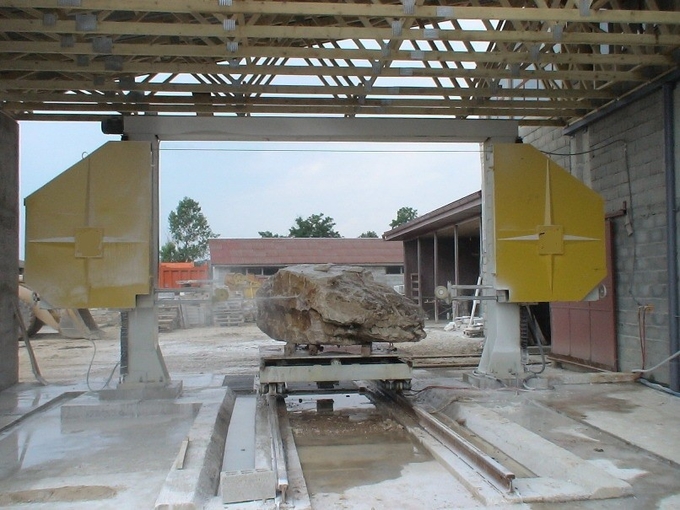

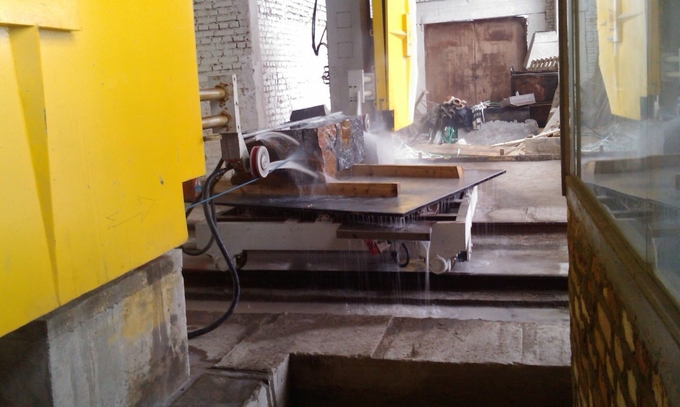

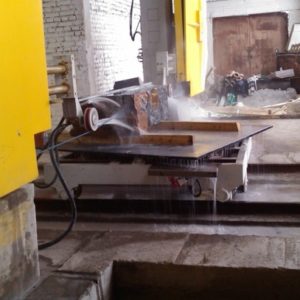

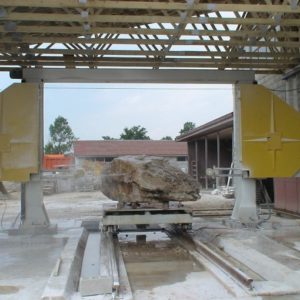

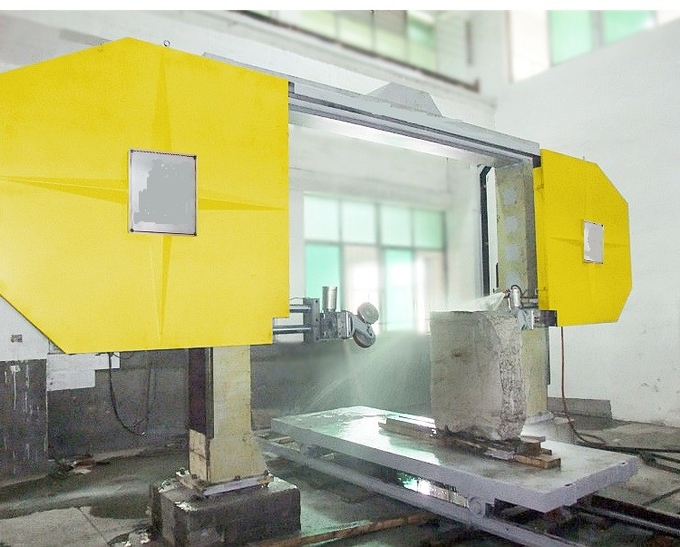

CNC Diamond Wire Saw Machine

CNC-2000 Diamond Wire Saw Block Cutting Machine combines advanced international model machine with the advanced steady performance and hihg accuracy. It achieves professional standard and widedly accepted in the world. The machine is widely used for block suqarring and dressing.

Features:

– Independent guide rails on the columns make the flywheel move up and down smoothly
– Flywheels works stably that improves the service lifetime of the diamond wire saw
– Stable and constant stretch on the flywheels enhances the cutting accuracy
– Guide wheel adopts a four-layer sealed protection system to greatly improve machining precision
– Electrical parts adopt name brand to ensure the stability and reliability
– Friendly human-machine interface and easy operation
– CE certificate
– 12month warranty

Configurations:

1. SIEMENS main motor with stronger seats.

2. PANASONIC PLC and inverter.

3. Strong cast iron HT200.

4. Touch sensitive Panel Easy for worker to operate.

5. 4-5 hours for one pcs 3500x2000mm(LxW) medium hard granite.

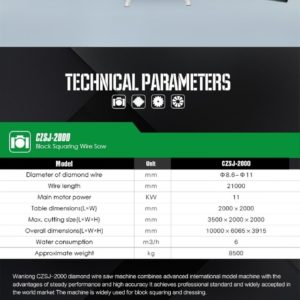

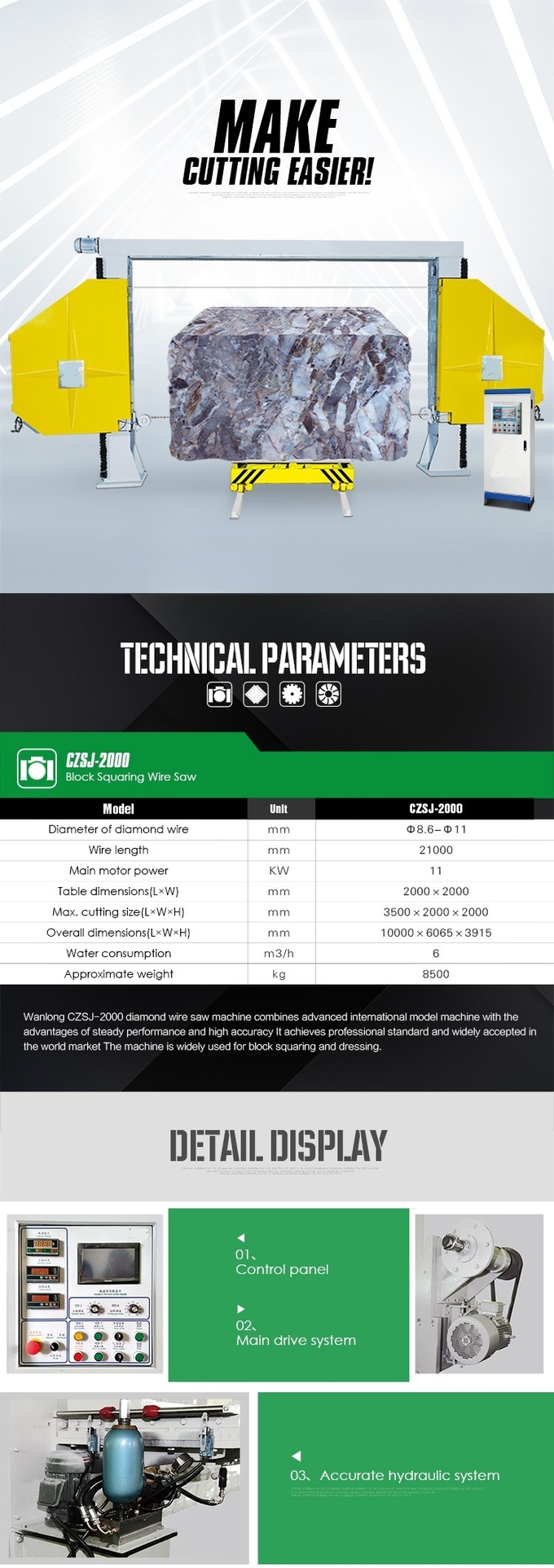

Model	Unit	CNC-2000
Diameter of wire saw	mm	11.00
Length of wire saw	mm	21000
Main motor power	kw	11
Table Dimensions	mm	2000×2000
Max. cutting size (LxWxH)	mm	3500x2000x2000
Overall dimensions (LxWxH)	mm	10000x6065x3915
Water consumption	m3/h	6
Approximate weight	kgs	8500
