Wire Saw Machine For Stone Profiling

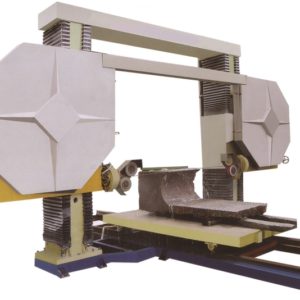

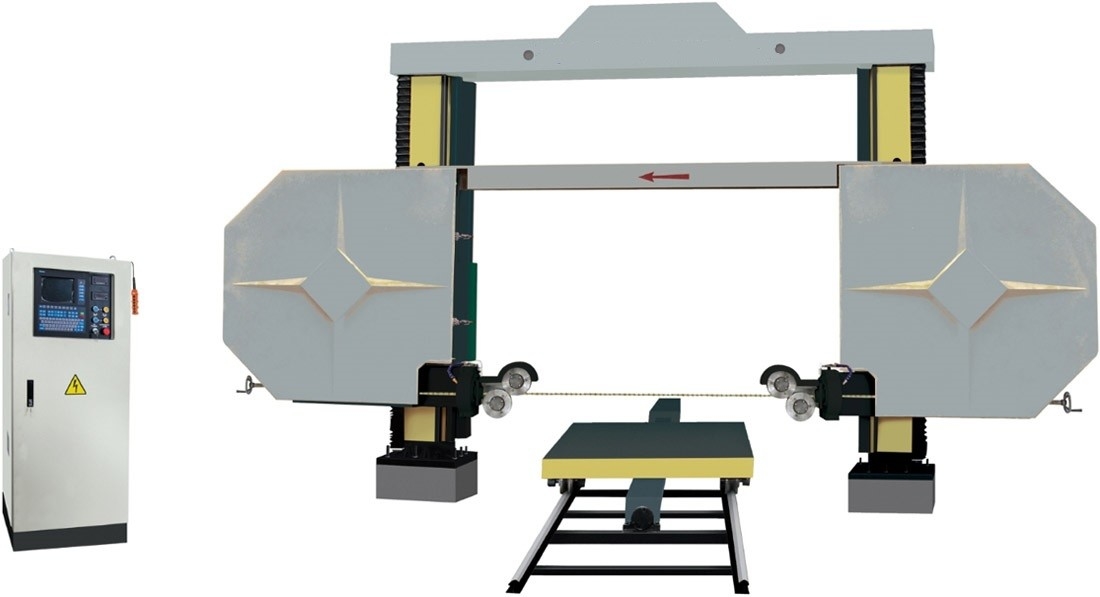

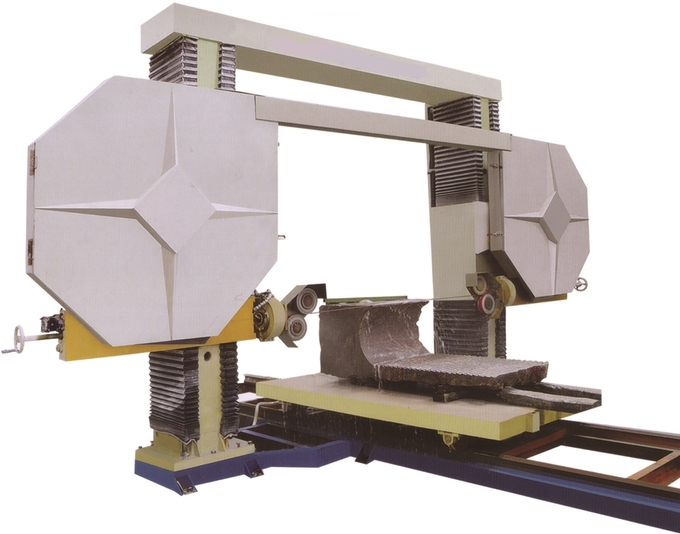

CNC Diamond Wire Cutting Machine for stone profiling

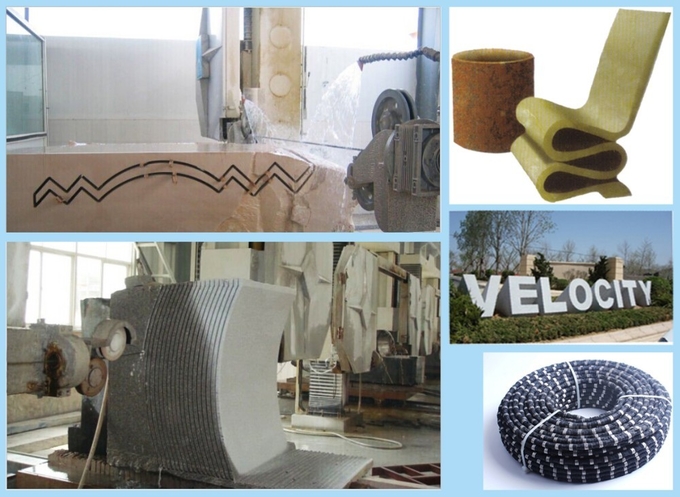

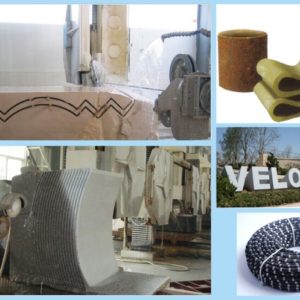

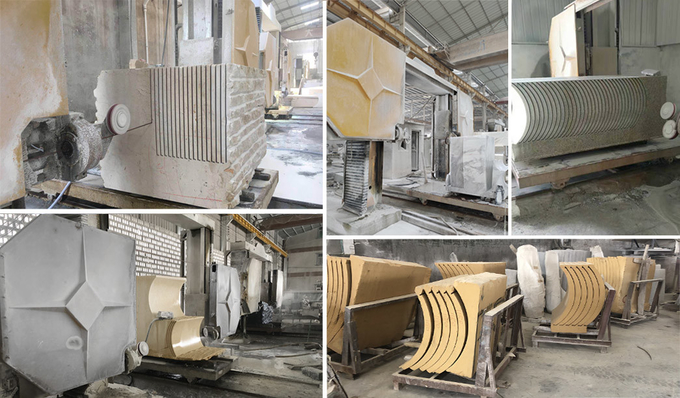

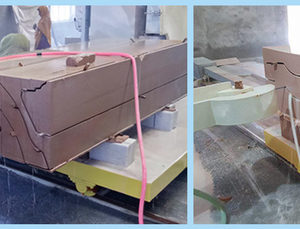

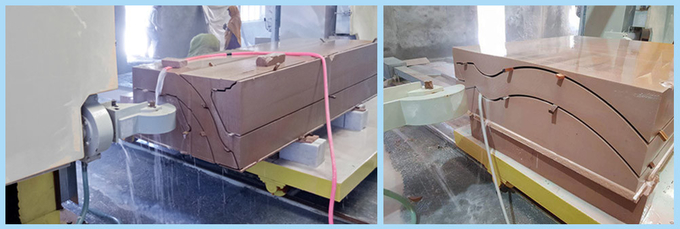

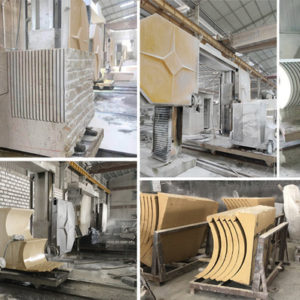

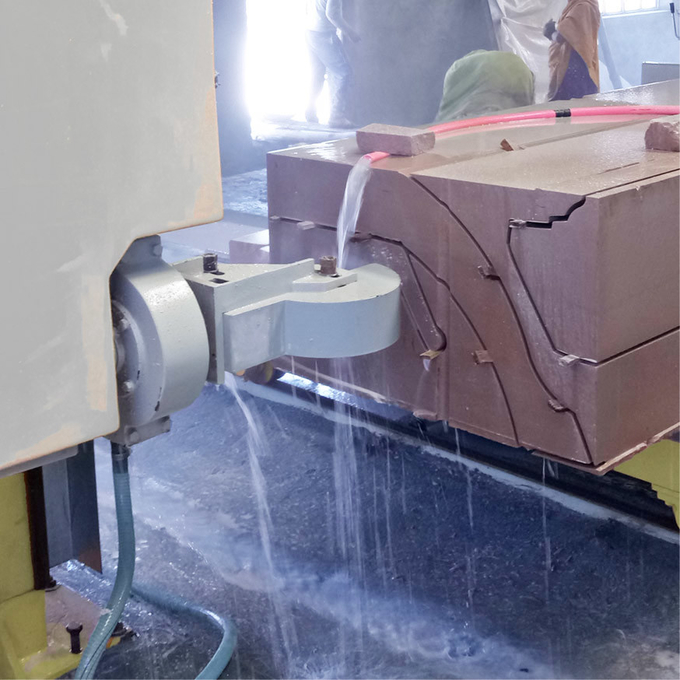

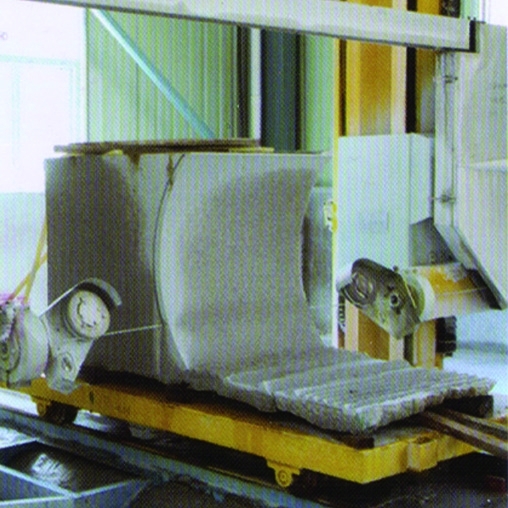

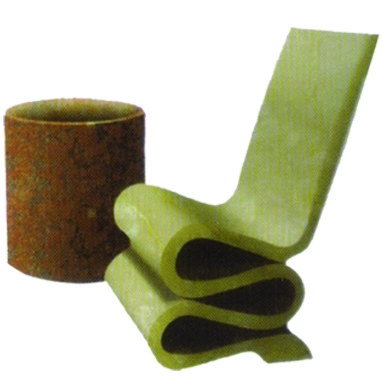

CNC-2500 adopts CNC control, four-axis linkage, can process different specification of stones for complex shape, such as circular arc board, solid and hollow column, Roman column, large-scale solid line, letter and so on. This machine has an independent guide rail on each of the four columns.The flywheel elevates and lowers along these guide rails. The flywheel works stably, which improves the service life of the wire saw. Flywheel tension has a stable, constant stretch mode to enhance cutting accuracy.CNC system makes the man-machine interface easy and stable. Diverse, complex, 2 dimensional surfaces can be processed.Guide wheel uses a four-layer sealed protection system to greatly improve cutting accuracy.

Feature

1.The linear cutting speed can be adjusted according to different cutting requirements. The protective cover is water proof and highly durable.

2. Equipped with CNC system, which makes the man-manchine interface easy and flexible.

3. Flywheels tension has a stable, constant stretch mode to enhance cutting accuracy.

4.Cutting speed is adjustable according to different requirements.

5.High efficiency, the slates it processed are of exact size, and the margin is flattened and sleek.

Technical Parameters

Appellation	DTSJ-1500	DTSJ-1800	DTSJ-2200
Saw diameter	Φ8-Φ11mm	Φ8-Φ11mm	Φ8-Φ11mm
Saw gross length	16500mm	18500mm	21350mm
Max. cutting size(L*W*H)	3000*2000*1500mm	3000*2600*1800mm	4000*3000*2100
Production efficiency (m2/h)	1-2( Marble) 0.5-1( Granite)	1-2( Marble) 0.5-1( Granite)	1-2( Marble) 0.5-1( Granite)
Dimension(L*W*H)	7500*6000*3800mm	8800*6800*4800mm	9800*7000*5200mm
Wire lifting stroke	1600mm	1900mm	2200mm
line speed	0-40m/s	0-40m/s	0-40m/s
Total power	15.09kw	15.09kw	20.09kw
Weight	7500kg	9500kg	15000kg
Rotary of the working table	360°	360°	360°
