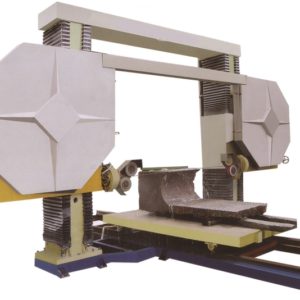

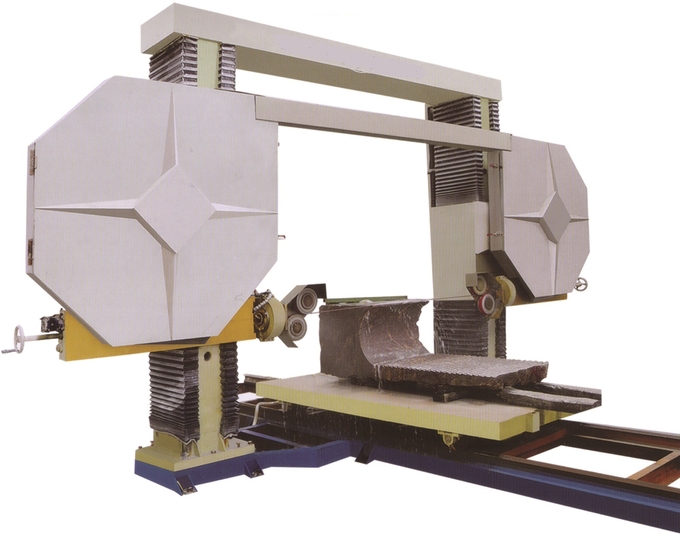

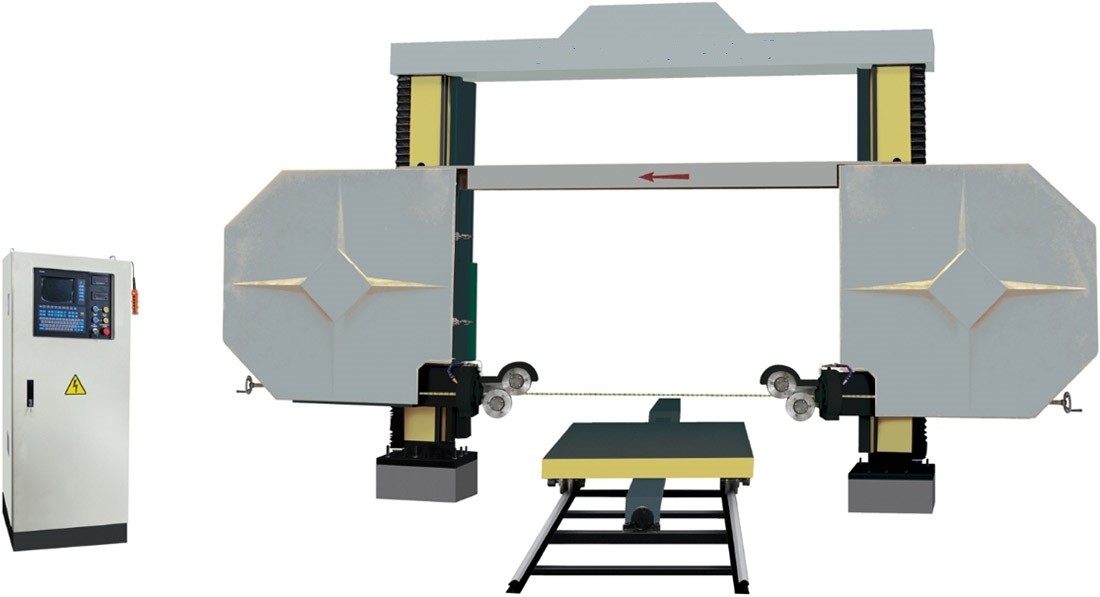

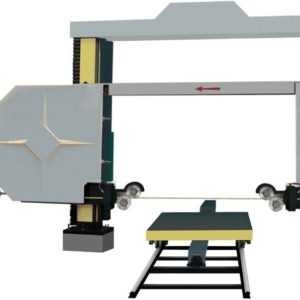

Stone Wire Saw Machine

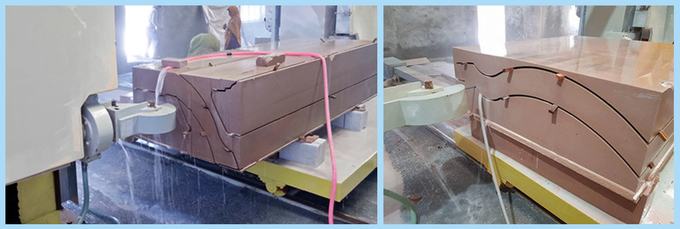

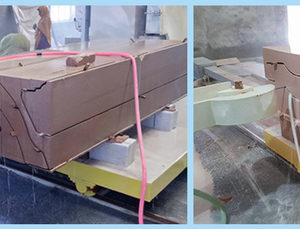

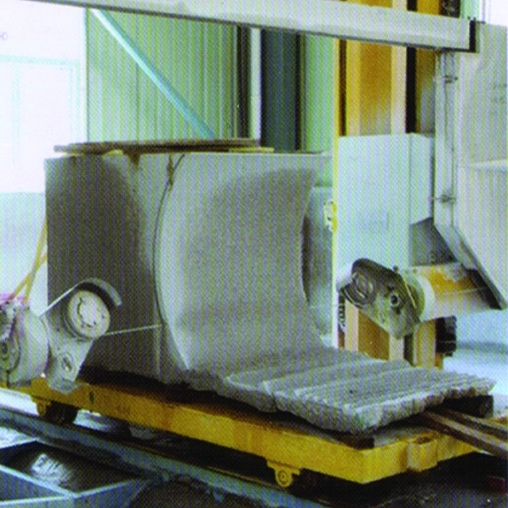

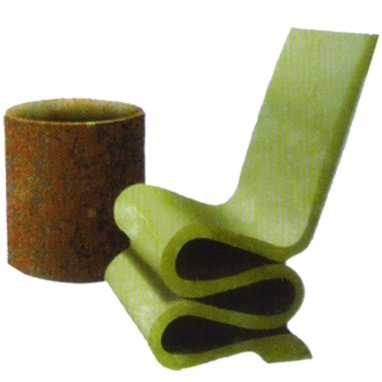

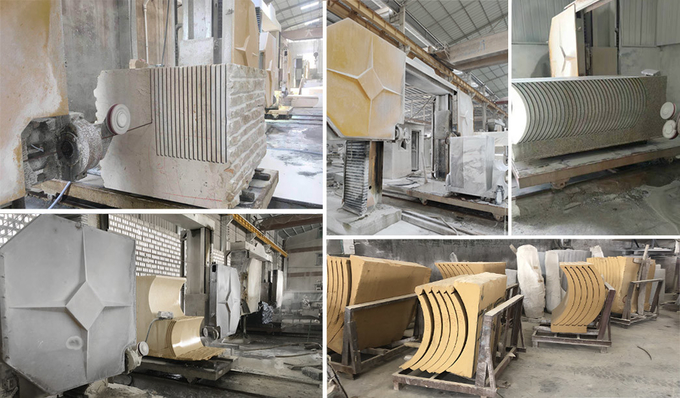

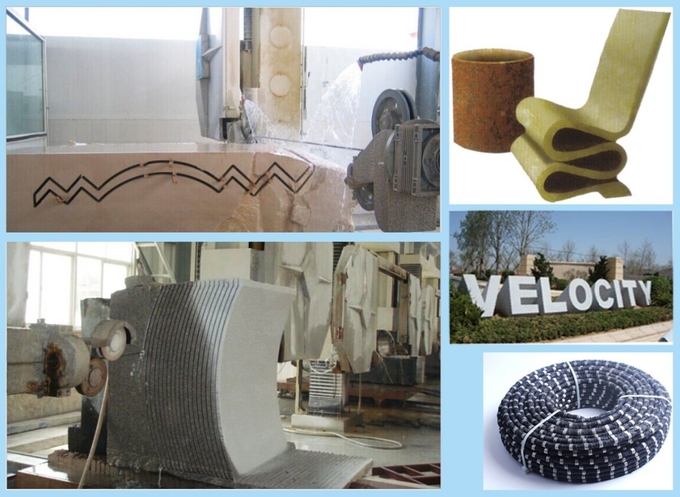

Stone Wire Saw Machine adopts CNC control, four-axis linkage, can process different specification of stones for complex shape, such as circular arc board, solid and hollow column, Roman column, large-scale solid line, letter and so on.

Main Features

1) Equipped with CNC system, which makes the man-manchine interface easy and flexible.

2) Flywheels tension has a stable, constant stretch mode to enhance cutting accuracy.

3) Diverse, complex, 2-dimensional surfaces can be processed

4) Cutting speed is adjustable according to different requirements.

5) High efficiency, the slates it processed are of exact size, and the margin is flattened and sleek.

Inquiry Now

Stone Wire Saw Machine adopts CNC control, four-axis linkage, can process different specification of stones for complex shape, such as circular arc board, solid and hollow column, Roman column, large-scale solid line, letter and so on.

Main Features

1) Equipped with CNC system, which makes the man-manchine interface easy and flexible.

2) Flywheels tension has a stable, constant stretch mode to enhance cutting accuracy.

3) Diverse, complex, 2-dimensional surfaces can be processed

4) Cutting speed is adjustable according to different requirements.

5) High efficiency, the slates it processed are of exact size, and the margin is flattened and sleek.

Technical Data
Configuration
Diameter of wire
mm
8-10
Length of wire
mm
15100
Power of main motor
kw
11
Main Performance Parameters
Max. processing size
mm
2000 x 2000 x 1500
Cuttting linear speed
m/s
25-45
Water consumption
m3/h
2
Measurement
Gross weight
kg
6800
Dimensions (L x W x H)
mm
6000 x7000 x 4000
