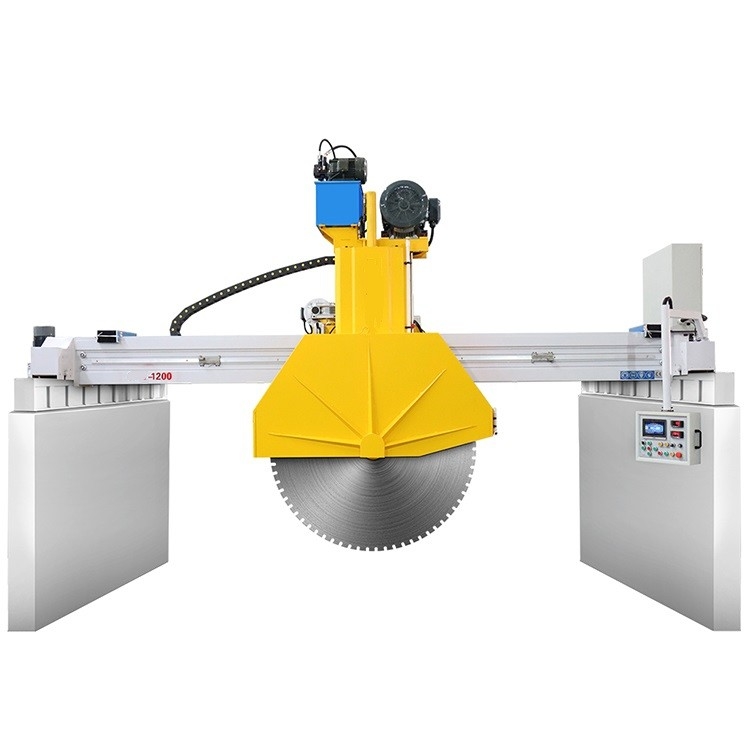

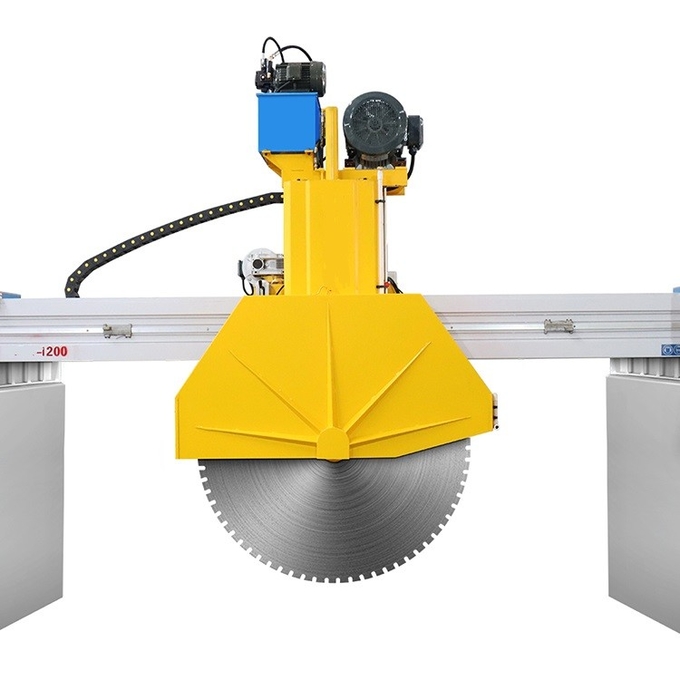

QZQ-900/1200 Bridge cutting machine
QZQ-900/1200 Bridge slicing machine fully handled by business computer, this machine is stable and reliable. It could work automatically by program, and manual procedure is available too. This is and ideal equipment for slicing small block and curbstone, especially for tombstone and batiment.

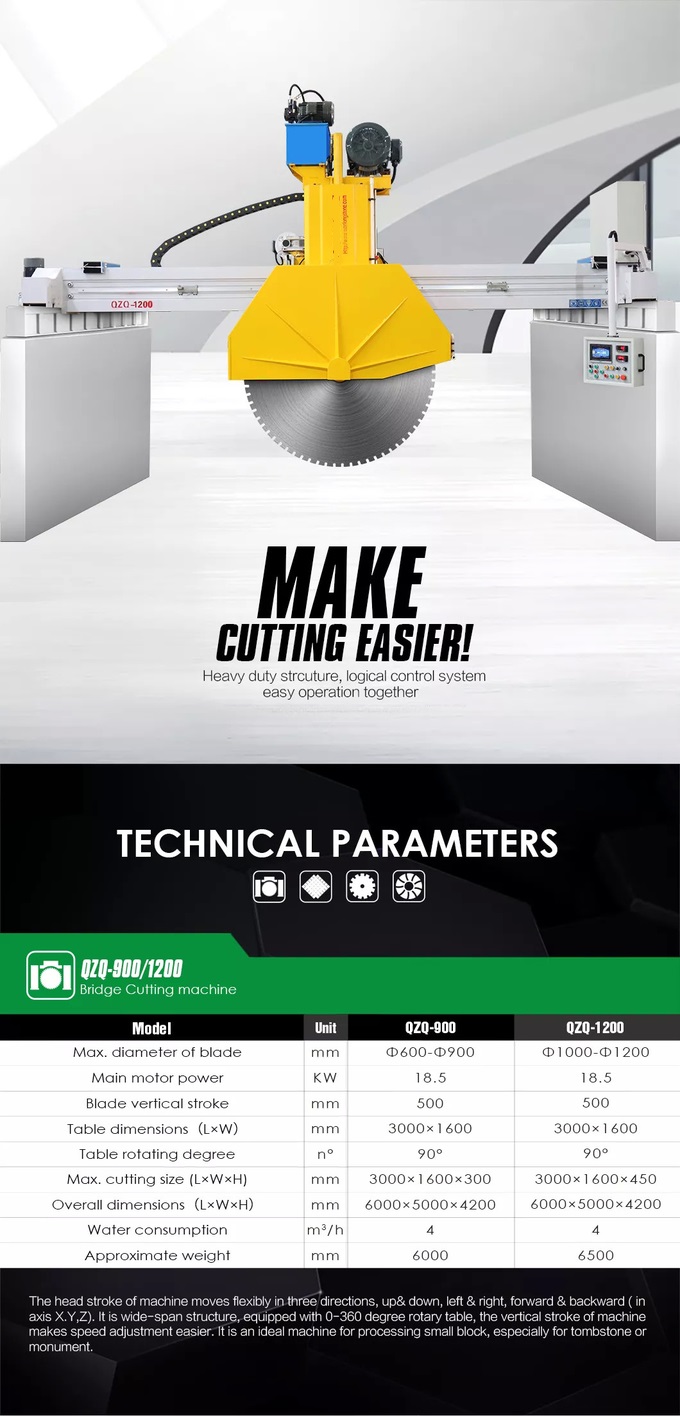

| Technical Parameters | |||
| Model | Unit | QZQ-900 | QZQ-1200 |
| Max. diameter of blade | mm | Φ600-φ900 | Φ1000-φ1200 |
| Main motor power | KW | 18.5 | 18.5 |
| Blade vertical stroke | mm | 500 | 500 |
| Table dimension(L*W*H) | mm | 3000×1600 | 3000×1600 |
| Table rotating degree | n° | 90° | 90° |
| Max. cutting size(L*W*H) | mm | 3000x1600x300 | 3000x1600x450 |
| Overall dimension(L*W*H) | mm | 6000x5000x4200 | 6000x5000x4200 |
| Water consumption | m3/h | 5 | 4 |
| Approximate weight | kg | 6000 | 6500 |
