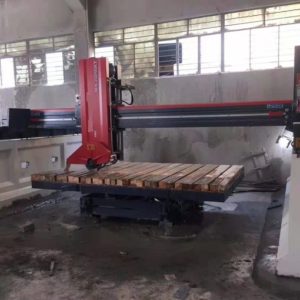

400mm Blade Bridge Saw Machine

400mm blade Bridge Saw MODEL: MCQJ-400/600/700(Sliding Plate Type/Lineal Guild model)
Usage: The machine uses PLC system and human-machine interface, combined with Ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, main spare parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy-operating to suit granite and marble with high value and big size.
Our bridge cutting machines can be divided into MCQJ-PLC400,MCQJ-PLC600 and MCQJ-PLC700 .

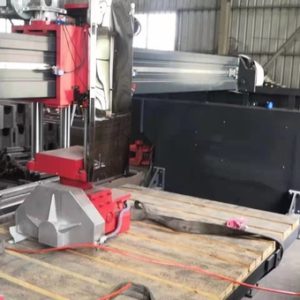

MCQJ-PLC700 machine’s cutting head can be rotated 45 degree to process beveled stone slabs.
Advantage: Infrared bridge cutting machine will provide high cutting accuracy and efficiency.

Inquiry Now
Category: Tags: , ,

400mm blade Bridge Saw MODEL: MCQJ-400/600/700(Sliding Plate Type/Lineal Guild model)
Usage: The machine uses PLC system and human-machine interface, combined with Ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, main spare parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy-operating to suit granite and marble with high value and big size.
Our bridge cutting machines can be divided into MCQJ-PLC400,MCQJ-PLC600 and MCQJ-PLC700 .
MCQJ-PLC700 machine’s cutting head can be rotated 45 degree to process beveled stone slabs.
Advantage: Infrared bridge cutting machine will provide high cutting accuracy and efficiency.
Machine Features:
This bridge cutting machine is used for various granite marble slabs processing. It adopts Programmer Logic Controller, fine frequency converter, laser infrared checking device, and Computer automatic control to guarantee the most precise and stable cutting. Different models (HWX-400, 600 and 800) are available to meet user’s different applications and bugets.

Accessory product:

With almost 30 years’ experience in diamond tools, high quality diamond blades for cutting granite sandstone marble limestone etc. could be provided with competitive prices. Real overall solution and one stop service!!

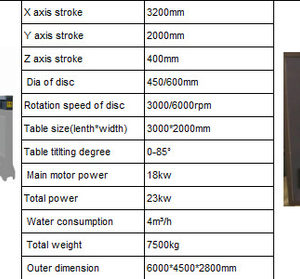

Technical Parameters:

Model Unit MCQJ-400 MCQJ-600 MCQJ-800
Max. diameter of blade mm ø350 – ø400 ø400 – ø600 ø400 – ø800
Main motor power kw 15 15 18.5
Worktable dimensions (L*W) mm 3200*2000 3200*2000 3200*2000
Worktable tilting degree n° 0-85° 0-85° 0-85°
Worktable rotating degree n° 90°/360° 90°/360° 90°/360°
Max. processing size (L*W*H) mm 3200*2000*80 3200*2000*180 3200*2000*280
Overall dimensions (L*W*H) mm 6000*5000*2800 6000*5000*2800 6000*5000*2800
Water consumption m³/h 4 4 4
Approximate Weight kg 4800 5200 5500
