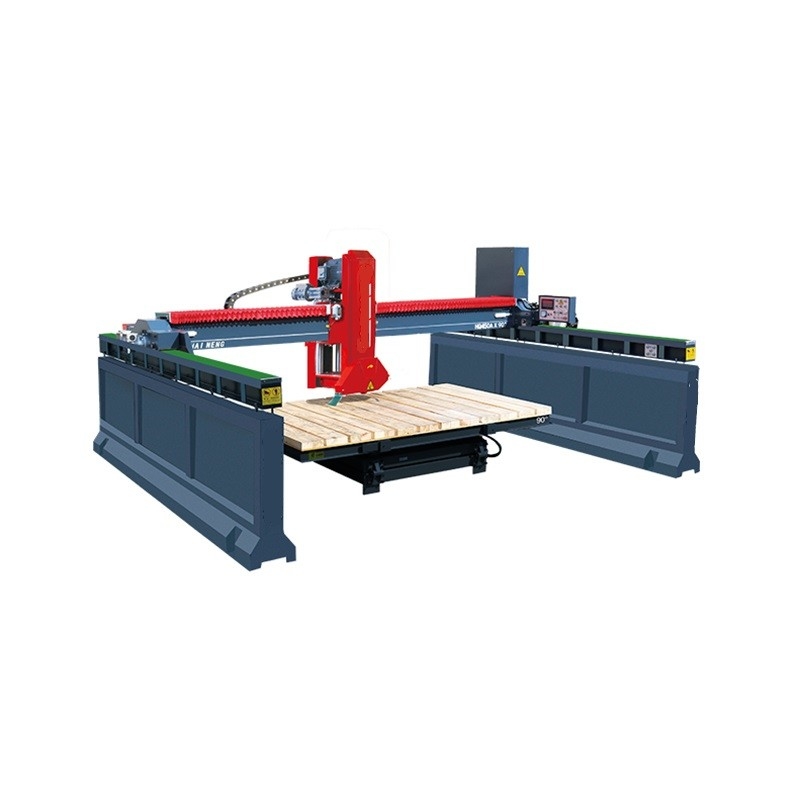

Marble Bridge Saw Machine
Marble Bridge Saw Machine - Image 2
Marble Bridge Saw Machine - Image 3
Marble Bridge Saw Machine - Image 4
Marble Bridge Saw Machine - Image 5
Marble Bridge Saw Machine - Image 6
Marble Bridge Saw Machine - Image 7
Marble Bridge Saw Machine - Image 8
Marble Bridge Saw Machine - Image 9
Marble Bridge Saw Machine - Image 10

Marble Bridge Saw Machine

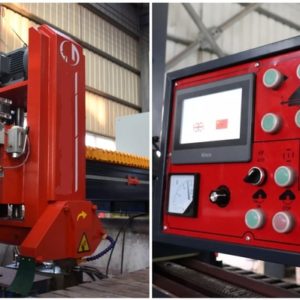

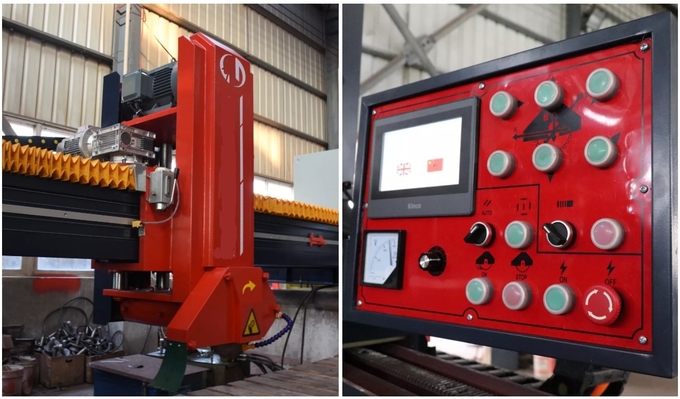

Marble Bridge Saw Machine adopts microcomputer control, touch-type operation pannel, and man-machine dialogue is flexible.
The main control components are all international famous brand components, the cross-beam adopts oil-immersed double V-shaped track, the transverse pass adopts stepless speed regulation, and the longitudinal splitting mechanism adopts double mountain-shaped guide rail combined with high-precision encoder counting to ensure the machine working precision. Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board. Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting Rectangle, octagon, arc and prefect circle.

Inquiry Now
Category: Tags: , ,

Marble Bridge Saw Machine adopts microcomputer control, touch-type operation pannel, and man-machine dialogue is flexible.
The main control components are all international famous brand components, the cross-beam adopts oil-immersed double V-shaped track, the transverse pass adopts stepless speed regulation, and the longitudinal splitting mechanism adopts double mountain-shaped guide rail combined with high-precision encoder counting to ensure the machine working precision. Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board. Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting Rectangle, octagon, arc and prefect circle.

Type
Unit
MCQJ-450A
MCQJ-600A
MCQJ-700A
MCQJ-800A
Max.working dimensions
(L×W×H)
mm
3200×2000×100
3200×2000×180
3200×2000×230
3200×2000×280
Max. diameter of blade
mm
Φ350-Φ450
Φ350-Φ600
Φ350-Φ700
Φ500-Φ800
Max.vertical stroke
mm
230
380
480
580
Table dimensions
(L×W)
mm
3200×2000
3200×2000
3200×2000
3200×2000
Table tilting degree
n°
0-85
0-85
0-85
0-85
Table rotating degree
n°
0-90/360
0-90/360
0-90/360
0-90/360
Main motor power
kw
15
18.5
18.5
18.5
Total power
kw
21
24.5
24.5
24.5
Water consumption
m³/h
4
4
4.5
4.5
Overall dimensions
(L×W×H)
mm
6000×4800×3000
6000×4800×3200
6000×5000×3400
6000×5000×3600
Gross weight
kg
5400
5600
5800
6000
