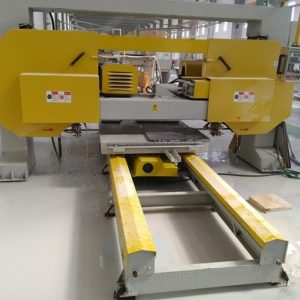

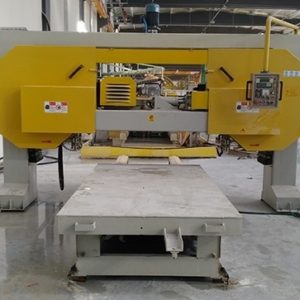

Stone BandSaw Slicing Machine

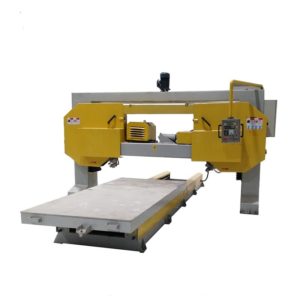

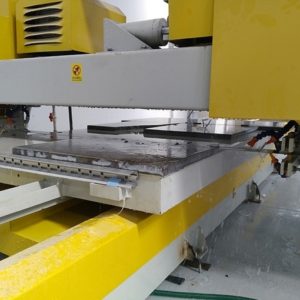

Stone BandSaw Slicing Machine - Image 2
Stone BandSaw Slicing Machine - Image 3
Stone BandSaw Slicing Machine - Image 4

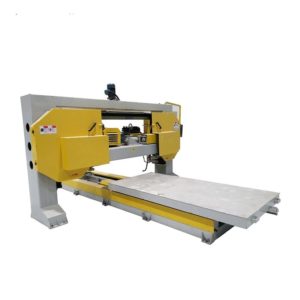

Stone BandSaw Slicing Machine - Image 5

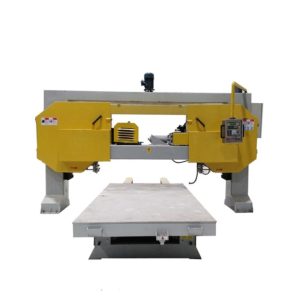

Stone BandSaw Slicing Machine - Image 6

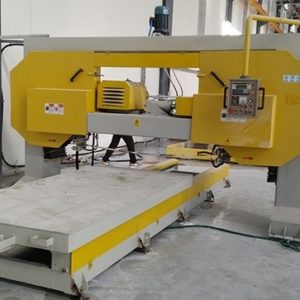

Stone BandSaw Slicing Machine - Image 7
Stone BandSaw Slicing Machine - Image 8
Stone BandSaw Slicing Machine - Image 9
Stone BandSaw Slicing Machine - Image 10
Stone BandSaw Slicing Machine - Image 11
Stone BandSaw Slicing Machine - Image 12
Stone BandSaw Slicing Machine - Image 13

Stone BandSaw Slicing Machine

Stone BandSaw Slicing Machine
(1). It is equipped with medium framework and catch slab framework, which can control the diagonals and size error in the regular limit effectively.
(2). The electric appliance is controlled by PLC with high stability.
(3). It is adopted the latest water-proof cover with effective anti-fog and anti-water functions. It is also convenient for field management.
(4). In belt driving way, it is adopted frequency conversion motor. The speed can be adjusted and the length is unlimited.

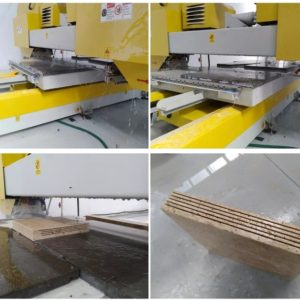

(5). The slab thickness between 80mm to 2mm can be cut.
(6). 3.2m2 to 5 m2 stones with 600mm width can be cut in an hour.
(7). The cutting edge is smooth and the precision is high, within the degree of ±0.02mm.

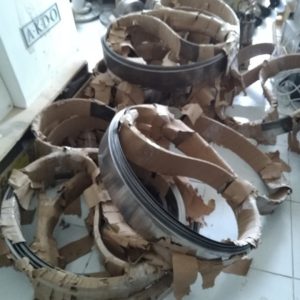

(8). The saw blade can cut 250 m2 stones.

Inquiry Now
Category: Tags: , ,

Stone BandSaw Slicing Machine
(1). It is equipped with medium framework and catch slab framework, which can control the diagonals and size error in the regular limit effectively.
(2). The electric appliance is controlled by PLC with high stability.
(3). It is adopted the latest water-proof cover with effective anti-fog and anti-water functions. It is also convenient for field management.
(4). In belt driving way, it is adopted frequency conversion motor. The speed can be adjusted and the length is unlimited.
(5). The slab thickness between 80mm to 2mm can be cut.
(6). 3.2m2 to 5 m2 stones with 600mm width can be cut in an hour.
(7). The cutting edge is smooth and the precision is high, within the degree of ±0.02mm.
(8). The saw blade can cut 250 m2 stones.

Technical parameters

Model Unit 1200 1500 1500
(two function)		 2000
Max. cutting width(L*W*H) mm 1260 1560 1560 2060
Travel height mm 80 80 80 80
Main motor power kw 7.5 7.5 7.5 7.5
Output M2h 2-3m2 3-5m2 2-3m2 2-3m2
Total power kw 8.5 9 9 9.5
Max.cutting thickness mm 160 160 160 160
Thickness of saw mm 6-7mm 2mm 2mm(marble)
6-7mm(granite)		 6-7mm
Water consumption M³h 2.5 1.5 2 3
Dimensions(L*W*H) mm 4500*3600*2200 4500*4100*2200 4500*4100*2200 5800*4400*2200
Approximate weight kg 2500 2600 2800 3200
